DESCRIPTION
TEX 150 PE Pneumatic Breaker Spare Parts
Vikay is a worldwide distributor of TEX 150 PE Pneumatic Breaker Spare Parts suitable for Atlas Copco TEX 150 PE Pneumatic Breaker from India.

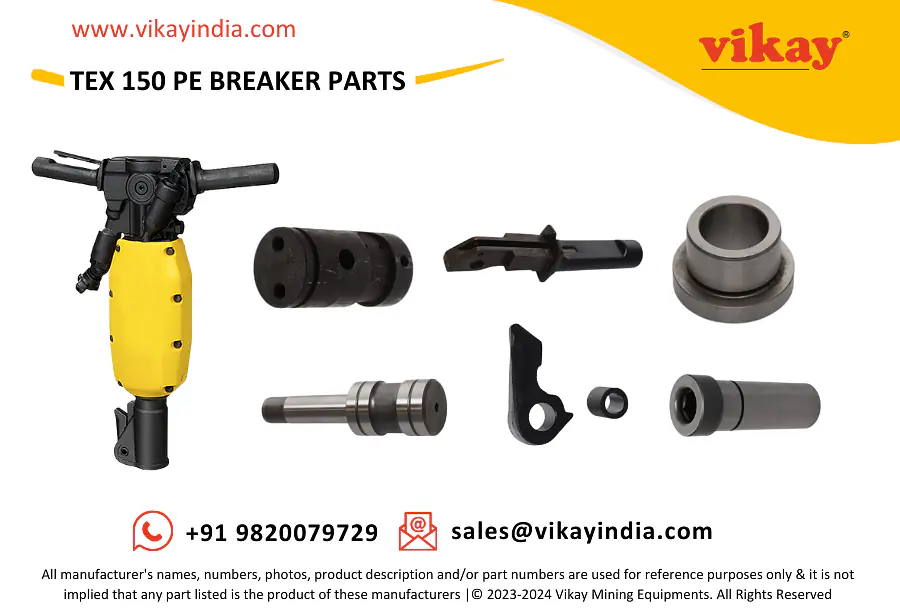

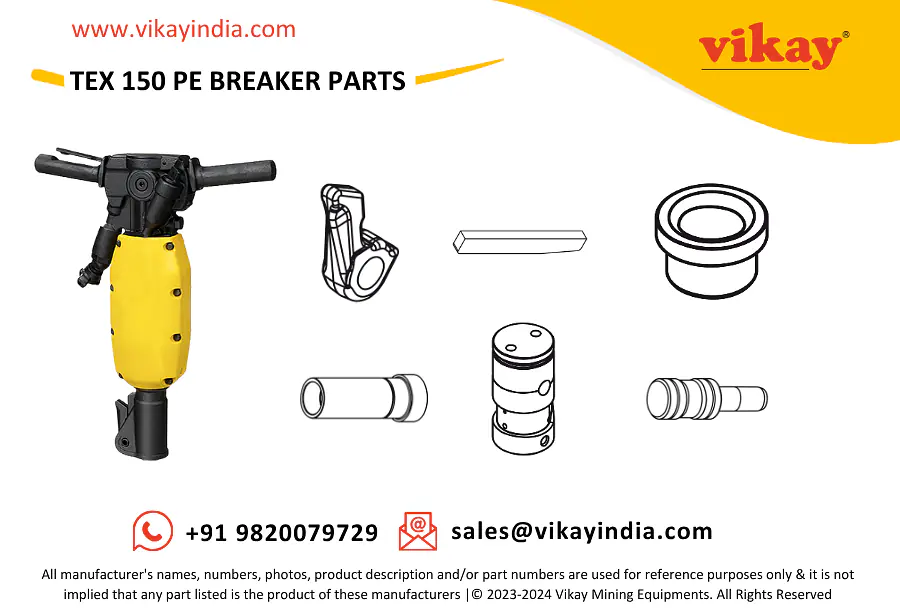

TEX 150 PE Atlas Copco Pneumatic Breaker Parts
| No. | Description | Part number | Quantity |
| 1 | Cylinder | 3310153300 | 1 |
| 2(3-4) | Tool retainer, complete | 3310089080 | 1 |
| 3 | Tool retainer | - | 1 |
| 4 | Bushing | 3310089100 | 1 |
| 5 | Spring pin (Ø16 x 50 mm) | 108169105 | 1 |
| 6 | Plunger | 3310089300 | 1 |
| 7 | Spring | 3310089400 | 1 |
| 8 | Protection plug | 3310150800 | 1 |
| 9 | Chuck (Hexagon 22 x 82.5 mm Hexagon 7⁄8 x 31⁄4 in.) | 3310150700 | 1 |
| 10 | Intermediate part | 3310150600 | 1 |
| 11 | Piston | 3310150500 | 1 |
| 9 | Chuck (Hexagon 25 x 108 mm Hexagon 1 x 41⁄4 in.) | 3310149600 | 1 |
| 10 | Intermediate part | 3310149700 | 1 |
| 11 | Piston | 3310149500 | 1 |
| 12 | Dosing feeder | 3310129500 | 1 |
| 13 | O-ring (Ø22.2 x 3 mm (70 Shore) Ø0.87 x 0.12 in.) | 663212600 | 1 |
| 14(15-16) | Oil plug, complete | 3310146280 | 1 |
| 15 | Oil plug | - | 1 |
| 16 | O-ring (Ø22.2 x 3 mm (70 Shore) Ø0.87 x 0.12 in.) | 663212600 | 1 |
| 17 | Lock wire | 3310153400 | 1 |
| 18 | Swivel nut | 3310104400 | 1 |
| 19 | Lock washer | 3310105900 | 1 |
| 20 | Swivel | 3310153600 | 1 |
| 21 | Inlet valve | 3310121100 | 1 |
| 22 | Valve stem | 3310149200 | 1 |
| 23 | Spring | 3310108300 | 2 |
| 24 | Handle | 3310145880 | 1 |
| 25 | Trigger | 3310146080 | 1 |
| 26 | Cover | 3310147800 | 1 |
| 27 | Label | 3310151602 | 1 |
| 28 | Spring pin (Ø6 x 20 mm DIN 1481) | 108132400 | 1 |
| 29 | O-ring (Ø36.2 x 3 mm (70 Shore) Ø1.43 x 0.12 in.) | 663213200 | 1 |
| 30 | Handle | 3310145980 | 1 |
| 31 | Valve housing | 3310149400 | 1 |
| 32(33-34) | Screw, complete | 3310147680 | 1 |
| 33 | Screw | - | 1 |
| 34 | O-ring (Ø13.3 x 2.4 mm (70 Shore) Ø0.52 x 0.09 in.) | 663212000 | 1 |
| 35 | Main valve | 3310117300 | 1 |
| 36 | Valve cover | 3310124500 | 1 |
| 37 | Sound power label | - | 1 |
| 38(39-45) | Silencer, complete | 3310151282 | 1 |
| 39 | Front | - | 1 |
| 40 | Rear | - | 1 |
| 41 | Flange nut | 9232020750 | 8 |
| 42 | Flange screw | 147300032 | 8 |
| 43 | Separation wall | 3310151800 | 1 |
| 44 | Separation wall | 3310151801 | 1 |
| 45 | O-ring (Ø64.2 x 5.7 mm Ø2.53 x 0.22 in.) | 663211413 | 2 |
| 46 | Spring pin (Ø6 x 40 mm DIN 1481) | 108133200 | 1 |
| 47 | Guide shaft | 3310147901 | 1 |
| 48 | Screw | 244414400 | 2 |
| 49 | Data plate | - | 1 |
| 50 | Flange screw (M10 x 40 mm) | 147300018 | 1 |
| 51 | Label | 690135600 | 1 |
| 52 | Spring | 3310153700 | 1 |
| 53 | Buffer | 3310146115 | 2 |
| 54 | Spring pin (Ø6 x 16 mm DIN 1481) | 108132200 | 1 |
| 55 | Safety label | 3310160200 | 1 |
Working tools
ISO standard hexagon 22 x 82.5 mm (7⁄8 x 31⁄4 in.)
| No. | Description | W (mm) | L (mm) | LT (mm) | Wt (kg) | Part number |
| 1 | Moil point | - | 380 | 475 | 1.6 | 3083324200 |
| - | 1000 | 1095 | 3.6 | 3083324300 | ||
| 2 | Narrow chisel | - | 380 | 475 | 1.6 | 3083324400 |
| - | 1000 | 1095 | 3.6 | 3083324500 | ||
| 3 | Wide chisel | 75 | 380 | 475 | 2.2 | 3083324600 |
| 4 | Asphalt cutter | 125 | 380 | 475 | 3.0 | 3083306900 |
| 5 | Digging chisel | 75 | 450 | 545 | 3.3 | 3083324700 |
| 6 | Digging spade | 120 | 400 | 495 | 3.8 | 3083324800 |
| 7 | Clay spade | 125 | 430 | 525 | 3.7 | 3083324900 |
| 8 | Frost wedge | 35 | 380 | 475 | 2.3 | 3083325000 |
| 9 | Shaft for tamping pad | - | 310 | 405 | 1.7 | 3083325100 |
| 10 | Tamping pad, round | Ø175 | - | - | 7.6 | 3083325210 |
| 11 | Tamping pad, square | 175 | - | - | 6.1 | 3083323900 |
| 12 | Driver pad, round | Ø65 | - | - | 1.9 | 3317806012 |
| Ø100 | - | - | 2.6 | 9245281790 | ||
| 14 | Posthole pad | 40 | - | - | 2.7 | 9245282230 |
ISO standard hexagon 25 x 108 mm (1 x 4¼ in.)
| No. | Description | W (mm) | L (mm) | LT (mm) | Wt (kg) | Part number |
| 1 | Moil point | - | 380 | 500 | 2.0 | 3083325300 |
| 2 | Narrow chisel | - | 380 | 500 | 2.1 | 3083325400 |
| 3 | Wide chisel | 75 | 380 | 500 | 2.3 | 3083325500 |
| 5 | Digging chisel | 75 | 380 | 500 | 3.1 | 3083325600 |
| 6 | Digging spade | 120 | 380 | 500 | 4.2 | 3083325700 |
| 7 | Clay spade | 125 | 430 | 550 | 3.8 | 3083303300 |
| 8 | Wedge chisel | 35 | 380 | 500 | 2.5 | 3083325800 |
| 9 | Shaft for tamping pad | - | 280 | 400 | 2.1 | 3083325900 |
| 10 | Tamping pad, round | ø175 | - | - | 7.6 | 3083325210 |
| 11 | Tamping pad, square | 175 | - | - | 6.1 | 3083323900 |
| 12 | Driver pad, round | ø100 ø65 | - - | - - | 2.6 1.9 | 9245281790 |
| 3371806012 | ||||||
| 14 | Posthole pad | 40 | - | - | 2.7 | 9245282230 |
US standard hexagon 7⁄8 x 31⁄4 in. (22 x 82.5 mm)
| No. | Description | W (in.) | L (in.) | LT (in.) | Wt (lb) | Part number |
| 1 | Moil point | - | 14 | 18 | 3.3 | 3083405000 |
| - | 18 | 21 | 4.0 | 3083405010 | ||
| - | 24 | 28 | 5.1 | 3083405020 | ||
| - | 36 | 40 | 7.3 | 3083405030 | ||
| 2 | Narrow chisel | - | 14 | 18 | 3.5 | 3083330300 |
| - | 24 | 28 | 5.1 | 3083330400 | ||
| - | 18 | 21 | 4.0 | 3083405110 | ||
| - | 36 | 40 | 7.3 | 3083405130 | ||
| 3 | Wide chisel | 3 | 14 | 18 | 4.6 | 3083330500 |
| 3 | 18 | 21 | 4.4 | 3083405210 | ||
| 3 | 24 | 28 | 5.5 | 3083405220 | ||
| 3 | 36 | 40 | 7.7 | 3083405230 | ||
| 4 | Asphalt cutter | 5 | 12 | 16 | 6.2 | 3083405300 |
| 5 | Digging chisel | 3 | 14 | 18 | 7.1 | 3083330600 |
| 6 | Digging spade | 5 | 13 | 17 | 8.6 | 3083330700 |
| 7 | Clay spade | 5 | 17 | 21 | 8.4 | 3083330800 |
| 8 | Frost wedge | 1 | 15 | 19 | 5.5 | 3083405700 |
| 9 | Shaft for tamping pad | - | 8 | 12 | 2.9 | 3083405800 |
| 10 | Tamping pad, round | Ø7 | - | - | 16.8 | 3083325210 |
| 11 | Tamping pad, square | 7 | - | - | 13.4 | 3083323900 |
| 12 | Driver pad, round | Ø4 | - | - | 5.7 | 9245281790 |
| Ø3 | - | - | 4.2 | 3371806012 | ||
| 14 | Posthole pad | 2 | - | - | 6.0 | 9245282230 |
US standard hexagon 1 x 4¼ in. (25 x 108 mm)
| No. | Description | W (in.) | L (in.) | LT (in.) | Wt (lb) | Part number |
| 1 | Moil point | - | 15 | 20 | 4.6 | 3083403000 |
| - | 18 | 22 | 5.3 | 3083403010 | ||
| - | 24 | 29 | 6.8 | 3083403020 | ||
| - | 36 | 41 | 9.7 | 3083403030 | ||
| 2 | Narrow chisel | - | 15 | 20 | 4.6 | 3083330900 |
| - | 18 | 22 | 5.3 | 3083403110 | ||
| - | 24 | 29 | 6.8 | 3083403120 | ||
| - | 36 | 41 | 9.7 | 3083403130 | ||
| 3 | Wide chisel | 3 | 15 | 20 | 5.3 | 3083331000 |
| 3 | 18 | 22 | 5.7 | 3083403200 | ||
| 3 | 24 | 29 | 7.3 | 3083403210 | ||
| 3 | 36 | 41 | 10.3 | 3083403220 | ||
| 4 | Asphalt cutter | 41⁄2 5 | 12 13 | 163⁄4 173⁄4 | 7.1 6.4 | 3083403400 |
| 3083403300 | ||||||
| 5 | Digging chisel | 3 | 15 | 20 | 7.0 | 3083331100 |
| 6 | Digging spade | 43⁄4 | 13 | 173⁄4 | 8.8 | 3083331200 |
| 7 | Clay spade | 4 | 16 | 21 | 6.2 | 3083403510 |
| 5 | 16 | 21 | 8.2 | 3083403500 | ||
| 8 | Wedge chisel | 2 | 15 | 20 | 10.4 | 3083331300 |
| 9 | Shaft for tamping pad | - | 11 | 16 | 4.2 | 3083403700 |
| 10 | Tamping pad, round | ø7 | - | - | 16.8 | 3083325210 |
| 11 | Tamping pad, square | 7 | - | - | 13.5 | 3083323900 |
| 12 | Driver pad, round | ø4 | - | - | 5.7 | 9245281790 |
| ø21⁄2 | - | - | 4.2 | 3371806012 | ||
| 14 | Posthole pad | 11⁄2 | - | - | 6.0 | 9245282230 |
Claw couplings
| No. | Description | Part number | Quantity |
| 1(2-4) | Claw coupling with strainer, complete | 9000030601 | 1 |
| 2 | Claw coupling (Standard G3⁄4 in.) | - | 1 |
| 3 | Strainer | 9000000010 | 1 |
| 4 | Seal | 9000000000 | 1 |
| 5(6-7) | Claw coupling, complete | 9000030600 | 1 |
| 6 | Claw coupling (Standard G3⁄4 in.) | - | 1 |
| 7 | Seal | 9000000000 | 1 |
| 8(9-10) | Claw coupling, complete | 9001000506 | 1 |
| 9 | Claw coupling (US-universal 3⁄4 in.) | - | 1 |
| 10 | Seal | 9001000515 | 1 |
