DESCRIPTION
TEX 21 PE Pneumatic Breaker Spare Parts
Vikay is a worldwide distributor of TEX 21 PE Pneumatic Breaker Spare Parts suitable for Atlas Copco TEX 21 PE Pneumatic Breaker from India.

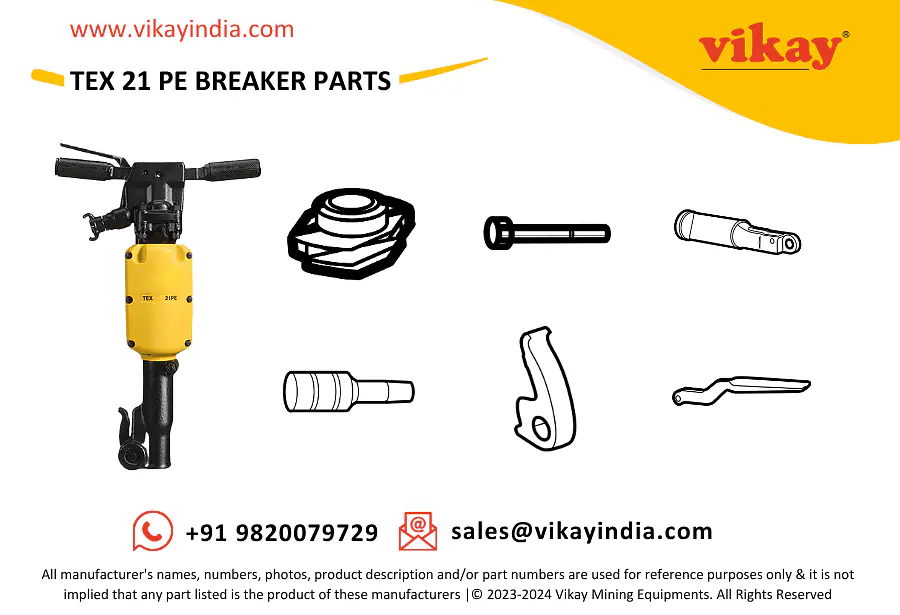

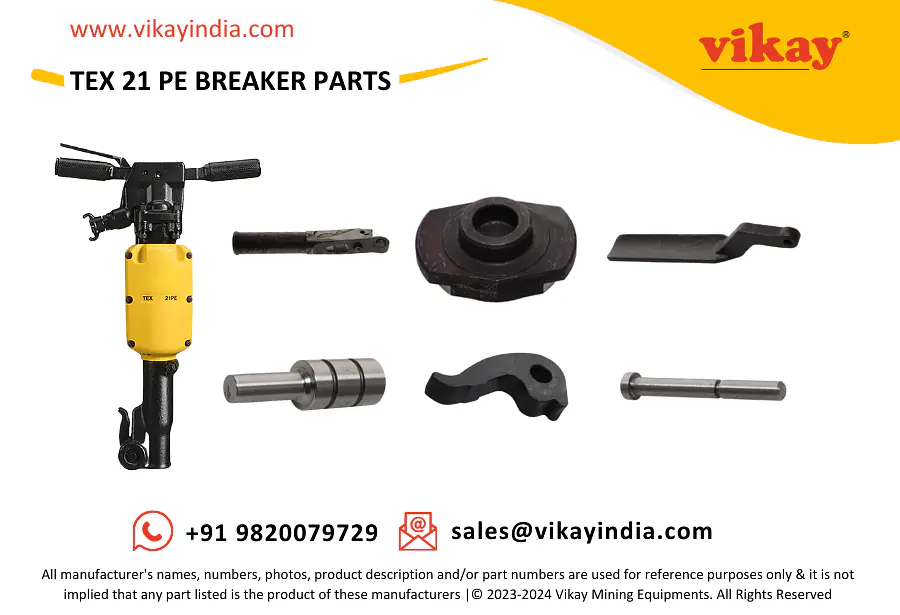

TEX 21 PE Atlas Copco Pneumatic Breaker Parts
| No. | Description | Part number | Quantity |
| 1(2-3) | Back head, complete | 3363084341 | 1 |
| 2 | Back head | - | 1 |
| 3 | Bushing | 3360312661 | 1 |
| 4 | Valve stem | 3363084346 | 1 |
| 5 | O-ring | 663913600 | 1 |
| 6 | Handle | 3363084342 | 2 |
| 7 | Trigger | 3363084344 | 1 |
| 8 | Spring pin | 108169176 | 1 |
| 9 | Spring pin | 108132800 | 1 |
| 10 | Cover | 3363084350 | 1 |
| 11 | Sleeve | 3360980268 | 2 |
| 12 | Spring | 3363084352 | 1 |
| 13 | Spring | 3363084354 | 2 |
| 14 | Spring pin | 108130600 | 2 |
| 15 | Nipple | 9000034300 | 1 |
| 16 | Valve housing | 3360164647 | 1 |
| 17 | Main valve | 3360164684 | 1 |
| 18 | Cover | 3360164633 | 1 |
| 19 | Cylinder | 3360164637 | 1 |
| 20 | Piston | 3360164638 | 1 |
| 21(22-30) | Front head, complete (Round 25 x 75 mm) | 3360070592 | 1 |
| 22 | Front head (Round 25 x 75 mm) | 3360164636 | 1 |
| 21(22-30) | Front head, complete (Hexagon 25 x 108 mm) | 3360070584 | 1 |
| 22 | Front head (Hexagon 25 x 108 mm) | 3360312559 | 1 |
| 23 | Tool retainer | 3360994946 | 1 |
| 24 | Plunger | 3360312525 | 1 |
| 25 | Spring | 3360164037 | 1 |
| 26 | Pin | 3360312523 | 1 |
| 27 | Bushing, right | 3360164690 | 1 |
| 28 | Bushing, left | 3360164689 | 1 |
| 29 | Screw | 211516186 | 1 |
| 30 | Lock nut | 292140800 | 1 |
| 31 | Tool chuck (Round 25 x 75 mm) | 3360164597 | 1 |
| 31 | Tool chuck (Hexagon 25 x 108 mm) | 3360164649 | 1 |
| 32 | O-ring | 663211219 | 1 |
| 33 | Screw | 211516185 | 4 |
| 34 | Nut | 268410800 | 4 |
| 35 | Disk spring | 384343700 | 2 |
| 36 | Ball | 3310138000 | 1 |
| 37 | Lock washer | 3315019508 | 8 |
| 38(39-40) | Silencer, complete | 3310134400 | 1 |
| 39 | Silencer (Front) | - | 1 |
| 40 | Silencer (Rear) | - | 1 |
| 41 | O-ring | 663211514 | 1 |
| 42 | Separation wall | 3310138200 | 1 |
| 43 | Flange screw | 147197605 | 6 |
| 44 | Flange nut | 9232020750 | 6 |
| 45 | Safety label | 3310160200 | 1 |
| 46 | Noise level label | - | 1 |
| 47 | O-ring | 663211595 | 1 |
| 48 | Data plate | - | 1 |
| 49 | Screw | 244414400 | 2 |
Working tools
ISO standard hexagon 25 x 108 mm (1 x 4¼ in.)
| No. | Description | W (mm) | L (mm) | LT (mm) | Wt (kg) | Part number |
| 1 | Moil point | - | 380 | 500 | 2.0 | 3083325300 |
| 2 | Narrow chisel | - | 380 | 500 | 2.1 | 3083325400 |
| 3 | Wide chisel | 75 | 380 | 500 | 2.3 | 3083325500 |
| 5 | Digging chisel | 75 | 380 | 500 | 3.1 | 3083325600 |
| 6 | Digging spade | 120 | 380 | 500 | 4.2 | 3083325700 |
| 7 | Clay spade | 125 | 430 | 550 | 3.8 | 3083303300 |
| 8 | Wedge chisel | 35 | 380 | 500 | 2.5 | 3083325800 |
| 9 | Shaft for tamping pad | - | 280 | 400 | 2.1 | 3083325900 |
| 10 | Tamping pad, round | ø175 | - | - | 7.6 | 3083325210 |
| 11 | Tamping pad, square | 175 | - | - | 6.1 | 3083323900 |
| 12 | Driver pad, round | ø100 ø65 | - - | - - | 2.6 1.9 | 9245281790 |
| 3371806012 | ||||||
| 14 | Posthole pad | 40 | - | - | 2.7 | 9245282230 |
Round 25 x 75 mm (1 x 3 in.), square collar
| No. | Description | W (mm) | L (mm) | LT (mm) | Wt (kg) | Part number |
| 2 | Narrow chisel | - | 450 | 535 | 2.4 | 3083331600 |
| 5 | Digging chisel | 75 | 420 | 505 | 3.1 | 3083331700 |
| 7 | Clay spade | 135 | 420 | 505 | 3.7 | 3083331800 |
Round 1 x 3 in. (25 x 75 mm), square collar
| No. | Description | W (in.) | L (in.) | LT (in.) | Wt (lb) | Part number |
| 2 | Narrow chisel | - | 18 | 21 | 5.3 | 3083331600 |
| 5 | Digging chisel | 3 | 161⁄2 | 20 | 6.8 | 3083331700 |
| 7 | Clay spade | 51⁄4 | 161⁄2 | 20 | 8.2 | 3083331800 |
Claw couplings
| No. | Description | Partnumber | Quantity |
| 1(2-4) | Claw coupling with strainer, complete (Standard G3⁄4") | 9000030601 | 1 |
| 2 | Claw coupling | - | 1 |
| 3 | Strainer | 9000000010 | 1 |
| 4 | Seal | 9000000000 | 1 |
| 5(6-7) | Claw coupling, complete (Standard G3⁄4") | 9000030600 | 1 |
| 6 | Claw coupling | - | 1 |
| 7 | Seal | 9000000000 | 1 |
