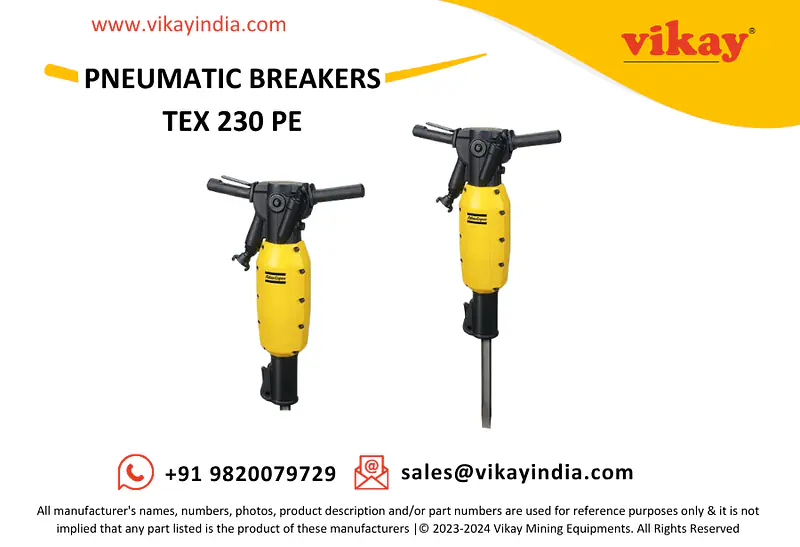

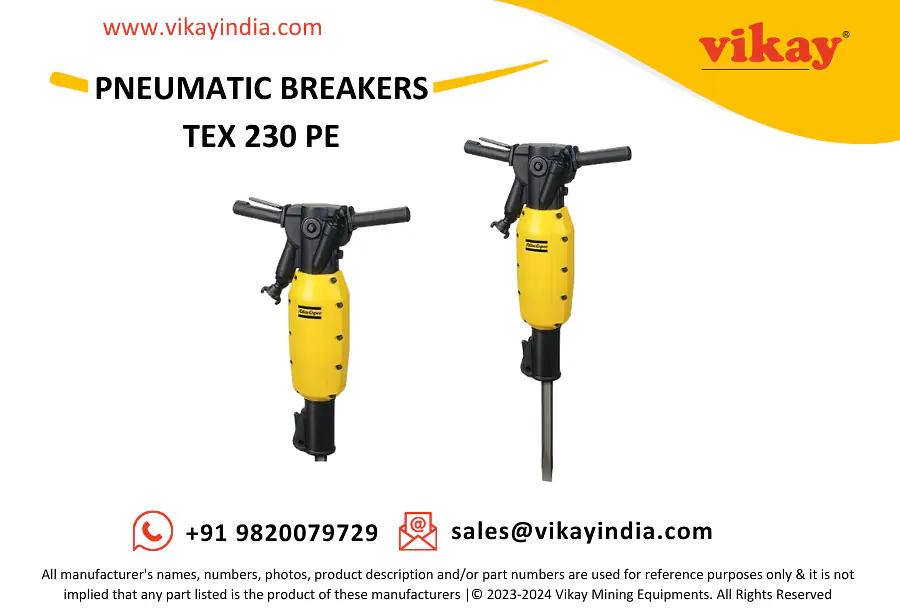

TEX 230 PE Atlas Copco Pneumatic Breaker
Regular price
₹1.00
TEX 230 PE Atlas Copco Pneumatic Breaker
Regular price
₹1.00
DESCRIPTION
TEX 230 PE Atlas Copco Pneumatic Breaker
Vikay is a worldwide distributor of TEX 230 PE Atlas Copco Pneumatic Breaker - 8461022535 suitable for service jobs and general demolition from India.
Applications:
- Medium breakers for service jobs and general demolition
- TEX P60: asphalt and other medium hard materials
Features:
- Solid Body concept
- Noise-reduction
- Rotating air inlet swivel
- Integrated lubricator
- Air cushioned piston
Technical Data
| Pneumatic breakers | TEX 230PE | TEX 230PE | TEX 230PE | |
| Vibro-reduced | YES | YES | YES | |
| Weight | kg | 25,5 | 27 | 27 |
| Length | mm | 625 | 670 | 670 |
| Air consumption | l/s | 30 | 30 | 30 |
| Impact rate | bpm | 1320 | 1320 | 1320 |
| Vibration level 3 axes (ISO 28927-10) | m/s² | 4,2 | 4,2 | 4,2 |
| Sound power level guaranteed (2000/14/EC) | Lw, dB(A) | 104 | 106 | 106 |
| Sound pressure level (ISO 11203) | Lp, r=1m | 92 | 93 | 93 |
| Shank size | Hex mm | 25x108 | 28x160 | 32x160 |
| Part number | 8461022531 | 8461022534 | 8461022535 |
| Available shank sizes | 25x108 | 28x160 | 32x160 |
| TEX 230PE | 8461022531 | 8461022534 | 8461022535 |
| TEX 280PE | - | 8461022632 | 8461022633 |
| TEX 33PE | - | 8461022701 | 8461022700 |
| TEX P60S | - | 8461022722 | 8461022723 |
Suitable couplings:
| Atlas Copco Standard | 9000030600 |
| Atlas Copco Standard with strainer | 9000030601 |
| US Standard | 9001000506 |
