DESCRIPTION

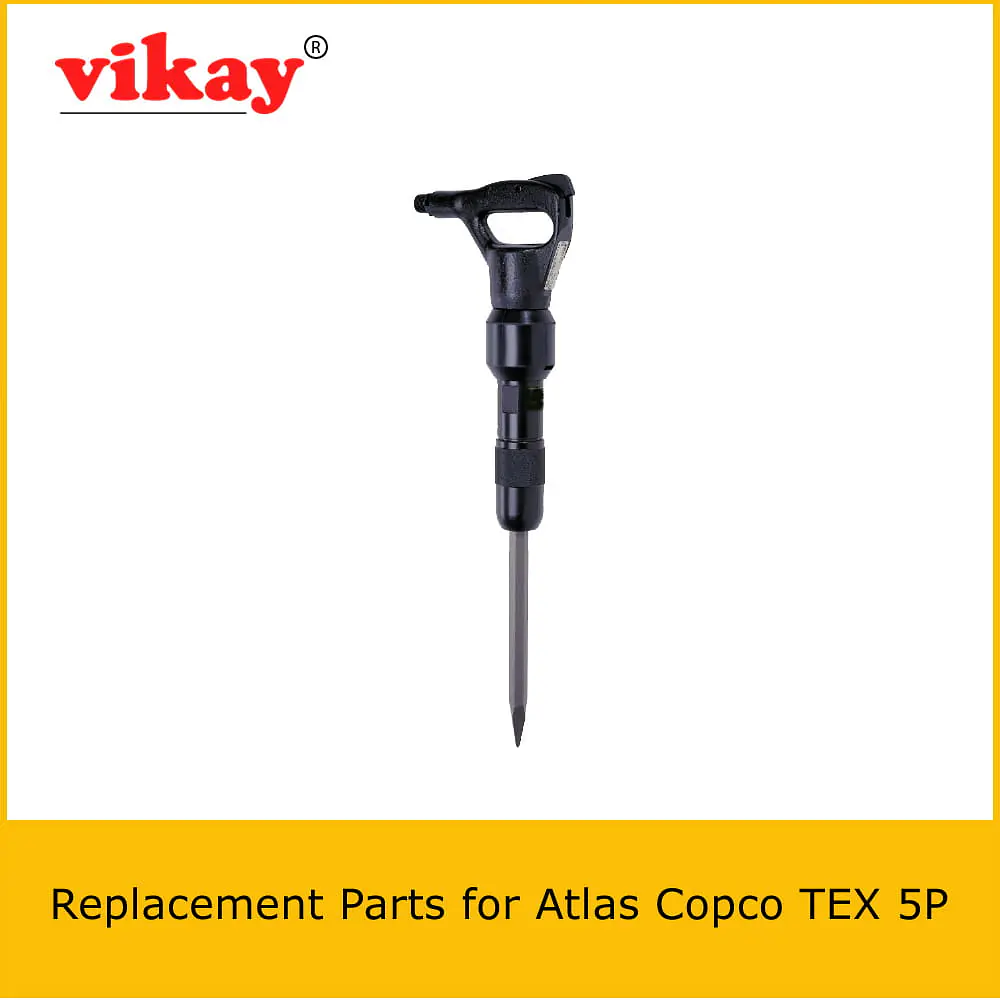

TEX 5P Atlas Copco Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement parts - Atlas Copco TEX 5P from India.

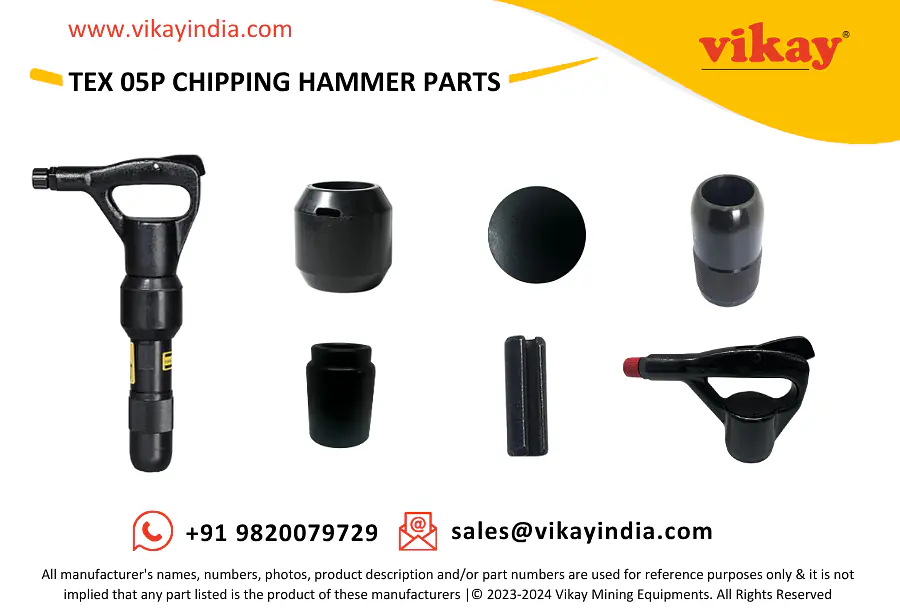

TEX 05P Atlas Copco Chipping Hammer Parts
| No. | Description | Part Number | Quantity |
| 1 | Cap | 3310118200 | 1 |
| 2 | Buffer | 3310093600 | 1 |
| 3 | O-ring (ø39.2x3 mm, Included in Repair kit 3310 1208 90) | - | 1 |
| 4 | Chuck (Hex 19x50 mm) | 3310118300 | 1 |
| 5(6-7) | Cylinder kit | 3310117790 | 1 |
| 6 | Cylinder | 3310117700 | 1 |
| 7 | Pipe (Included in Repair kit 3310 1208 90) | - | 1 |
| 8 | Piston | 3310117800 | 1 |
| 9 | Cover | 3310117900 | 1 |
| 10 | Main valve | 3310118100 | 1 |
| 11 | Valve housing | 3310118000 | 1 |
| 12 | Washer (0.7 mm) | 3310118902 | 1 |
| 13 | Washer (1.0 mm) | 3310118904 | 1 |
| 14 | Washer (1.3 mm) | 3310118906 | 1 |
| 15 | O-ring (ø44.2x3 mm, Included in Repair kit 3310 1208 90) | - | 1 |
| 16(17-24) | Backhead complete | 3310117680 | 1 |
| 17 | Backhead | - | 1 |
| 18 | Trigger | 3310112900 | 1 |
| 19 | Spring pin (ø8x24 mm) | 108135500 | 1 |
| 20 | Parallel pin (ø8x80 mm) | 102038200 | 1 |
| 21 | Inlet valve (Included in Repair kit 3310 1208 90) | - | 1 |
| 22 | Inlet valve rod | 3310113400 | 1 |
| 23 | Spring (Included in Repair kit 3310 1208 90) | - | 1 |
| 24 | Nipple | 3310118500 | 1 |
| 25 | Exhaust deflector | 3310120400 | 1 |
| 26 | Label | - | 1 |
| 27 | Label | - | 1 |
| 28 | Data plate | - | 1 |
| 29 | Drive screw (ø2.5x6 mm) | 244414400 | 2 |
Working tools
Hex 19x50 mm (¾"x2")
| No. | Description | W (mm) | L (mm) | Part number |
| 1 | Moil point | - | 240 mm | 3083322000 |
| - | 440 mm | 3083322100 | ||
| 2 | Narrow chisel | - | 240 mm | 3083322200 |
| - | 440 mm | 3083322300 | ||
| 3 | Wide chisel | 60 mm | 190 mm | 3083322400 |
| 4 | Shaft for bush hammer | - | 80 mm | 3083322500 |
| 6 | Bush hammer, TC head | 40 mm | - | 3083322600 |
| 7 | Bush hammer, TC head | 40 mm | - | 3083322700 |
| 8 | Bush hammer, steel head | 32 mm | - | 3083416300 |
Hex 14.7 - Rd. 17.3x60 mm (9⁄16" - 11⁄16"x23⁄8")
| No. | Description | W (mm) | L (mm) | Part number |
| 1 | Moil point | - | 230 mm | 3083320000 |
| - | 350 mm | 3083320010 | ||
| 2 | Narrow chisel | - | 230 mm | 3083320100 |
| - | 350 mm | 3083320110 | ||
| 3 | Wide chisel | 60 mm | 175 mm | 3083341000 |
Rd. 17.3x60 mm (11⁄16"x2 3⁄8")
| No. | Description | W (mm) | L (mm) | Part number |
| 1 | Moil point | - | 160 mm | 3083411000 |
| - | 235 mm | 3083411010 | ||
| - | 380 mm | 3083411020 | ||
| 2 | Narrow chisel | - | 160 mm | 3083411100 |
| - | 235 mm | 3083411110 | ||
| - | 380 mm | 3083411120 | ||
| 5 | Bushing tool | 50 mm | 170 mm | 3083411400 |
Hex ¾"x2" (19x50 mm)
| No. | Description | W (in.) | L (in.) | Part number |
| 1 | Moil point | - | 9½" | 3083322000 |
| - | 17" | 3083322100 | ||
| 2 | Narrow chisel | - | 9½" | 3083322200 |
| - | 17" | 3083322300 | ||
| 3 | Wide chisel | 2⅜" | 7½" | 3083322400 |
| 4 | Shaft for bush hammer | - | 3⅛" | 3083322500 |
| 6 | Bush hammer, TC head | 1½" | - | 3083322600 |
| 7 | Bush hammer, TC head | 1½" | - | 3083322700 |
| 8 | Bush hammer, steel head | 1¼" | - | 3083416300 |
Hex 9⁄16" - Rd. 11⁄16"x2 3⁄8" (14.7 - 17.3x60 mm)
| No. | Description | W (in.) | L (in.) | Part number |
| 1 | Moil point | - | 9" | 3083320000 |
| - | 14" | 3083320010 | ||
| 2 | Narrow chisel | - | 9" | 3083320100 |
| - | 14" | 3083320110 | ||
| 3 | Wide chisel | 23⁄8" | 7" | 3083341000 |
Rd. 11⁄16"x23⁄8" (17.3x60 mm)
| No. | Description | W (in.) | L (in.) | Part number |
| 1 | Moil point | - | 61⁄4" | 3083411000 |
| - | 91⁄4" | 3083411010 | ||
| - | 15" | 3083411020 | ||
| 2 | Narrow chisel | - | 61⁄4" | 3083411100 |
| - | 91⁄4" | 3083411110 | ||
| - | 15" | 3083411120 | ||
| 5 | Bushing tool | 2" | 63⁄4" | 3083411400 |
Kits
Complete kit
| Description | Part number | Quantity |
| Complete kit | 8461021902 | 1 |
| Chipping hammer | 8461021900 | 1 |
| Short length hose complete | 9030204300 | 1 |
| Moil point (Hex 19x50 mm (3⁄4"x2")) | 3083322000 | 1 |
| Narrow chisel (Hex 19x50 mm (3⁄4"x2")) | 3083322200 | 1 |
| Air oil bottle (0.2 l) | 8099020240 | 1 |
| Storage box | 3310120600 | 1 |
Repair kit
| Description | Part number | Quantity |
| Repair kit | 3310 1208 90 | 1 |
| Spring | - | 1 |
| Inlet valve | - | 1 |
| O-ring (ø39.2x3 mm) | - | 1 |
| Pipe | - | 1 |
| O-ring (ø44.2x3 mm) | - | 1 |
