DESCRIPTION

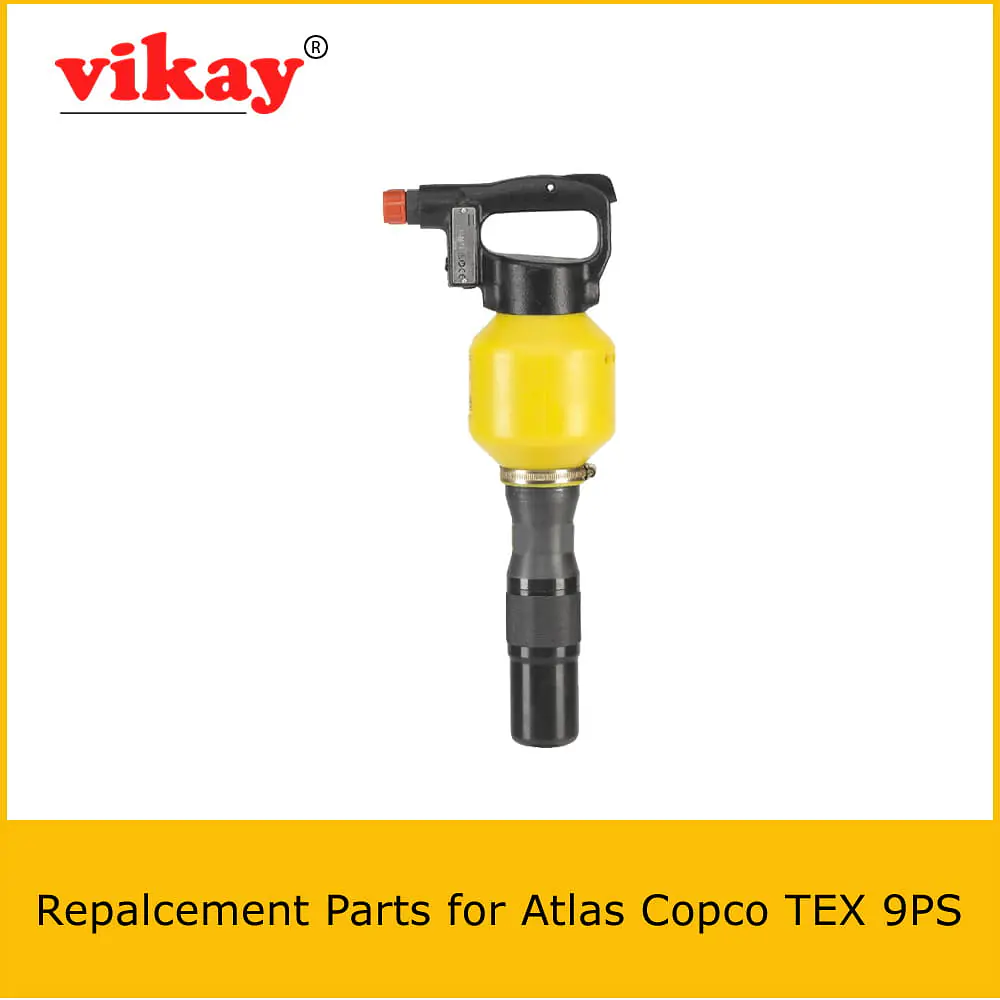

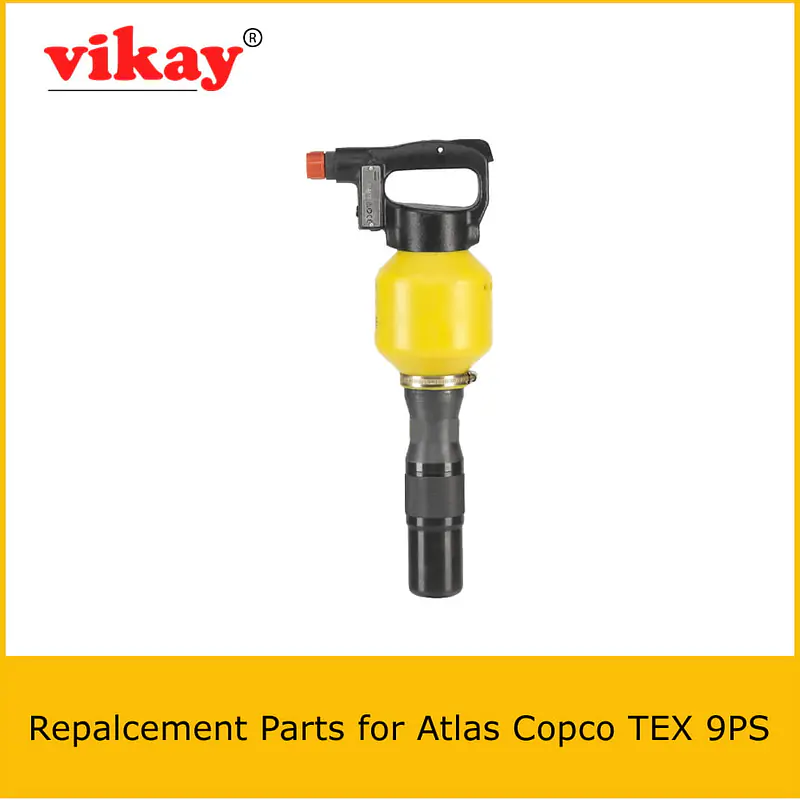

TEX 9PS Atlas Copco Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement parts - Atlas Copco TEX 9PS from India.

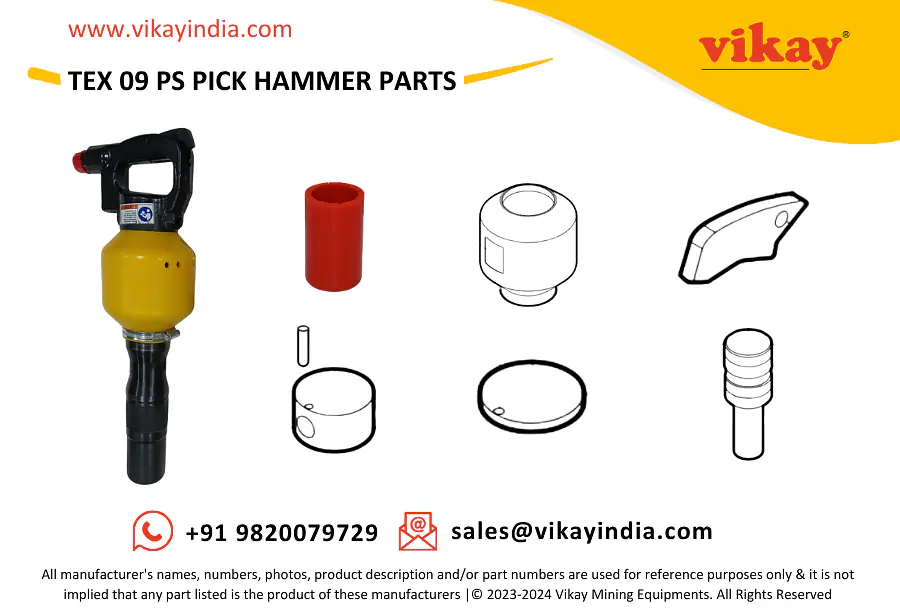

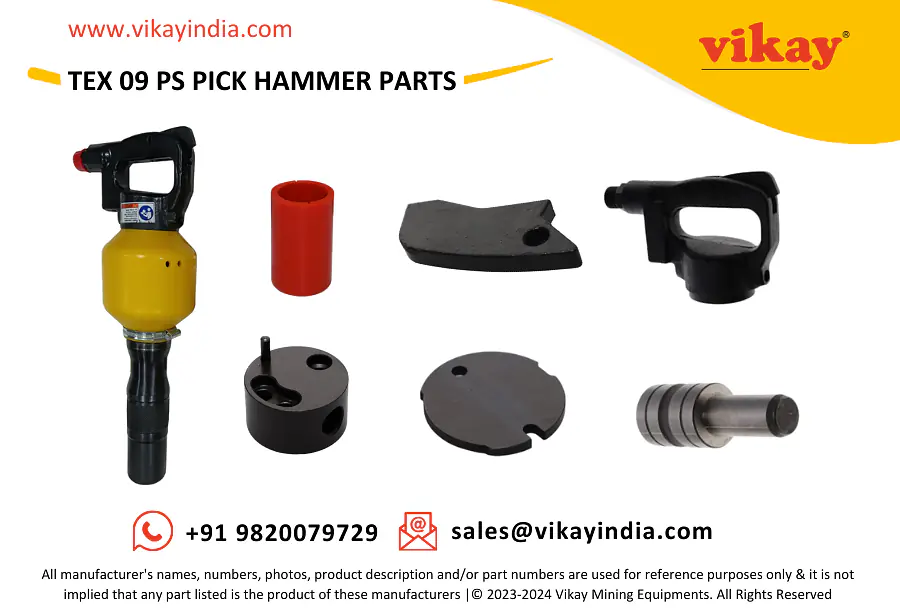

TEX 09PS Atlas Copco Chipping Hammer Parts
| No. | Description | Part number | Quantity |
| 1 | Screw cap | 3310113700 | 1 |
| 2 | O-ring (49.2 x 5.7 mm, 1.94 x 0.22 in.) | - | 1 |
| 3 | Buffer, red (Hexagonal 22 x 82.5 mm, 7⁄8 x 31⁄4 in.) | 3310070500 | 1 |
| 4 | Chuck (Hexagonal 22 x 82.5 mm, 7⁄8 x 31⁄4 in.) | 3310112400 | 1 |
| 5 | Label | 690110102 | 1 |
| 6 | Cylinder | 3310112500 | 1 |
| 7 | Piston | 3310112600 | 1 |
| 8(9-10) | Cover, complete | 3310081080 | 1 |
| 9 | Cover | - | 1 |
| 10 | Grooved pin (4 x 15 mm, 0.16 x 0.59 in.) | 106095102 | 1 |
| 11 | Main valve | 3310081100 | 1 |
| 12(13-14) | Silencer, complete | 3310112780 | 1 |
| 13 | Hose clamp (60-75 mm, 2.36-2.95 in.) | 347611400 | 1 |
| 14 | Silencer | - | 1 |
| 15 | Sound power label | - | 1 |
| 16 | Spring pin (12 x 100 mm, 0.47 x 3.94 in.) | 108169017 | 1 |
| 17(18-26) | Backhead, complete | 3310112880 | 1 |
| 18 | Backhead housing | - | 1 |
| 19 | Trigger | 3310112900 | 1 |
| 20 | Spring pin (8 x 24 mm, 0.31 x 0.94 in.) | 108135500 | 1 |
| 21 | O-ring | - | 1 |
| 22 | Pin (8 x 80 mm, 0.31 x 3.15 in.) | 102038200 | 1 |
| 23 | Inlet valve | - | 1 |
| 24 | Inlet valve rod | 3310113400 | 1 |
| 25 | Spring | - | 1 |
| 26 | Nipple | 3310113100 | 1 |
| 27 | Drive screw | 244414400 | 2 |
| 28 | Data plate | - | 1 |
| 29 | Safety label | 3310160200 | 1 |
| 30 | Eject warning label | 3310157200 | 1 |
ISO standard hexagon 22 x 82.5 mm (7⁄8 x 31⁄4 in.)
| No. | Description | W (mm) | L (mm) | LT (mm) | Wt (kg) | Part number |
| 1 | Moil point | - | 380 | 475 | 1.6 | 3083324200 |
| - | 1000 | 1095 | 3.6 | 3083324300 | ||
| 2 | Narrow chisel | - | 380 | 475 | 1.6 | 3083324400 |
| - | 1000 | 1095 | 3.6 | 3083324500 | ||
| 3 | Wide chisel | 75 | 380 | 475 | 2.2 | 3083324600 |
| 4 | Asphalt cutter | 125 | 380 | 475 | 3.0 | 3083306900 |
| 5 | Digging chisel | 75 | 450 | 545 | 3.3 | 3083324700 |
| 6 | Digging spade | 120 | 400 | 495 | 3.8 | 3083324800 |
| 7 | Shaft for tamping pad | - | 310 | 405 | 1.7 | 3083325100 |
| 8 | Tamping pad, round | Ø175 | - | - | 7.6 | 3083325210 |
| 9 | Tamping pad, square | 175 | - | - | 6.1 | 3083323900 |
| 10 | Driver pad, round | Ø65 | - | - | 1.9 | 3317806012 |
| Ø100 | - | - | 2.6 | 9245281790 |
Round 25 x 75 mm (1 x 3 in.)
| No. | Description | W (mm) | L (mm) | LT (mm) | Part number |
| 1 | Moil point | - | 330 | 415 | 3083326500 |
| - | 450 | 535 | 3083326510 | ||
| 2 | Narrow chisel | - | 330 | 415 | 3083326600 |
| - | 450 | 535 | 3083326610 |
US standard hexagon 7⁄8 x 31⁄4 in. (22 x 82.5 mm)
| No. | Description | W (in.) | L (in.) | LT (in.) | Wt (lb) | Partnumber |
| 1 | Moil point | - - - - | 14 18 24 36 | 18 21 28 40 | 3.3 4.0 5.1 7.3 | 3083405000 3083405010 3083405020 3083405030 |
| 2 | Narrow chisel | - - - - | 14 24 18 36 | 18 28 21 40 | 3.5 5.1 4.0 7.3 | 3083330300 3083330400 3083405110 3083405130 |
| 3 | Wide chisel | 3 3 3 3 | 14 18 24 36 | 18 21 28 40 | 4.6 4.4 5.5 7.7 | 3083330500 3083405210 3083405220 3083405230 |
| 4 | Asphalt cutter | 5 | 12 | 16 | 6.2 | 3083405300 |
| 5 | Digging chisel | 3 | 14 | 18 | 7.1 | 3083330600 |
| 6 | Digging spade | 5 | 13 | 17 | 8.6 | 3083330700 |
| 9 | Shaft for tamping pad | -7 | 8 - | 12 - | 2.9 13.4 | 3083405800 3083323900 |
| 8 | Tamping pad, round | Ø7 | - | - | 16.8 | 3083325210 |
| 9 | Tamping pad, square | 7 | - | - | 13.4 | 3083323900 |
| 10 | Driver pad, round | Ø4 Ø3 | - - | - - | 5.7 4.2 | 9245281790 3371806012 |
Round 1 x 3 in. (25 x 75 mm)
| No. | Description | W (in.) | L (in.) | LT (in.) | Partnumber |
| 1 | Moil point | - | 13.0 | 16.3 | 3083326500 |
| - | 18.0 | 21.0 | 3083326510 | ||
| 2 | Narrow chisel | - | 13.0 | 16.3 | 3083326600 |
| - | 18.0 | 21.0 | 3083326610 |
Claw couplings
| No. | Description | Part number | Quantity |
| 1(2-4) | Claw coupling with strainer, complete | 9000030601 | 1 |
| 2 | Claw coupling (Standard G3⁄4 in.) | - | 1 |
| 3 | Strainer | 9000000010 | 1 |
| 4 | Seal | 9000000000 | 1 |
| 5(6-7) | Claw coupling, complete | 9000030600 | 1 |
| 6 | Claw coupling (Standard G3⁄4 in.) | - | 1 |
| 7 | Seal | 9000000000 | 1 |
| 8(9-10) | Claw coupling, complete | 9001000506 | 1 |
| 9 | Claw coupling (US-universal 3⁄4 in.) | - | 1 |
| 10 | Seal | 9001000515 | 1 |
