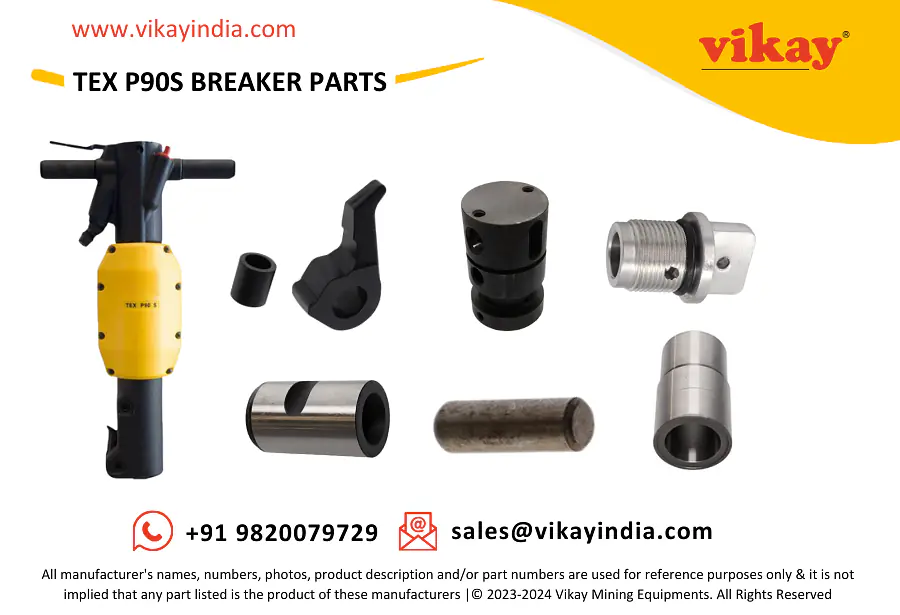

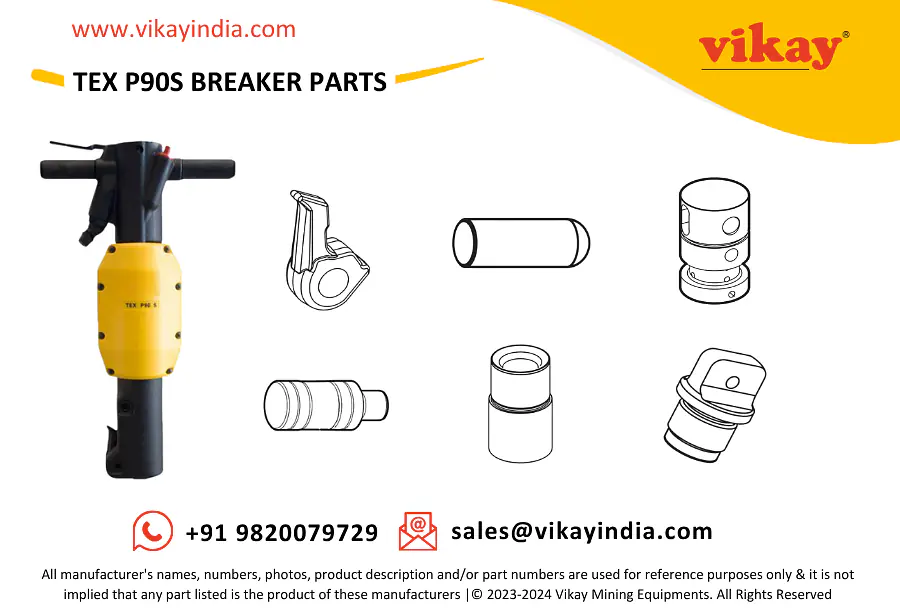

TEX P90S Pneumatic Breaker Spare Parts
Regular price
₹1.00
TEX P90S Pneumatic Breaker Spare Parts
Regular price
₹1.00
DESCRIPTION
TEX P90S Pneumatic Breaker Spare Parts
Vikay is a worldwide distributor of TEX P90S Pneumatic Breaker Spare Parts suitable for Atlas Copco TEX P90S Pneumatic Breaker from India.
| No. | Description | Part number | Quantity |
| 1 | Main body | 3310126700 | 1 |
| 2(3-4) | Tool retainer, complete | 3310088980 | 1 |
| 3 | Tool retainer | - | 1 |
| 4 | Bushing | 3310089200 | 1 |
| 5 | Spring pin (Ø18 x 80 mm) | 108169106 | 1 |
| 6 | Spring pin (Ø20 x 80 mm) | 108169154 | 1 |
| 7 | Plunger | 3310089300 | 1 |
| 8 | Spring | 3310089400 | 1 |
| 9 | Tool bushing (hexagon 28 x 160 mm, 28 x 152 mm) | 3310126301 | 1 |
| 10 | Tool bushing (hexagon 32 x 160 mm, 32 x 152 mm) | 3310126300 | 1 |
| 11 | Intermediate part | 3310126400 | 1 |
| 12 | Lock ring | 3310105300 | 1 |
| 13 | Anvil | 3310126500 | 1 |
| 14 | Piston | 3310126600 | 1 |
| 15 | O-ring (Ø22.2 x 3.0 mm) | 663212600 | 1 |
| 16 | Swivel nut | 3310104400 | 1 |
| 17 | Lock washer | 3310105900 | 1 |
| 18 | Swivel (3⁄4") | 3310125701 | 1 |
| 19 | Spring | 3310121600 | 1 |
| 20 | Inlet valve | 3310121100 | 1 |
| 21 | Valve stem | 3310125800 | 1 |
| 22 | Sleeve | 3310133500 | 2 |
| 23 | Trigger | 3310125100 | 1 |
| 24 | Spring pin (Ø16 x 95 mm) | 108169155 | 1 |
| 25 | Valve housing | 3310125601 | 1 |
| 26 | Main valve | 3310117300 | 1 |
| 27 | Valve cover | 3310124500 | 1 |
| 28 | Spring pin (Ø6 x 55 mm) | 108133500 | 1 |
| 29 | O-ring (Ø49.5 x 3.0 mm) | 663613400 | 1 |
| 30(31-32) | Oil plug, complete | 3310153880 | 1 |
| 31 | Oil plug | - | 1 |
| 32 | O-ring (Ø22.2 x 3.0 mm) | 663212600 | 1 |
| 33 | Dosing feeder | 3310126000 | 1 |
| 34 | Screw | 244414400 | 2 |
| 35 | Label | 690135600 | 1 |
| 36 | Label | 3310129100 | 1 |
| 37(38-40) | Silencer, complete | 3310126180 | 1 |
| 38 | Silencer | - | 1 |
| 39 | Flange screw (M6 x 65 mm) | 147300032 | 8 |
| 40 | Flange nut (M6 Triloc) | 9232020750 | 8 |
| 41 | O-ring (Ø94.1 x 5.7) | 663214600 | 2 |
Working tools
ISO standard hexagon 28 x 160 mm (1⅛" x 6¼")
| No. | Description | W (mm) | L (mm) | Part number |
| 1 | Moil point | - | 380 | 3083327100 |
| - | 450 | 3083327200 | ||
| - | 1000 | 3083327300 | ||
| 2 | Narrow chisel | 32 | 380 | 3083327400 |
| 32 | 450 | 3083327500 | ||
| 32 | 1000 | 3083327600 | ||
| 3 | Wide chisel | 75 | 380 | 3083327700 |
| 4 | Asphalt cutter | 115 | 300 | 3083327800 |
| 5 | Digging chisel | 75 | 380 | 3083327900 |
| 6 | Digging spade | 125 | 380 | 3083328000 |
| 7 | Clay spade | 140 | 380 | 3083328100 |
| 8 | Wedge chisel | 40 | 400 | 3083328200 |
| 9 | Shaft for tamping pad | - | 230 | 3083328301 |
| 10 | Tamping pad, round | 180 | - | 3083330100 |
| 11 | Tamping pad, square | 150 | - | 3083330200 |
| 200 | - | 3083319700 | ||
| 12 | Heavy duty-buster | - | 380 | 3083331500 |
| 14 | Tie tamper | 100 | 400 | 3083331900 |
| 15 | Driver blank | 80 | - | 9245282710 |
ISO standard hexagon 32 x 160 mm (1¼" x 6¼")
| No. | Description | W (mm) | L (mm) | Part number |
| 1 | Moil point | - | 380 | 3083320500 |
| - | 450 | 3083320600 | ||
| - | 1000 | 3083320700 | ||
| 2 | Narrow chisel | 35 | 380 | 3083320800 |
| 35 | 450 | 3083320900 | ||
| 35 | 1000 | 3083321000 | ||
| 3 | Wide chisel | 75 | 380 | 3083321100 |
| 4 | Asphalt cutter | 115 | 300 | 3083321200 |
| 5 | Digging chisel | 75 | 380 | 3083321300 |
| 6 | Digging spade | 125 | 380 | 3083321400 |
| 7 | Clay spade | 140 | 380 | 3083321500 |
| 8 | Wedge chisel | 40 | 400 | 3083321600 |
| 9 | Shaft for tamping pad | - | 235 | 3083321801 |
| 10 | Tamping pad, round | 180 | - | 3083330100 |
| 11 | Tamping pad, square | 150 | - | 3083330200 |
| 200 | - | 3083319700 | ||
| 13 | Spiking tool | - | 195 | 9245282681 |
| 14 | Tie tamper | 100 | 400 | 3083321700 |
| 100 | 580 | 3083321710 | ||
| 15 | Driver blank | 80 | - | 9245282710 |
US standard hexagon 1⅛" x 6" (28 x 152 mm)
| No. | Description | W (in.) | L (in.) | Part number |
| 1 | Moil point | - | 14 | 3083326700 |
| - | 18 | 3083401510 | ||
| - | 36 | 3083401520 | ||
| 2 | Narrow chisel | 1¼ | 14 | 3083326800 |
| 1¼ | 18 | 3083401610 | ||
| 1¼ | 36 | 3083401620 | ||
| 3 | Wide chisel | 3 | 15 | 3083328900 |
| 3 | 18 | 3083401700 | ||
| 4 | Asphalt cutter | 5 | 13 | 3083329000 |
| 41⁄2 | 11 | 3083401900 | ||
| 5 | Digging chisel | 3 | 15 | 3083329100 |
| 6 | Digging spade | 5 | 15 | 3083329200 |
| 7 | Clay spade | 5½ | 15 | 3083329300 |
| 8 | Wedge chisel | 2 | 16 | 3083329400 |
| 9 | Shaft for tamping pad | - | 9 | 3083326900 |
| 10 | Tamping pad, round | 7 | - | 3083330100 |
| 11 | Tamping pad, square | 6 | - | 3083330200 |
| 8 | - | 3083319700 | ||
| 15 | Driver blank | 3 | - | 9245282710 |
US standard hexagon 1¼" x 6" (32 x 152 mm)
| No. | Description | W (in.) | L (in.) | Part number |
| 1 | Moil point | - | 14 | 3083328500 |
| - | 18 | 3083400010 | ||
| - | 36 | 3083400020 | ||
| 2 | Narrow chisel | 1⅜ | 14 | 3083328600 |
| 1⅜ | 18 | 3083400110 | ||
| 1⅜ | 24 | 3083400120 | ||
| 3 | Wide chisel | 3 | 15 | 3083329500 |
| 3 | 18 | 3083400200 | ||
| 4 | Asphalt cutter | 5 | 13 | 3083329600 |
| 41⁄2 | 12 | 3083400400 | ||
| 5 | Digging chisel | 3 | 15 | 3083329700 |
| 6 | Digging spade | 5 | 15 | 3083329800 |
| 7 | Clay spade | 5½ | 15 | 3083329900 |
| 8 | Wedge chisel | 2 | 16 | 3083330000 |
| 9 | Shaft for tamping pad | - | 9 | 3083328700 |
| 10 | Tamping pad, round | 7 | - | 3083330100 |
| 11 | Tamping pad, square | 6 | - | 3083330200 |
| 8 | - | 3083319700 | ||
| 14 | Tie tamper | 4 | 16 | 3083331400 |
| 15 | Driver blank | 3 | - | 9245282710 |
Accessories
Claw couplings
| No. | Description | Part number | Quantity |
| 1(2-4) | Claw coupling with strainer, complete (Standard G3⁄4") | 9000030601 | 1 |
| 2 | Claw coupling | - | 1 |
| 3 | Strainer | 9000000010 | 1 |
| 4 | Seal | 9000000000 | 1 |
| 5(6-7) | Claw coupling, complete (Standard G3⁄4") | 9000030600 | 1 |
| 6 | Claw coupling | - | 1 |
| 7 | Seal | 9000000000 | 1 |
| 8(9-10) | Claw coupling, complete (US-universal 3⁄4") | 9001000506 | 1 |
| 9 | Claw coupling | - | 1 |
| 10 | Seal | 9001000515 | 1 |
