DESCRIPTION

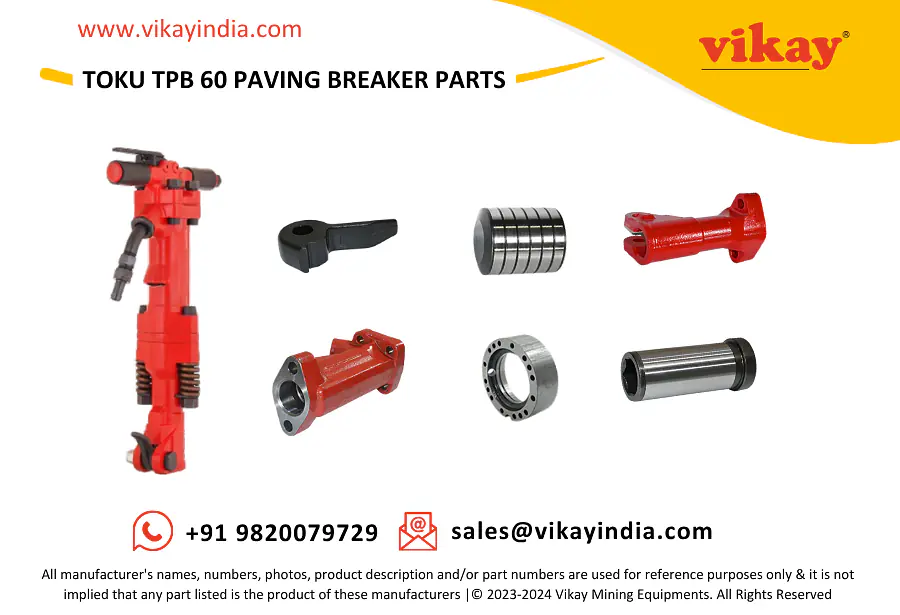

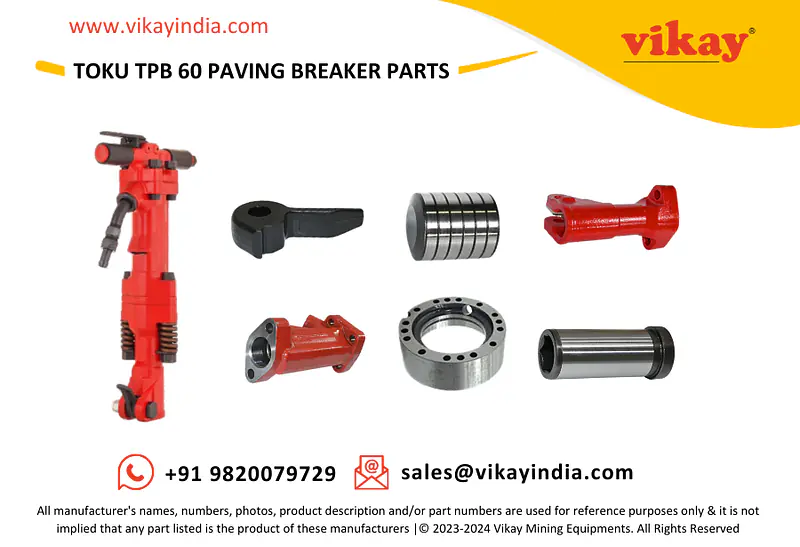

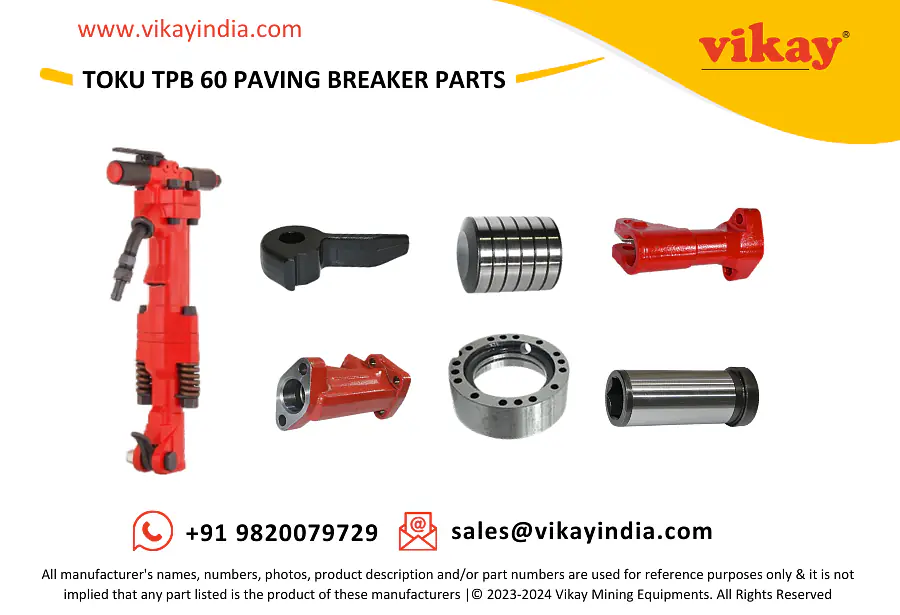

Toku TPB 60 Paving Breaker Spare Parts
Vikay is a worldwide distributor of Toku TPB 60 Paving Breaker Parts - suitable for Toku TPB 60 Paving Breaker from India.
| Sr. No | Description | Part Number | Quantity |
| 1 | Cylinder | 410241010 | 1 |
| 2 | Cylinder Plug | 136301011 | 3 |
| 3 | Piston | 410241041 | 1 |
| 4 | Valve | 410241150 | 1 |
| 5 | Valve Chest | 410241190 | 1 |
| 6 | Valve Seat | 410241170 | 1 |
| 7 | Valve Guide | 410241200 | 1 |
| 8 | Valve Chest Dowel Pin | 130401035 | 1 |
| 9 | Plunger | 410241660 | 1 |
| 10 | Plunger Spring | 130801040 | 1 |
| 11 | Back Head (Bare) | 410241480 | 1 |
| 12 | O-Ring 6227-17 | 131105017 | 1 |
| 13 | Rubber Grip | 136601011 | 2 |
| 14 | Throttle Pin | 410241E00 | 1 |
| 15 | Throttle Valve Stem Guide | 410201300 | 1 |
| 16 | Throttle Valve Spring | 130801047 | 1 |
| 17 | Throttle Lever | 410241311 | 1 |
| 18 | Throttle Lever Pin | 410201330 | 2 |
| 19 | Oil Plug U3/4-10 | 134905010 | 1 |
| 20 | Pipe Plug PP-2 PT1/8 | 134901001 | 1 |
| 21 | Front Head | 410241531 | 1 |
| 22 | Polyurethane Rubber Ball 3/4 | 130505048 | 1 |
| 23 | Back Head Bolt | 131501015 | 4 |
| 24 | Spring Washer M16 | 131301116 | 4 |
| 25 | Back Head Bolt Nut | 410241510 | 4 |
| 26 | Tappet Seat | 410241591 | 1 |
| 27 | Tappet | 410241581 | 1 |
| 28 | Steel Retainer | 410239610 | 1 |
| 29 | Steel Retainer Bolt | 410241620 | 1 |
| 30 | Hex Nylon Nut UNF3/4-16 | 134601019 | 1 |
| 31 | Spring washer W3/4 | 131303048 | 1 |
| 32 | Steel Retainer Bolt Bushing | 136301010 | 2 |
| 33 | Steel Retainer Plunger | 410241650 | 1 |
| 34 | Steel Retainer Spring | 130801042 | 1 |
| 35A | Air Connection Tube | 410271370 | 1 |
| 35B | O-Ring S-29 | 131103023 | 1 |
| 36 | Air Connection Nut | 410271390 | 1 |
| 37 | O-Ring G-30 | 131102002 | 1 |
| 38 | Air Inlet Screen | 136801007 | 1 |
| 39 | Front Head Bolt | 131501016 | 2 |
| 40 | Front Head Bolt Nut | 410241550 | 2 |
| 41 | Front Head Bolt Lock Washer | 410241560 | 2 |
| 42 | Front Head Bolt Spring | 130801043 | 2 |
| 44A | Front Head Bushing 1-1/8" | 410241572 | 1 |
| 44B | Front Head Bushing 1-1/4" | 410245572 | 1 |
| 45 | Felt Oiler | 136101011 | 1 |
| 50 | Spring Pin 4X40 | 130604040 | 1 |
| 51 | Stop Lever | 410241761 | 1 |
| 52 | Stop Lever Spring | 130801046 | 1 |
| 830 | Muffler CP | 41024187G | 1 |
| 802 | Back Head CP (lnc. Sym. No.11, 13, 15, 17, 18, 19, 20, 45, 50. 51, 52) | 41024148N | 1 |
| 821B | Front Head CP 1-1/8 (Inc. Sym. No.21, 28, 29, 30, 31, 32, 33, 34, 44A) | 41024153D | 1 |
| 821B | Front Head CP 1-1/4 (Inc. Sym. No.21, 28, 29, 30. 31, 32, 33, 34, 44B) | 41024553D | 1 |
