DESCRIPTION
Traction Gear Parts
Vikay is a global supplier of new aftermarket replacement parts - Traction Gear for Atlas Copco Mucking Loader Cavo-310 from India.
Product
- Page 1

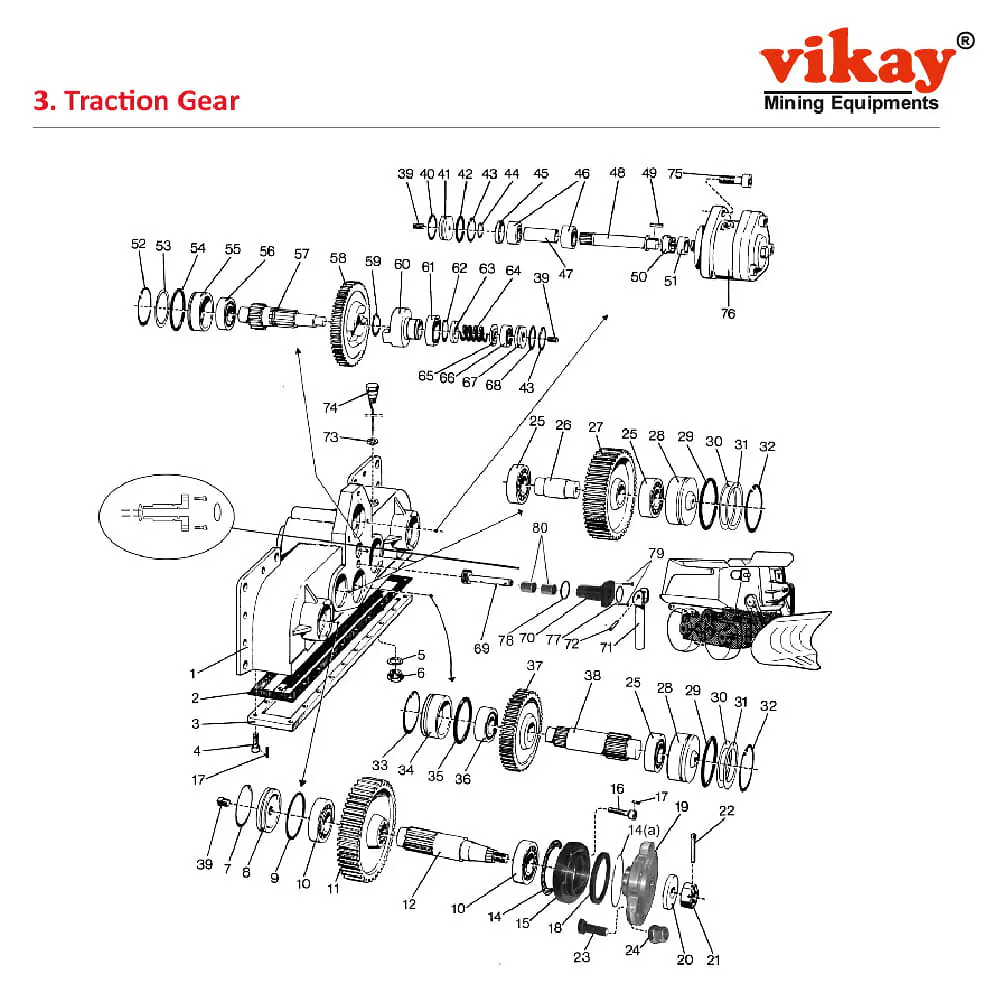

Traction Gear Parts
| No. | Description | Modified | Ref. Part No. | ||
| - | Traction Gear Box Comp. | 5112107080A | * | M10111 | |
| 1 | - Gear Housing (body) (Not delivered Separately) | ||||
| 2 | - Gasket | 5112052600 | |||
| 3 | - Cover | 5112107200 | * | M10035 | |
| 4 | - Screw | 5096995700 | |||
| 5 | - Gasket | 0657582300 | |||
| 6 | - Plug | 0686644600 | |||
| 7 | - Circlip | 0335217800 | |||
| 8 | - Cover | 5112053500 | |||
| 9 | - O Ring | 0663614900 | |||
| 10 | - Bearing | 0509011500 | |||
| 11 | - Gear | 5112011600 | |||
| 12 | - Shaft | 5112053600 | * | M10044 | |
| 14 | - Snap Ring | * | M10658 | ||
| 15 | - Cover | 5112053200 | |||
| 16 | - Screw | 0211140300 | |||
| 18 | - Ring Seal | 0666472100 | |||
| 19 | - Hub | 5112053000 | * | M10051 | |
| 20 | - Washer | 5112016700 | * | M10052 | |
| 21 | - Castle Nut | 0281137200 | * | M10053 | |
| 22 | - Split Pin | 0111145500 | |||
| 23 | - Rim Screw | 5114033100 | * | M10055 | |
| 24 | - Nut | 5112112100 | * | M10056 | |
| 25 | - Bearing | 0508231100 | |||
| 26 | - Shaft | 5112053900 | |||
| 27 | - Gear | 5112053700 | |||
| 28 | - Bearing Cap | 5112049300 | |||
| 29 | -O Ring | 0663615100 | |||
| 30 | - Shim 0.5 MM | 5112053300 | |||
| 31 | - Shim 0.2 MM | 5112053400 | |||
| 32 | - Circlip | 0335218000 | |||
| 33 | -Circlip | 0335217600 | |||
| 34 | - Bearing Cap | 5103044200 | |||
| 35 | - O Ring | 0663614700 | |||
| 36 | - Bearing | 0508230900 | |||
| 37 | - Gear | 5112011500 | |||
| 38 | - Shaft With Pinion | 5112053800 | |||
| 39 | - Plug | 0686310200 | |||
| 40 | - Circlip | 0335215400 | |||
| 41 | - Cover | 5112051800 | |||
| 42 | - O Ring | 0663613600 | |||
| 43 | - Circlip | 0335215200 | |||
| 44 | - Circlip | 0335113200 | |||
| 45 | - Spacer | 5103032100 | |||
| 46 | - Bearing | 0506210600 | |||
| 47 | - Spacer | 5112118700 | |||
| 48 | - Shaft With Pinion | 5112052100 | |||
| 49 | - Key | 5096102000 | |||
| 50 | - Coupling Half (Female) | 5096146900 | |||
| 51 | - Spacer | 5112052000 | |||
| 52 | - Circlip | 0335217300 | |||
| 53 | - Shim 0.2 MM | 5096085000 | |||
| 54 | - O Ring | 0663614500 | |||
| 55 | - Bearing Cap | 5103044100 | |||
| 56 | - Bearing | 0508230800 | |||
| 57 | - Shaft With Pinion | 5096149200 | |||
| 58 | - Gear Comp (with Bushing) | 5112052980 | |||
| 59 | - Circlip | 0335114500 | |||
| 60 | - Coupling Half | 5096147000 | |||
| 61 | - Bearing | 0502111100 | |||
| 62 | - Circlip | 0335114700 | |||
| 63 | - Washer | 5096146300 | |||
| 64 | - Spring | 5096234900 | |||
| 65 | - Washer | 5096146200 | |||
| 66 | - Bearing | 0502210600 | |||
| 67 | - Cover | 5112052300 | |||
| 68 | - O Ring | 0663613500 | |||
| 69 | - Coupling Rod | 5112106900 | |||
| 70 | - Bushing | 5112106800 | * | M10102 | |
| 71 | - Coupling Lever | 5112084600 | |||
| 72 | - Bolt | * | M10104 | ||
| 73 | -Gasket | 0657583400 | |||
| 74 | - Plug | 5112020300 | |||
| 75 | - Screw | * | M10107 | ||
| 76 | - Traction Motor ( See Page 16) | 5021016081A | |||
| 77 | - O-ring | - | |||
| 78 | - O-ring | - | |||
| 79 | - Screw | - | |||
| 80 | - Bush | - |
