Traction Unit Atlas Copco Wagon Drill Parts
Regular price
₹0.00
Traction Unit Atlas Copco Wagon Drill Parts
Regular price
₹0.00
DESCRIPTION
Traction Unit 3163242580 Replacement
Vikay is a global supplier of new aftermarket replacement parts - Traction Unit 3163242580 for Atlas Copco Wagon Drill Bvb-25 from India
Product

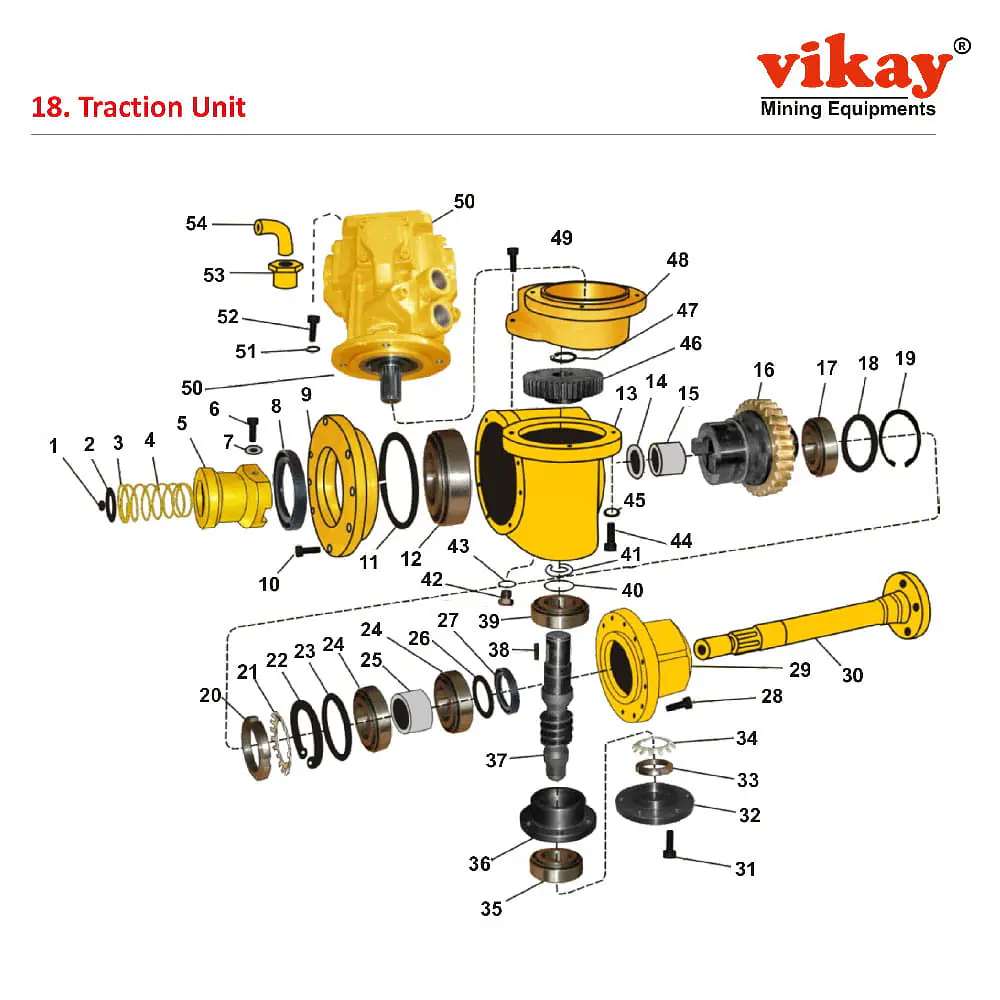

Traction Unit Parts
| No. | Description | Modified | Ref. Part No. | ||
| - | Traction Unit Complete With Air Motor | 3163242580 | |||
| 1 | - Lubricating Nipple | ||||
| 2 | - Circlip | 0335113900 | |||
| 3 | - Washer | ||||
| 4 | - Spring | 3175052800 | |||
| 5 | - Carrier | 3175052900 | |||
| 6 | - Screw | 3175052600 | |||
| 7 | - Washer | 0301215800 | |||
| 8 | - Seal Ring | 3163249200 | |||
| 9 | - Bearing Housing | 3163246000 | |||
| 10 | - Screw | 0211136300 | |||
| 11 | - Spacer Ring | ||||
| 12 | - Ball Bearing | 0502112000 | |||
| 13 | - Gear Housing | ||||
| 14 | - Seal Ring | 0665918000 | |||
| 15 | - Bushing | 3163224900 | |||
| 16 | - Worm Wheel, Complete | 9718426380 | |||
| 17 | - Ball Bearing | 0502211500 | |||
| 18 | - Spacer Ring | 3163245900 | |||
| 19 | - Circlip | 0335217800 | |||
| 20 | - Nut | 0295311200 | |||
| 21 | - Lock Washer | 0333611200 | |||
| 22 | - Circlip | 0335216900 | |||
| 23 | - Spacer Ring | 3163245800 | |||
| 24 | - Ball Bearing | 0502211100 | |||
| 25 | - Spacer Sleeve | 3163245700 | |||
| 26 | - Spacer Ring | 3163245600 | |||
| 27 | - Seal Ring | 3163249000 | |||
| 28 | - Screw | 0211136200 | |||
| 29 | - Bearing Housing | 3163242700 | |||
| 30 | - Shaft | 3163244500 | |||
| 31 | - Screw | 0211136500 | |||
| 32 | - Cover | 3163245100 | |||
| 33 | - Nut | 0295310800 | |||
| 34 | - Lock Washer | 0333610800 | |||
| 35 | - Ball Bearing | 0504210700 | |||
| 36 | - Bearing Housing | 3163245000 | |||
| 37 | - Worm Shaft | 9718426400 | |||
| 38 | - Key | 0337715200 | |||
| 39 | - Ball Bearing | 0506210800 | |||
| 40 | - Spacer Ring | 3163245200 | |||
| 41 | - Circlip | 0335114000 | |||
| 42 | - Plug | 0686370300 | |||
| 43 | - Gasket | 0653907800 | |||
| 44 | - Screw | 0211136500 | |||
| 45 | - Washer | 0301214400 | |||
| 46 | - Gear (51 T) (Modified) | * | M100303 | ||
| 47 | - Circlip | 0335113600 | |||
| 48 | - Motor Casing (Modified) | * | M100305 | ||
| 49 | - Screw | 0211136300 | |||
| 50 | - Piston Motor Complete - 9 Teeth | 4450077680 | |||
| 51 | - Spring Washer | 0333213000 | |||
| 52 | - Screw | 0211136300 | |||
| 53 | - Bushing | 0653852600 | |||
| 54 | - Elbow | 0560130600 |
