Tube Assemblies & Fittings For Ingersoll Rand Type 30 - Model 5T2NL
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - Tube Assemblies & Fittings For Ingersoll Rand Type 30 - Model 5T2NL from India.

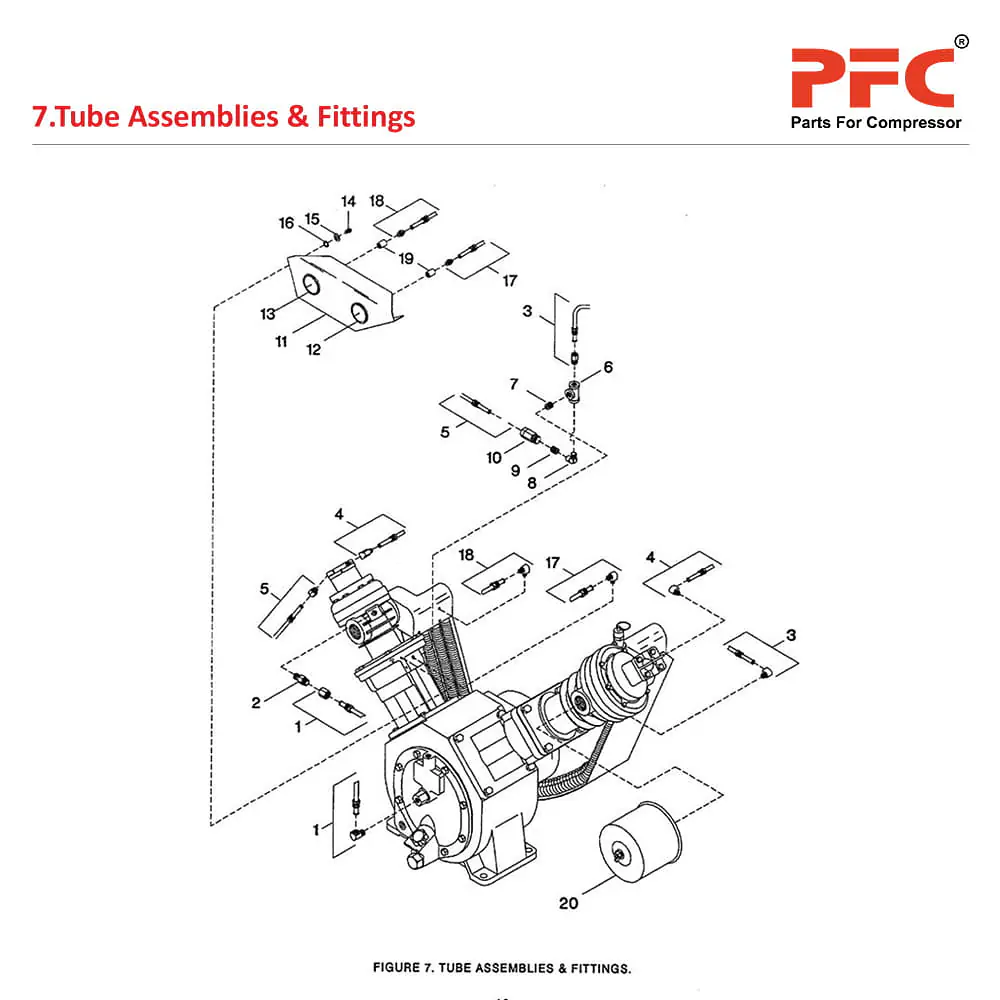

Tube Assemblies & Fittings
| REF. NBR. | PART NO. | DESCRIPTION | UNITS PER ASSY. |
| 7-1 | 32241531 | Assembly, Tube - Cylinder Relief Valve/Pilot Valve Complete | 1 |
| 7-2 | 32225567 | Valve, Cylinder Relief | 1 |
| 7-3 | 32239998 | Assembly, Tube - Distance Piece - Complete | 1 |
| 7-4 | 32241515 | Assembly, Tube - High Pressure/Low Pressure | 1 |
| Constant Speed Unloaders - Complete | |||
| 7-5 | 32241507 | Assembly, Tube - Distance Piece/Constant Speed Unloader - Complete | 1 |
| 7-6 | 95298485 | Tee, Pipe - 1/4' | 1 |
| 7-7 | 95426714 | Nipple, Close - 1/4 X 7/8' | 1 |
| 7-8 | 32225716 | Elbow, Reducing - 1/4 X 1/8' | 1 |
| 7-9 | 95242491 | Nipple, Close - 1/8 X 3/4' | 1 |
| 7-10 | 32001141 | Valve, Check | 1 |
| 7-11 | 32018806 | Panel, Gauge | 1 |
| 7-12 | 32020554 | Gauge, Pressure - Distance Piece | 1 |
| 7-13 | 32020547 | Gauge, Pressure - Intercooler | 1 |
| 7-14 | 32225229 | Capscrew - M6 X 12 | 4 |
| 7-15 | 32225310 | Washer, Flat - 6mm | 4 |
| 7-16 | 32225302 | Washer, Lock - 6mm | 4 |
| 7-17 | 32239972 | Assembly, Tube - Distance Piece/Pressure Gauge Complete | 1 |
| 7-18 | 32239980 | Assembly, Tube - Intercooler/Pressure Gauge Complete | 1 |
| 7-19 | 32131674 | Coupling, Pipe - 1/8' | 2 |
| 7-20 | 32109779 | Filter, Inlet - Complete (See Figure 9, Page 15) | 1 |
