Two Stage Air Compressor Pumps
Description

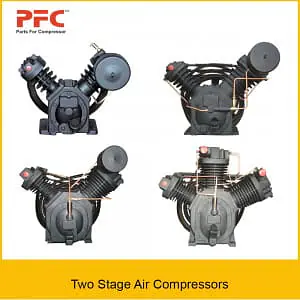

Two Stage Air Compressor Pumps
PFC Parts for Compressor is a global supplier of Two Stage Reciprocating Bare Air Compressor Pumps from India.
The Two stage Reciprocating Bare compressors are rugged packages for use either as a total air system for small industrial installations or a backup system in major installation. These compressors are used where the pressure requirement is more than 7kg / cm2 & up to 14kg/ cm2 maximum air pressure.
The Two Stage Air Compressor Pumps are mostly used in textile, plastic, spray painting, shot blasting, cement, mining, pharmaceuticals, foundry and oil Industries.
Model: 284 , 2390 , 292 , 2525 , 303 , 2595 , 121T2 , 7150 , 65T , 75T2 , 3050
| Two Stage Air Compressor Pumps | ||||||
| Model | Motor hp | No. of Cylinders | Piston Displacement cfm | Maximum Pressure | Air Receiver | |
| psig | Kg/cm²g | (ltrs) | ||||
| 284 | 2/3 | 2 | 7.46/9.79 | 175 | 12.3 | 150 |
| 2390 | 3 | 2 | 9.79 | 175 | 12.3 | 150 |
| 292 | 5/7.5 | 2 | 17.32/19.3 | 175 | 12.3 | 225 |
| 2525 | 5/7.5 | 2 | 17.3/22 | 175 | 12.3 | 225 |
| 303 | 7.5 | 2 | 26.4 | 175 | 12.3 | 225 |
| 2595 | 7.5/10 | 2 | 29.8/37.8 | 175 | 12.3 | 225/300 |
| 121T2 | 10/12.5 | 2 | 40/49 | 175 | 12.3 | 300/500 |
| 7150 | 12.5/15 | 2 | 55/60 | 175 | 12.3 | 300/500 |
| 65T | 15/20 | 3 | 63/81 | 175 | 12.3 | 300/500 |
| 75T2 | 20/25 | 3 | 81/99 | 175 | 12.3 | 500 |
| 3050 | 25/30 | 3 | 99/110 | 175 | 12.3 | 500 |
Details
- type: product
- SKU: PFC09
