Valve Discharge 37020336 Replacement
Regular price
₹0.00
Valve Discharge 37020336 Replacement
Regular price
₹0.00
DESCRIPTION

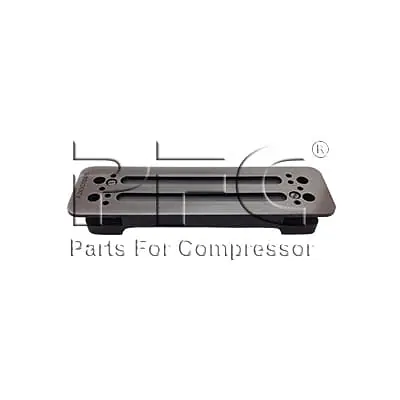

Valve Discharge 37020336 Replacement
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - Valve Discharge 37020336 - Model 7 x 5 ESV 1 NL for Ingersoll Rand Air Compressor - Type-Esv/Esh from India.

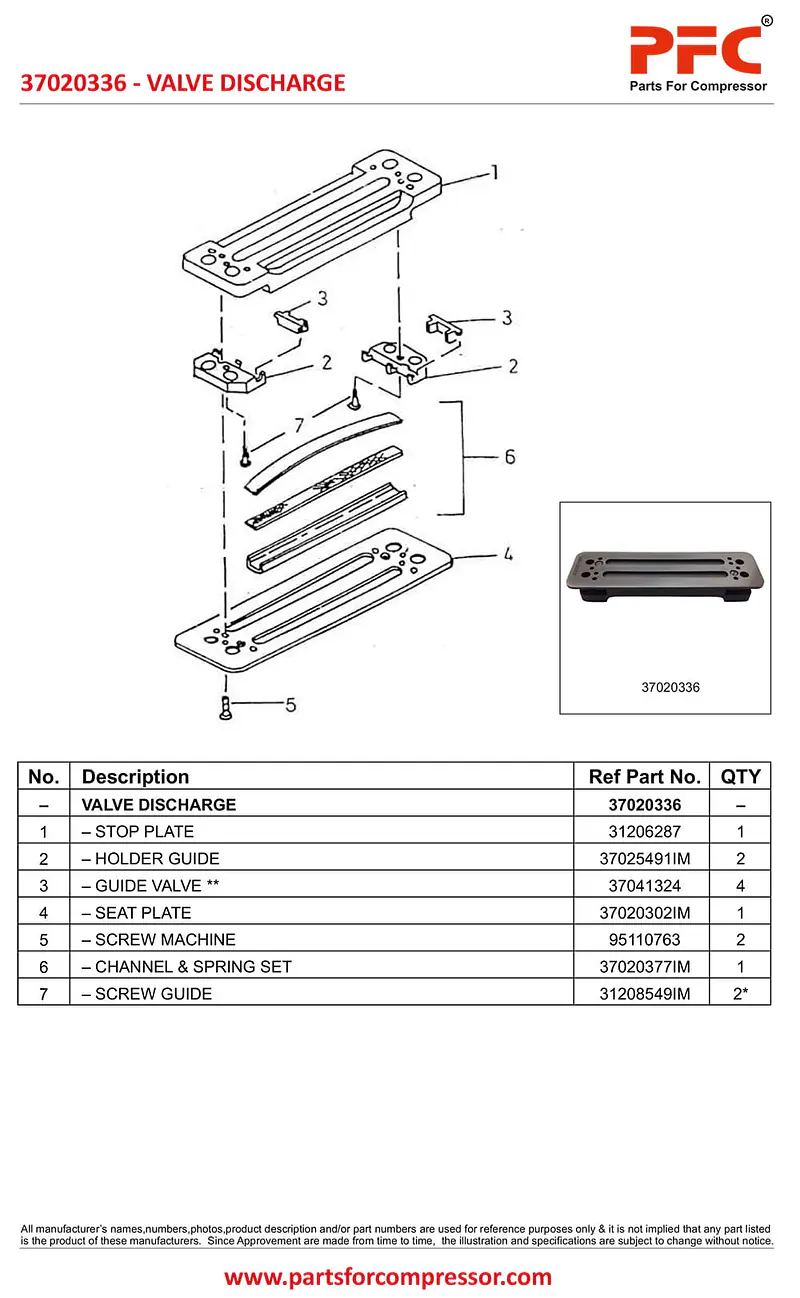

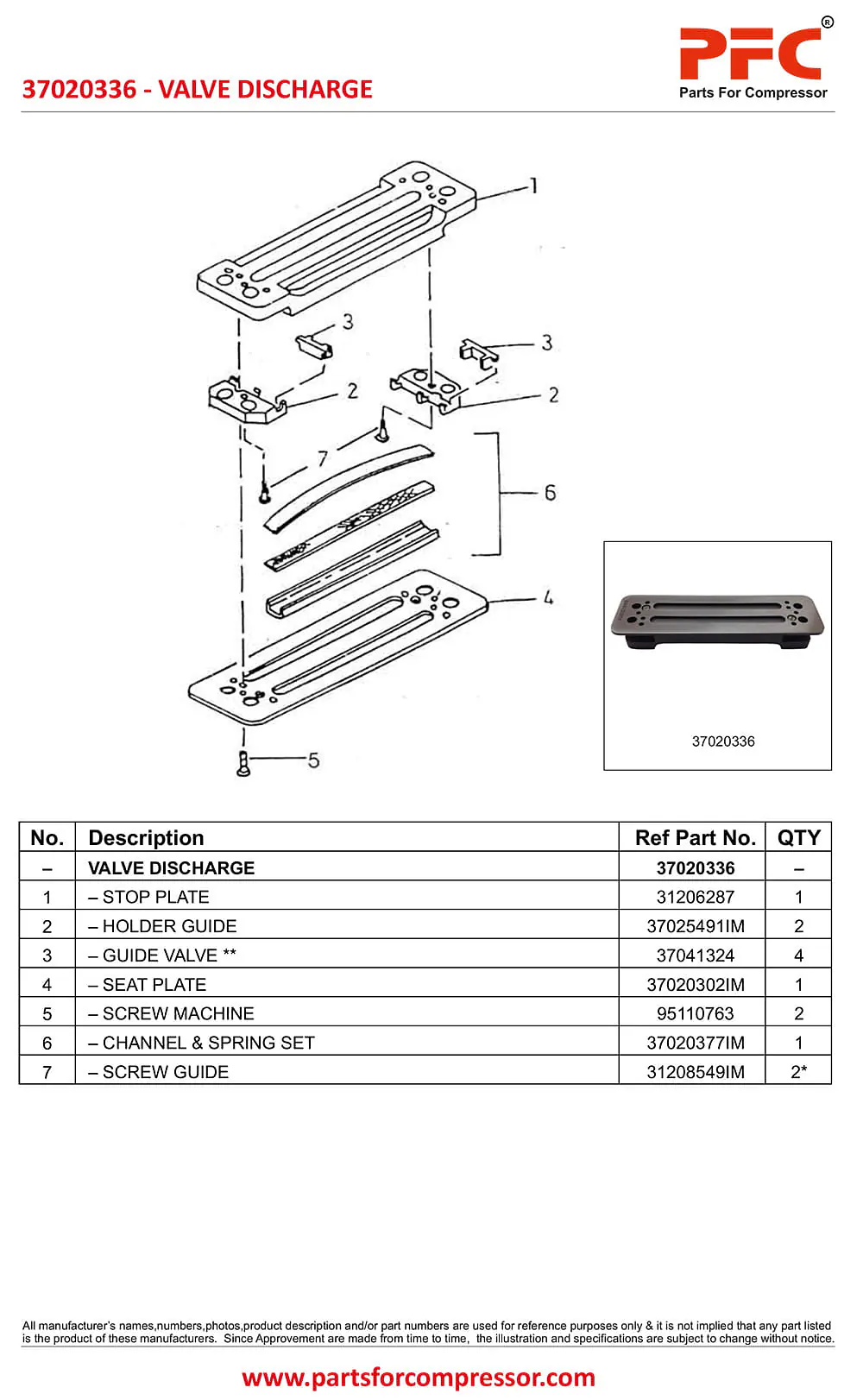

37020336 - VALVE DISCHARGE
| No. | Description | Ref Part No. | QTY |
| – | VALVE DISCHARGE | 37020336 | – |
| 1 | – STOP PLATE | 31206287 | 1 |
| 2 | – HOLDER GUIDE | 37025491IM | 2 |
| 3 | – GUIDE VALVE ** | 37041324 | 4 |
| 4 | – SEAT PLATE | 37020302IM | 1 |
| 5 | – SCREW MACHINE | 95110763 | 2 |
| 6 | – CHANNEL & SPRING SET | 37020377IM | 1 |
| 7 | – SCREW GUIDE | 31208549IM | 2* |
