Valve Discharge W-Cage Cover 70469838 Replacement
Regular price
₹0.00
Valve Discharge W-Cage Cover 70469838 Replacement
Regular price
₹0.00
DESCRIPTION
Valve Discharge W-Cage Cover 70469838 Replacement
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - Valve Discharge W-Cage Cover 70469838 for Chicago Pneumatic Air Compressor from India.

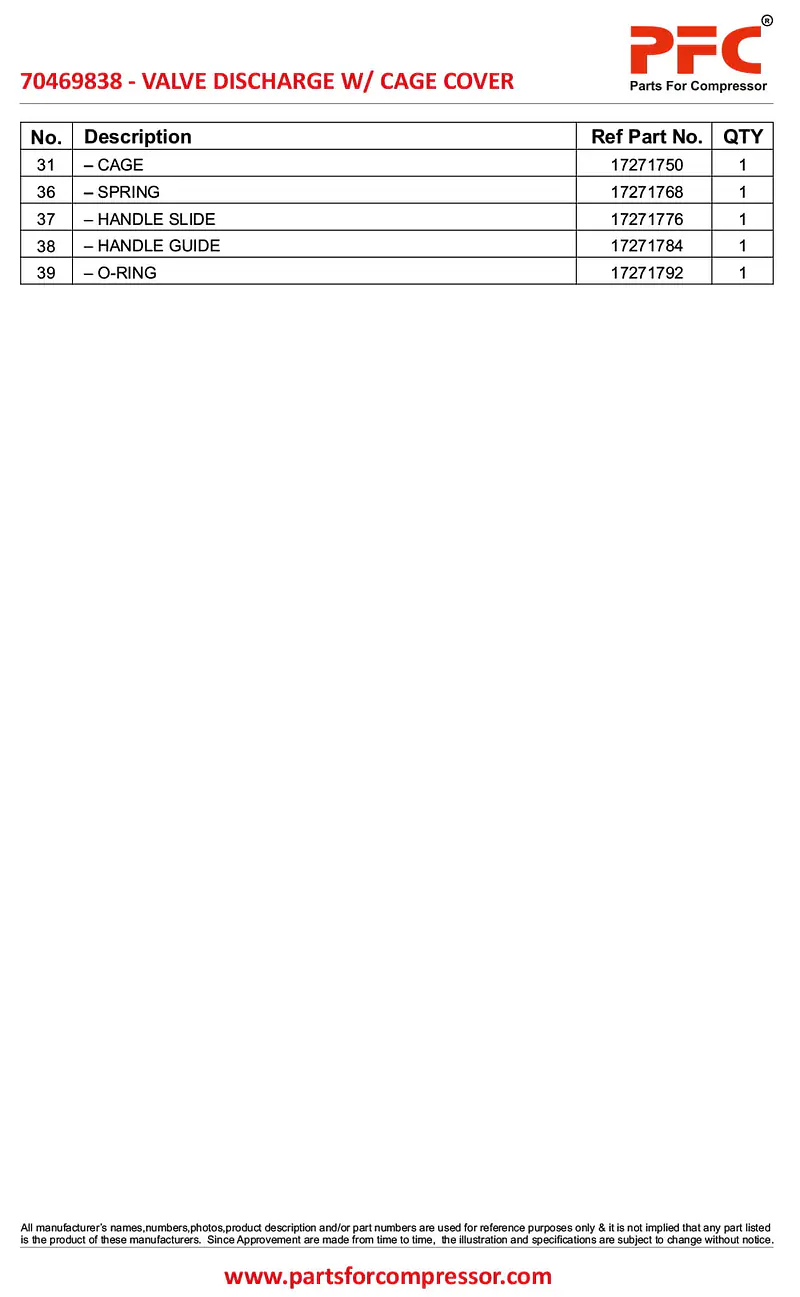

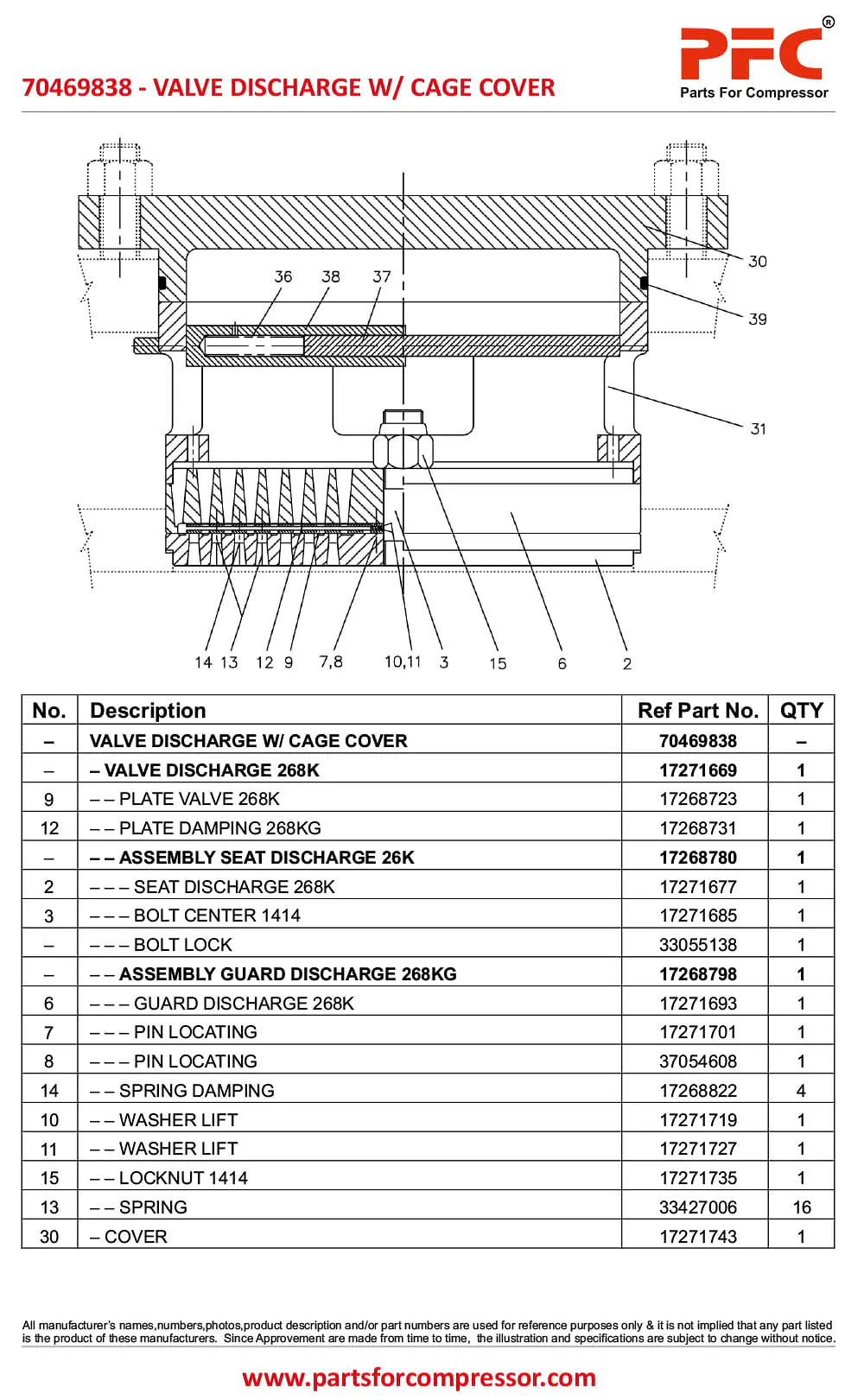

VALVE DISCHARGE W/ CAGE COVER 70469838
| Sr. No. | Description | Part Number | QTY |
| – | VALVE DISCHARGE W/ CAGE COVER | 70469838 | – |
| – | – VALVE DISCHARGE 268K | 17271669 | 1 |
| 9 | – – PLATE VALVE 268K | 17268723 | 1 |
| 12 | – – PLATE DAMPING 268KG | 17268731 | 1 |
| – | – – ASSEMBLY SEAT DISCHARGE 26K | 17268780 | 1 |
| 2 | – – – SEAT DISCHARGE 268K | 17271677 | 1 |
| 3 | – – – BOLT CENTER 1414 | 17271685 | 1 |
| – | – – – BOLT LOCK | 33055138 | 1 |
| – | – – ASSEMBLY GUARD DISCHARGE 268KG | 17268798 | 1 |
| 6 | – – – GUARD DISCHARGE 268K | 17271693 | 1 |
| 7 | – – – PIN LOCATING | 17271701 | 1 |
| 8 | – – – PIN LOCATING | 37054608 | 1 |
| 14 | – – SPRING DAMPING | 17268822 | 4 |
| 10 | – – WASHER LIFT | 17271719 | 1 |
| 11 | – – WASHER LIFT | 17271727 | 1 |
| 15 | – – LOCKNUT 1414 | 17271735 | 1 |
| 13 | – – SPRING | 33427006 | 16 |
| 30 | – COVER | 17271743 | 1 |
| 31 | – CAGE | 17271750 | 1 |
| 36 | – SPRING | 17271768 | 1 |
| 37 | – HANDLE SLIDE | 17271776 | 1 |
| 38 | – HANDLE GUIDE | 17271784 | 1 |
| 39 | – O-RING | 17271792 | 1 |
