DESCRIPTION
Valve Discharge W-Cage Cover 70469853 Replacement
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - Valve Discharge W-Cage Cover 70469853 for Chicago Pneumatic Air Compressor from India.

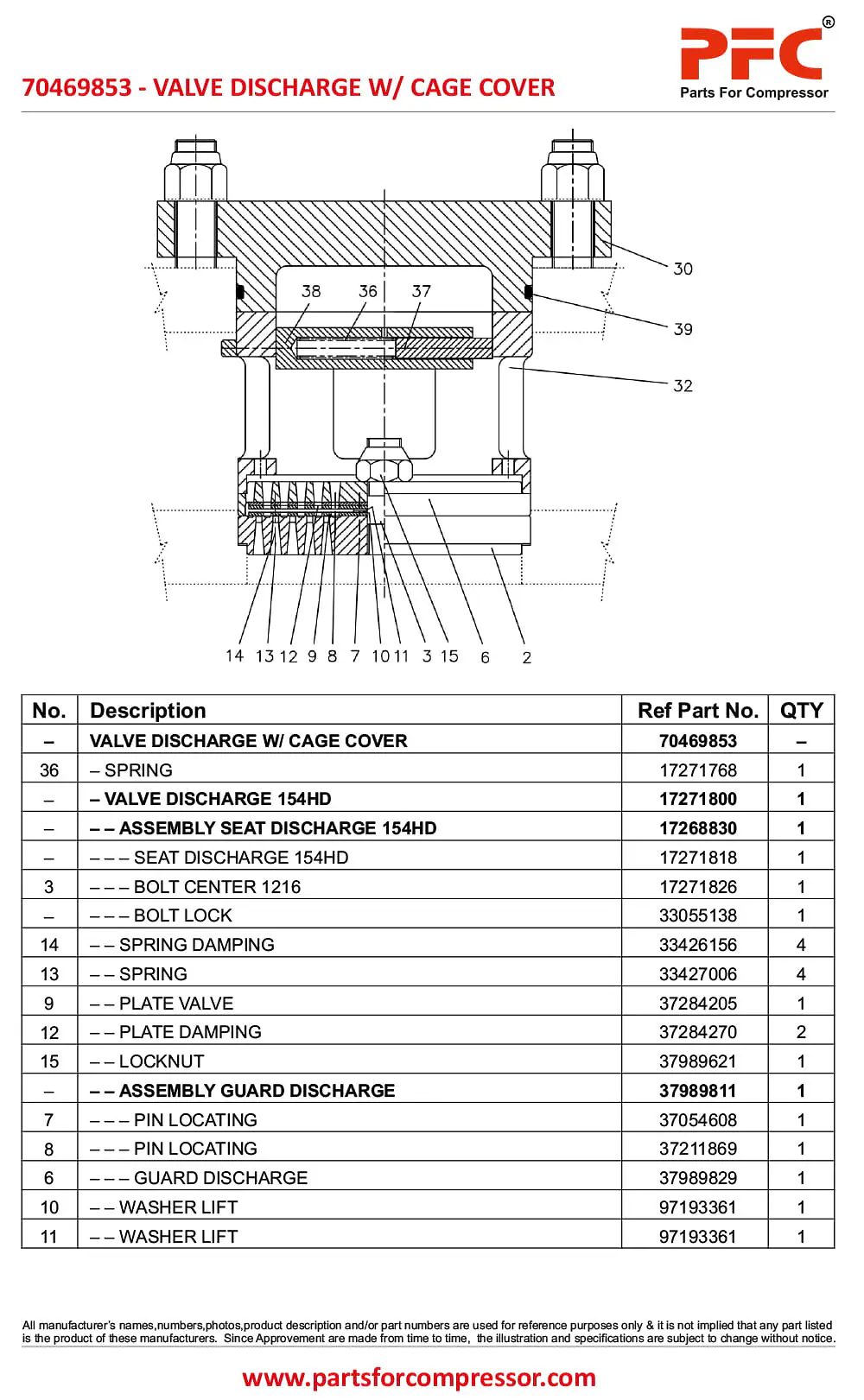

VALVE DISCHARGE W/ CAGE COVER 70469853
| Sr. No. | Description | Part Number | QTY |
| – | VALVE DISCHARGE W/ CAGE COVER | 70469853 | – |
| 36 | – SPRING | 17271768 | 1 |
| – | – VALVE DISCHARGE 154HD | 17271800 | 1 |
| – | – – ASSEMBLY SEAT DISCHARGE 154HD | 17268830 | 1 |
| – | – – – SEAT DISCHARGE 154HD | 17271818 | 1 |
| 3 | – – – BOLT CENTER 1216 | 17271826 | 1 |
| – | – – – BOLT LOCK | 33055138 | 1 |
| 14 | – – SPRING DAMPING | 33426156 | 4 |
| 13 | – – SPRING | 33427006 | 4 |
| 9 | – – PLATE VALVE | 37284205 | 1 |
| 12 | – – PLATE DAMPING | 37284270 | 2 |
| 15 | – – LOCKNUT | 37989621 | 1 |
| – | – – ASSEMBLY GUARD DISCHARGE | 37989811 | 1 |
| 7 | – – – PIN LOCATING | 37054608 | 1 |
| 8 | – – – PIN LOCATING | 37211869 | 1 |
| 6 | – – – GUARD DISCHARGE | 37989829 | 1 |
| 10 | – – WASHER LIFT | 97193361 | 1 |
| 11 | – – WASHER LIFT | 97193361 | 1 |

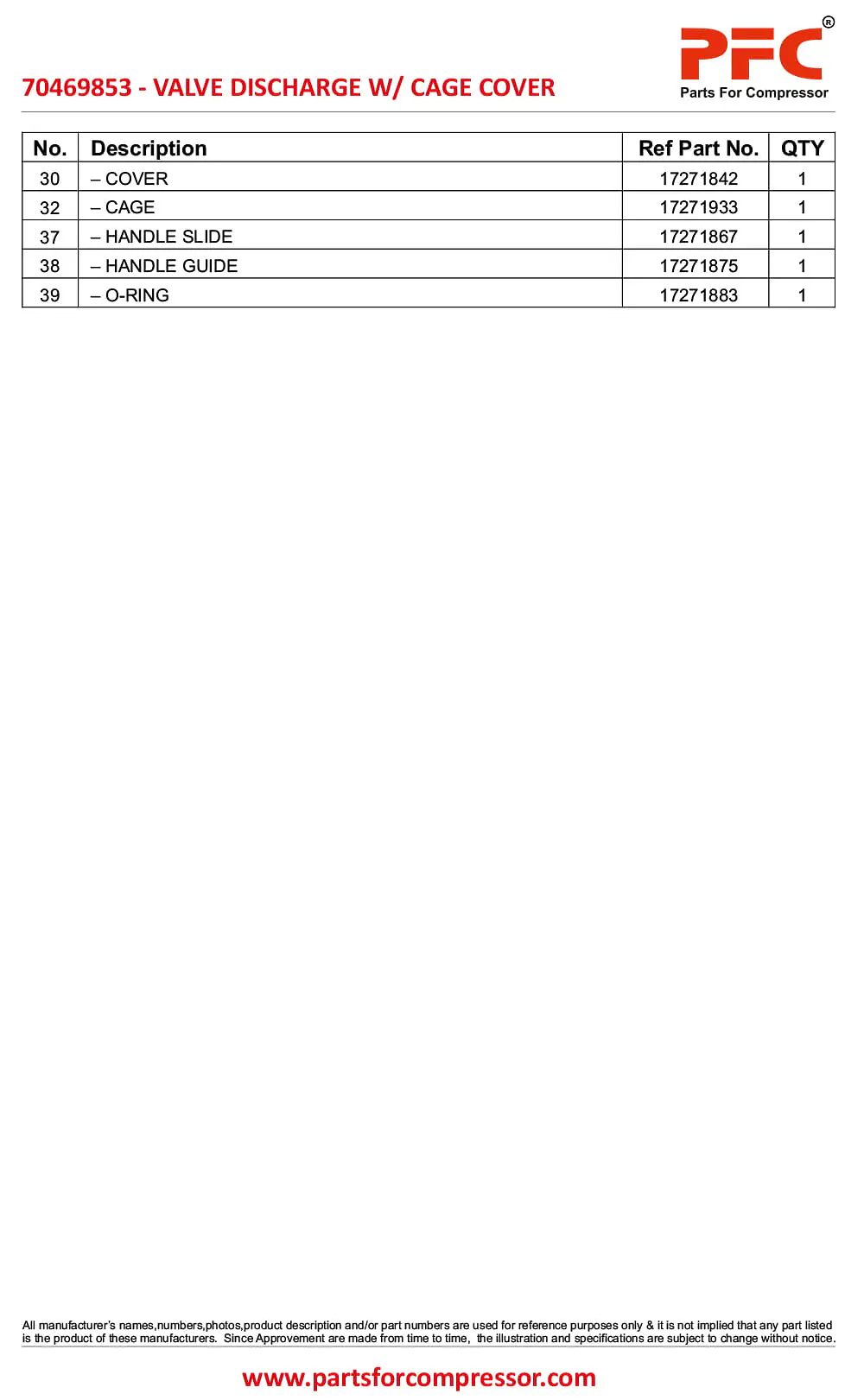

| 30 | – COVER | 17271842 | 1 |
| 32 | – CAGE | 17271933 | 1 |
| 37 | – HANDLE SLIDE | 17271867 | 1 |
| 38 | – HANDLE GUIDE | 17271875 | 1 |
| 39 | – O-RING | 17271883 | 1 |
