Valve Discharge W-Cage Cover 70469937 Replacement
Regular price
₹320.00
Valve Discharge W-Cage Cover 70469937 Replacement
Regular price
₹320.00
DESCRIPTION
Valve Discharge W-Cage Cover 70469937 Replacement
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - Valve Discharge W-Cage Cover 70469937 for Chicago Pneumatic Air Compressor from India.

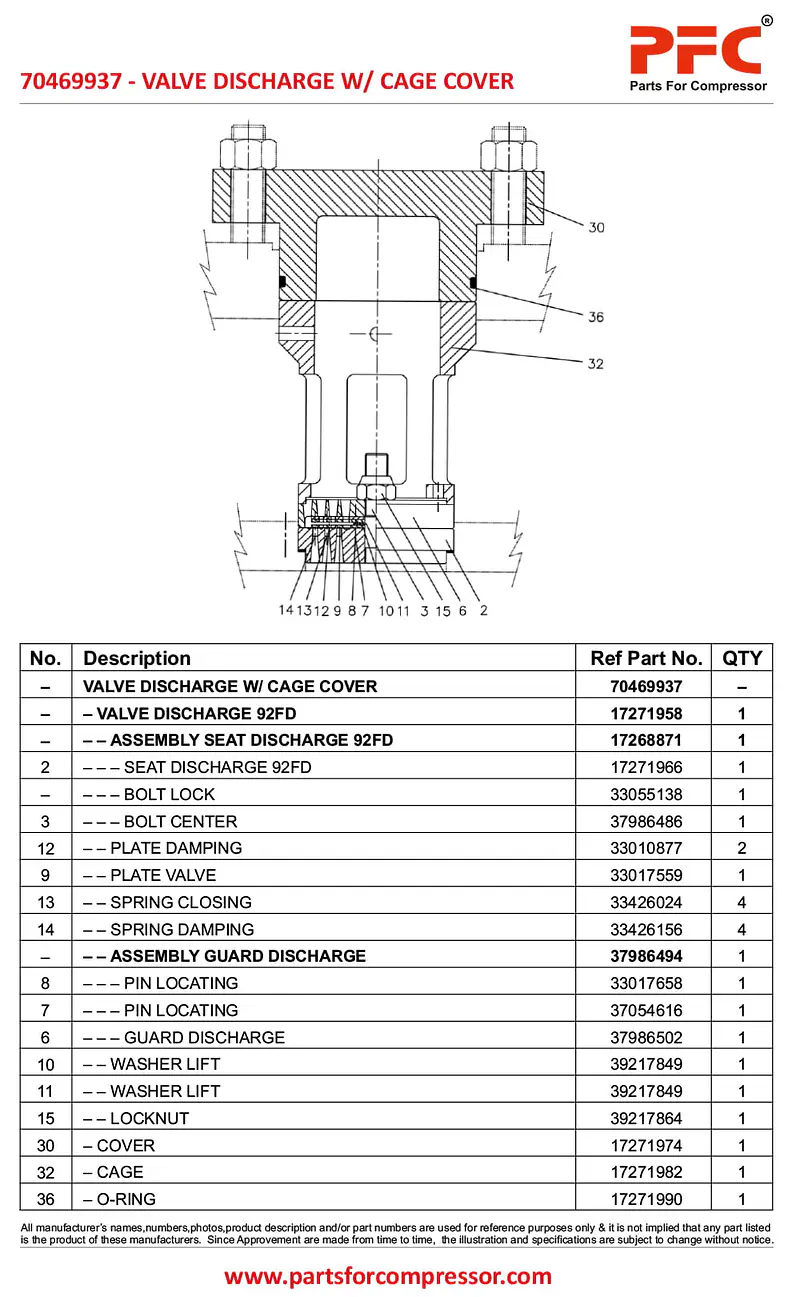

VALVE DISCHARGE W/ CAGE COVER 70469937
| Sr. No. | Description | Part Number | QTY |
| – | VALVE DISCHARGE W/ CAGE COVER | 70469937 | – |
| – | – VALVE DISCHARGE 92FD | 17271958 | 1 |
| – | – – ASSEMBLY SEAT DISCHARGE 92FD | 17268871 | 1 |
| 2 | – – – SEAT DISCHARGE 92FD | 17271966 | 1 |
| – | – – – BOLT LOCK | 33055138 | 1 |
| 3 | – – – BOLT CENTER | 37986486 | 1 |
| 12 | – – PLATE DAMPING | 33010877 | 2 |
| 9 | – – PLATE VALVE | 33017559 | 1 |
| 13 | – – SPRING CLOSING | 33426024 | 4 |
| 14 | – – SPRING DAMPING | 33426156 | 4 |
| – | – – ASSEMBLY GUARD DISCHARGE | 37986494 | 1 |
| 8 | – – – PIN LOCATING | 33017658 | 1 |
| 7 | – – – PIN LOCATING | 37054616 | 1 |
| 6 | – – – GUARD DISCHARGE | 37986502 | 1 |
| 10 | – – WASHER LIFT | 39217849 | 1 |
| 11 | – – WASHER LIFT | 39217849 | 1 |
| 15 | – – LOCKNUT | 39217864 | 1 |
| 30 | – COVER | 17271974 | 1 |
| 32 | – CAGE | 17271982 | 1 |
| 36 | – O-RING | 17271990 | 1 |
