Valve - Gasket Kit 32229882 Replacement
Regular price
₹0.00
Valve - Gasket Kit 32229882 Replacement
Regular price
₹0.00
DESCRIPTION

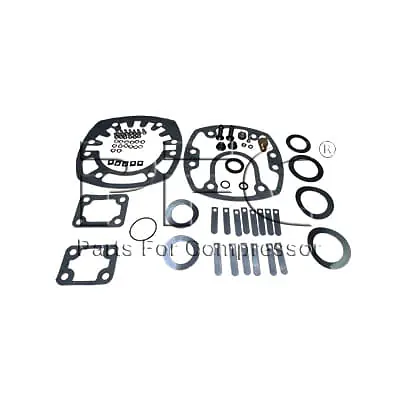

Valve - Gasket Kit 32229882 - 7100 - Type 30 Replacement Kits
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - Valve - Gasket Kit 32229882 Model 7100 - Type 30 Replacement Kits from India
Valve - Gasket Kit - 32229882 - 1 Set
Contain of Kit
| No. | Description | Part No. | QTY |
| A | Valve/Gasket Kit | 32229882 | -- |
| – Finger Valve | 30220115 | 14 | |
| – Discharge Valve Plate | 30181499 | 1 | |
| – Discharge Valve Plate | 30215917 | 1 | |
| – Discharge Valve Spring | 30221394 | 2 | |
| – Discharge Valve Spring | 30221501 | 2 | |
| – Valve Bolt | 32223927 | 2 | |
| – Valve Retainer | 32228306 | 5 | |
| – L/P Head Gasket (Disch.) | 32153801 | 1 | |
| – L/P Head Gasket (Inlet) | 32153827 | 1 | |
| – L/P Airhead Gasket | 32267502 | 1 | |
| – L/P Valve Plate Gasket | 32267510 | 1 | |
| – Unloader Piston Seal | 32254740 | 1 | |
| – Unloader Piston “O” Ring | 32188385 | 1 | |
| – “O” Ring | 95026183 | 1 | |
| – “O” Ring | 95935862 | 1 | |
| – Elbow | 95040143 | 1 | |
| – Hex Nut | 95416335 | 1 | |
| – Lock Washer | 95648150 | 1 | |
| – Whiz-Lock Nut | 97166946 | 2 | |
| – Fillister Head Screw | 32035511 | 13 | |
| – Washer | 32217382 | 14 | |
| – Fillister Head Screw | 32224008 | 1 | |
| – Lock Nut | 32229684 | 1 | |
| – HP Upgrade Kit (A1) | 32254708 | -- | |
| – L/P Head Gasket (Inlet) | 32153827 | 1 | |
| – H/P Airhead Gasket | 32252801 | 1 | |
| – H/P Spacer Plate Gasket | 32252819 | 2 | |
| – H/P Valve Plate Gasket | 32252827 | 1 | |
| – Flat Washer | 32279408 | 6 | |
| – Hex Cap Washer | 95104196 | 6 | |
| Total | - | 86 |
