Valve Inlet 37020278 Replacement
Regular price
₹0.00
Valve Inlet 37020278 Replacement
Regular price
₹0.00
DESCRIPTION
Valve Inlet 37020278 Replacement
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - Valve Inlet 37020278 - Model 7 x 5 ESV 1 NL for Ingersoll Rand Air Compressor - Type-Esv/Esh from India.

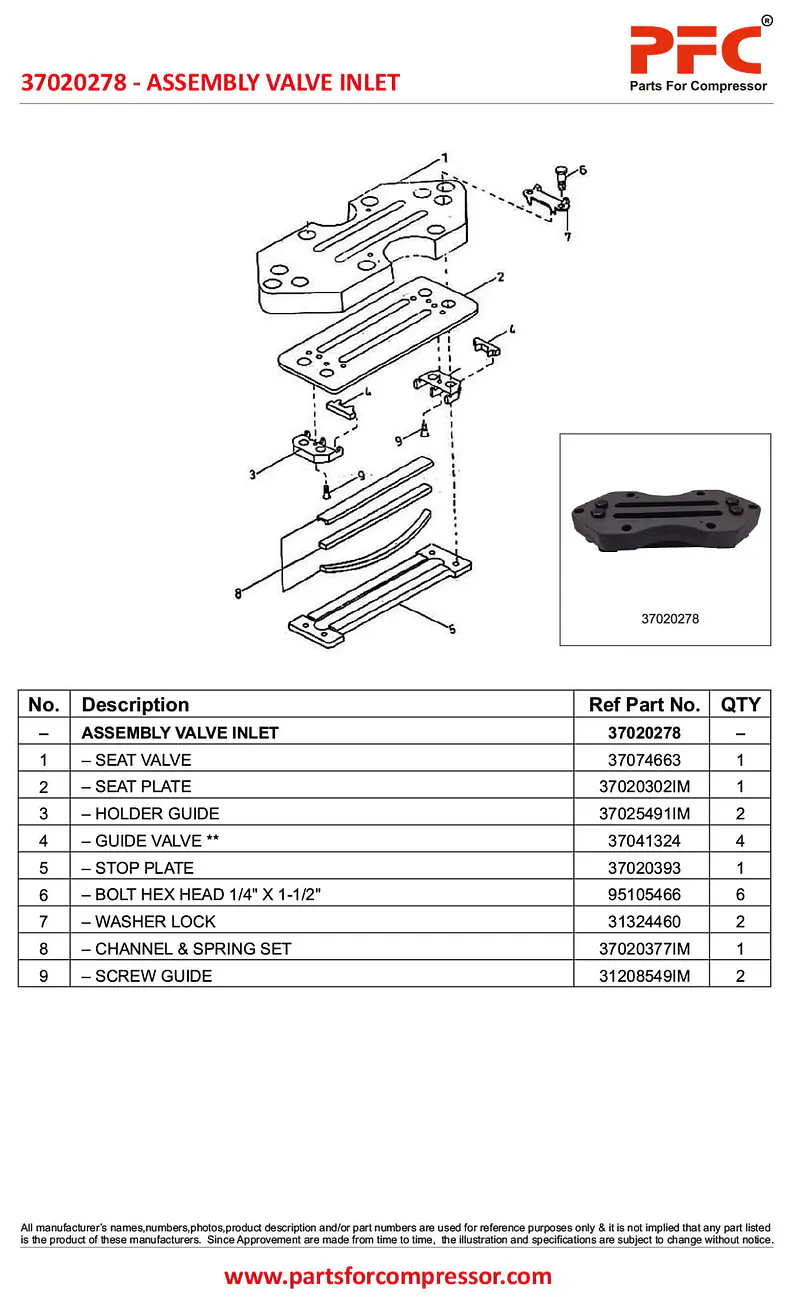

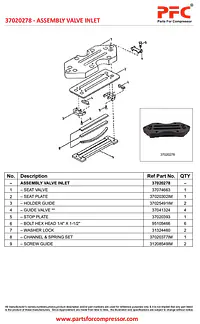

37020278 - ASSEMBLY VALVE INLET
| No. | Description | Ref Part No. | QTY |
| – | ASSEMBLY VALVE INLET | 37020278 | – |
| 1 | – SEAT VALVE | 37074663 | 1 |
| 2 | – SEAT PLATE | 37020302IM | 1 |
| 3 | – HOLDER GUIDE | 37025491IM | 2 |
| 4 | – GUIDE VALVE ** | 37041324 | 4 |
| 5 | – STOP PLATE | 37020393 | 1 |
| 6 | – BOLT HEX HEAD 1/4" X 1-1/2" | 95105466 | 6 |
| 7 | – WASHER LOCK | 31324460 | 2 |
| 8 | – CHANNEL & SPRING SET | 37020377IM | 1 |
| 9 | – SCREW GUIDE | 31208549IM | 2 |
