Valve Inlet 37020419 Replacement
Regular price
₹0.00
Valve Inlet 37020419 Replacement
Regular price
₹0.00
DESCRIPTION
Valve Inlet 37020419 Replacement
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - Valve Inlet -37020419 For Ingersoll Rand Air Compressor - Type-Esv/Esh from India

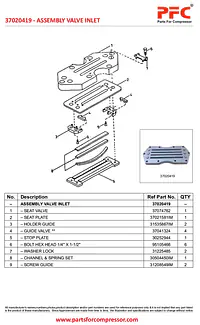

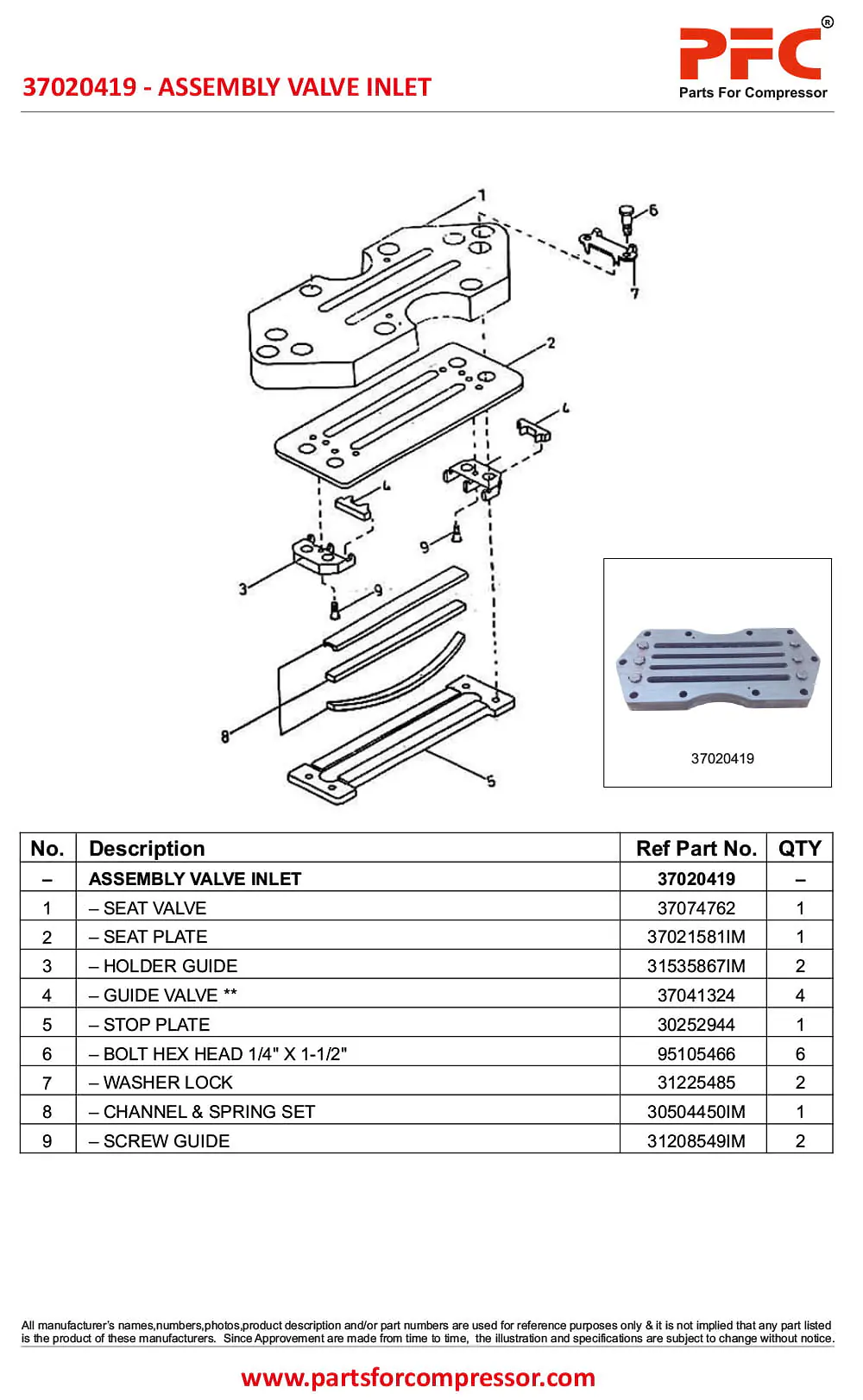

37020419 - ASSEMBLY VALVE INLET
| S.No | Description | Ref Part Nos | Qty |
| – | Assembly Valve Inlet | 37020419 | – |
| 1 | – Seat Valve | 37074762 | 1 |
| 2 | – Seat Plate | 37021581IM | 1 |
| 3 | – Holder Guide | 31535867IM | 2 |
| 4 | – Guide Valve ** | 37041324 | 4 |
| 5 | – Stop Plate | 30252944 | 1 |
| 6 | – Bolt Hex Head 1/4" X 1-1/2" | 95105466 | 6 |
| 7 | – Washer Lock | 31225485 | 2 |
| 8 | – Channel & Spring Set | 30504450IM | 1 |
| 9 | – Screw Guide | 31208549IM | 2 |
