DESCRIPTION
Valve Inlet 8 x 7 NL 37020542 Replacement
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - Valve Inlet 8 x 7 NL 37020542 for Ingersoll Rand Air Compressor - IHE from India.

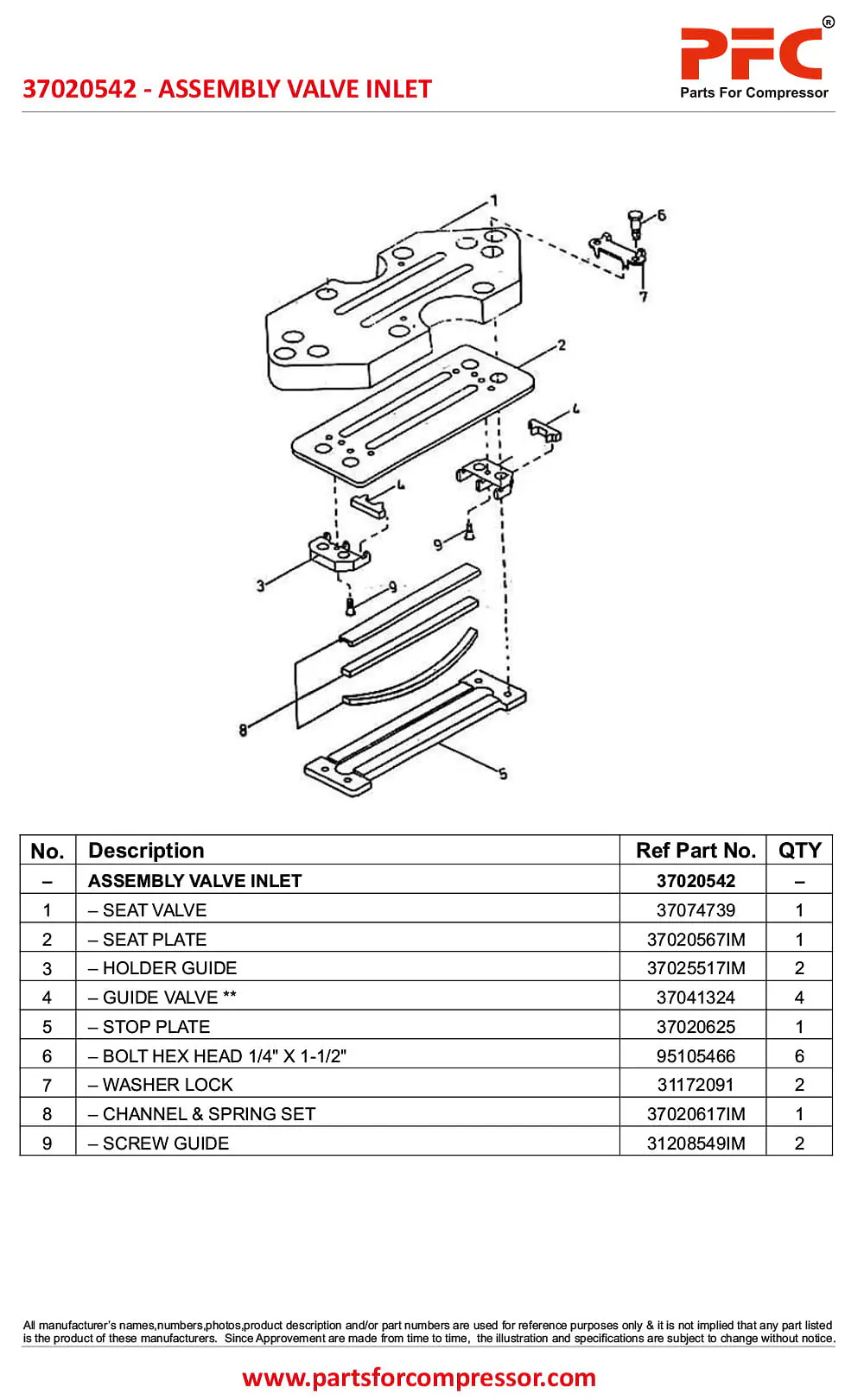

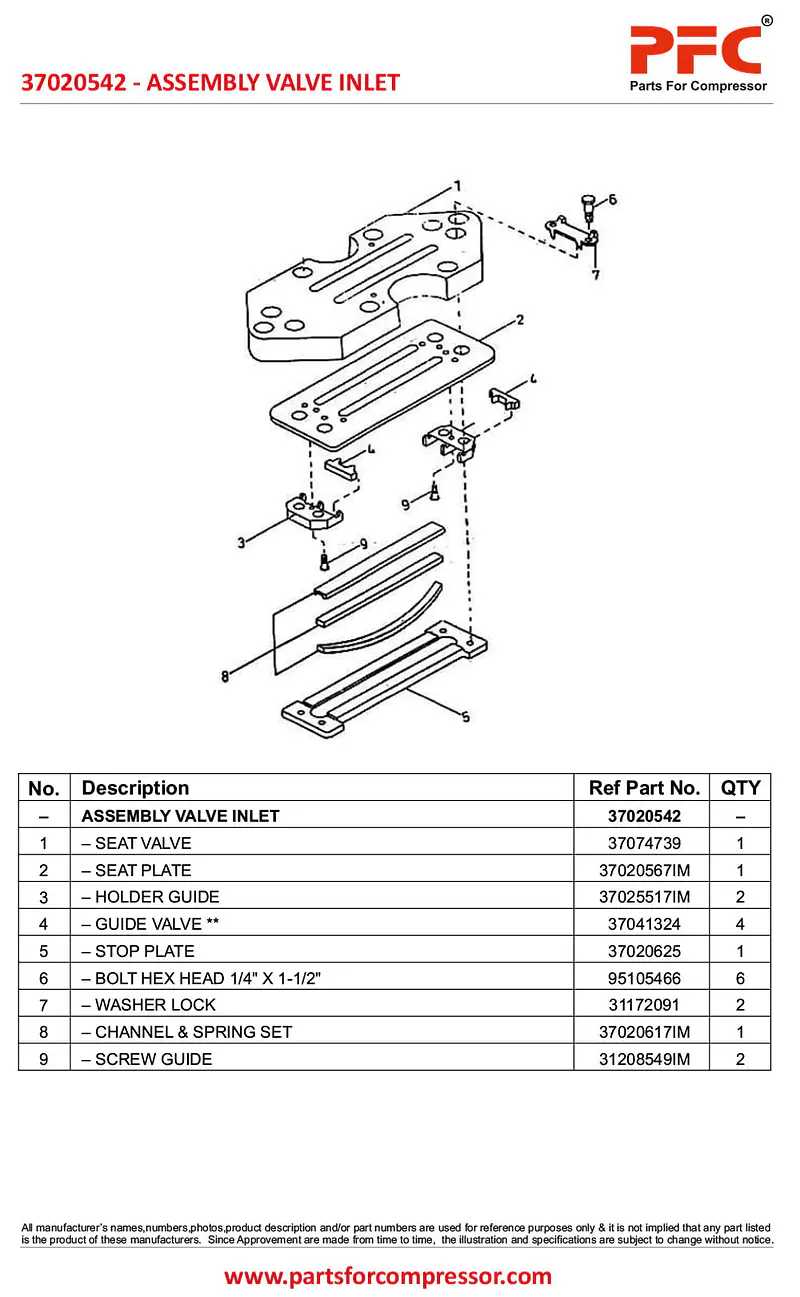

37020542 - ASSEMBLY VALVE INLET
| S.No | Description | Ref Part Nos | Qty |
| – | Assembly Valve Inlet | 37020542 | – |
| 1 | – Seat Valve | 37074739 | 1 |
| 2 | – Seat Plate | 37020567IM | 1 |
| 3 | – Holder Guide | 37025517IM | 2 |
| 4 | – Guide Valve ** | 37041324 | 4 |
| 5 | – Stop Plate | 37020625 | 1 |
| 6 | – Bolt Hex Head 1/4" X 1-1/2" | 95105466 | 6 |
| 7 | – Washer Lock | 31172091 | 2 |
| 8 | – Channel & Spring Set | 37020617IM | 1 |
| 9 | – Screw Guide | 31208549IM | 2 |
