Valve-Inlet Complete A465PC1 Replacement
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - Valve-Inlet Complete A465PC1 - Model 9 1/2 x 7 ESV 1 LUB for Ingersoll Rand Air Compressor - Type-Esv/Esh from India.

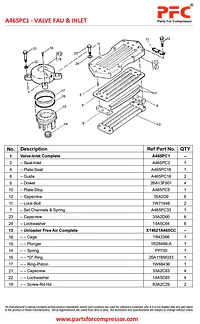

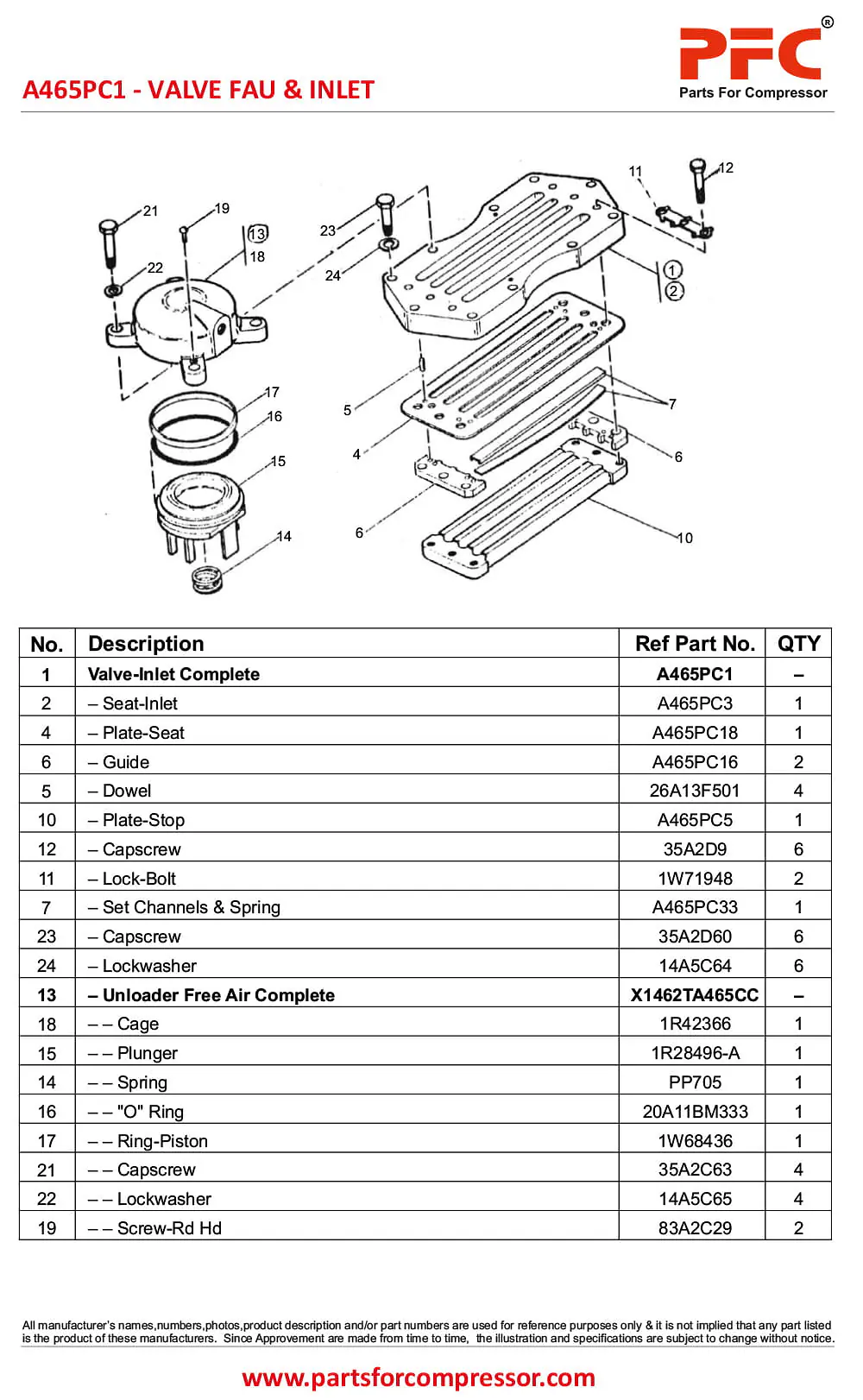

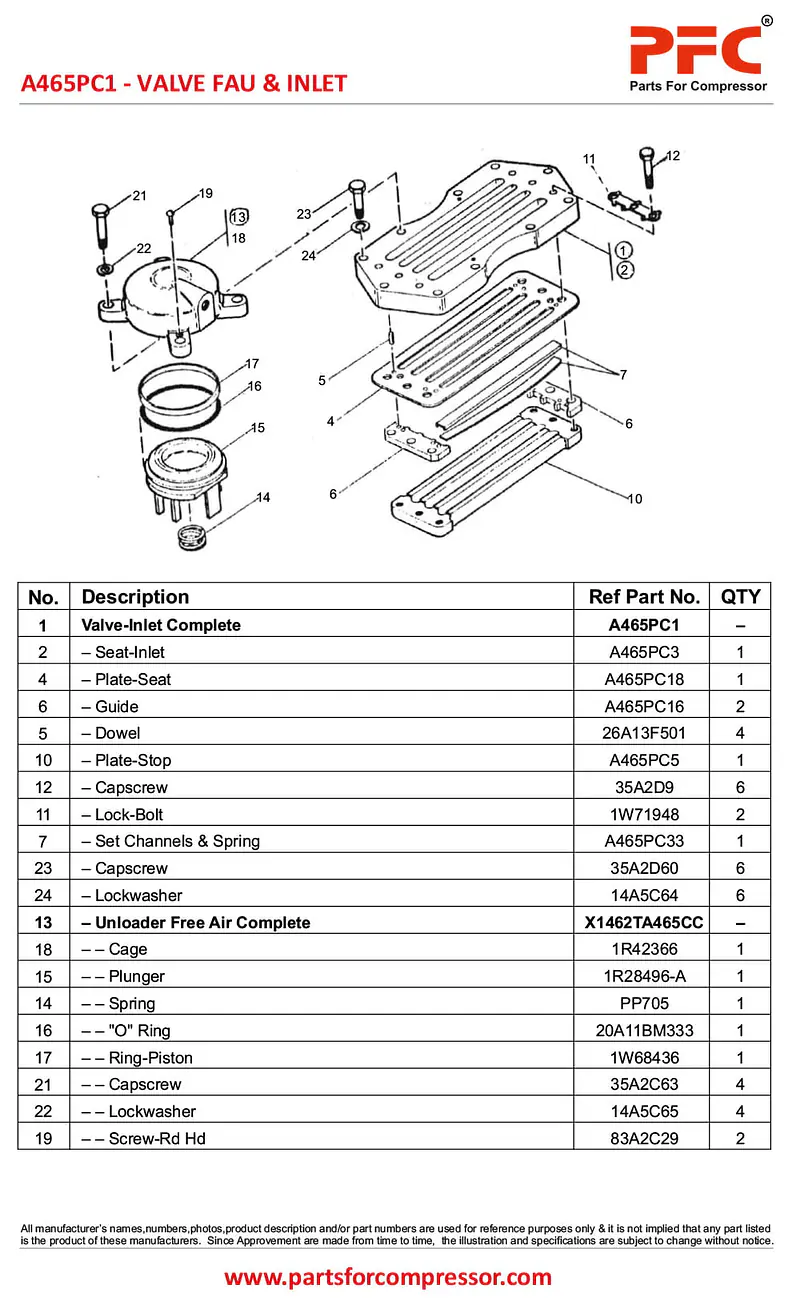

A465PC1 - VALVE FAU & INLET
| Sr. No | Description | Ref. Part Nos | Qty |
| 1 | Valve-Inlet Complete | A465PC1 | – |
| 2 | – Seat-Inlet | A465PC3 | 1 |
| 4 | – Plate-Seat | A465PC18 | 1 |
| 6 | – Guide | A465PC16 | 2 |
| 5 | – Dowel | 26A13F501 | 4 |
| 10 | – Plate-Stop | A465PC5 | 1 |
| 12 | – Capscrew | 35A2D9 | 6 |
| 11 | – Lock-Bolt | 1W71948 | 2 |
| 7 | – Set Channels & Spring | A465PC33 | 1 |
| 23 | – Capscrew | 35A2D60 | 6 |
| 24 | – Lockwasher | 14A5C64 | 6 |
| 13 | Unloader-Free Air Complete | X1462TA465CC | – |
| 18 | – Cage | 1R42366 | 1 |
| 15 | – Plunger | 1R28496-A | 1 |
| 14 | – Spring | PP705 | 1 |
| 16 | – "O" Ring | 20A11BM333 | 1 |
| 17 | – Ring-Piston | 1W68436 | 1 |
| 21 | – Capscrew | 35A2C63 | 4 |
| 22 | – Lockwasher | 14A5C65 | 4 |
| 19 | – Screw-Rd Hd | 83A2C29 | 2 |
