DESCRIPTION
Valve Inlet With U/L 70469820 Replacement
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - Valve Inlet With U/L 70469820 for Chicago Pneumatic Air Compressor from India.

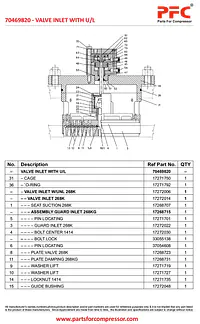

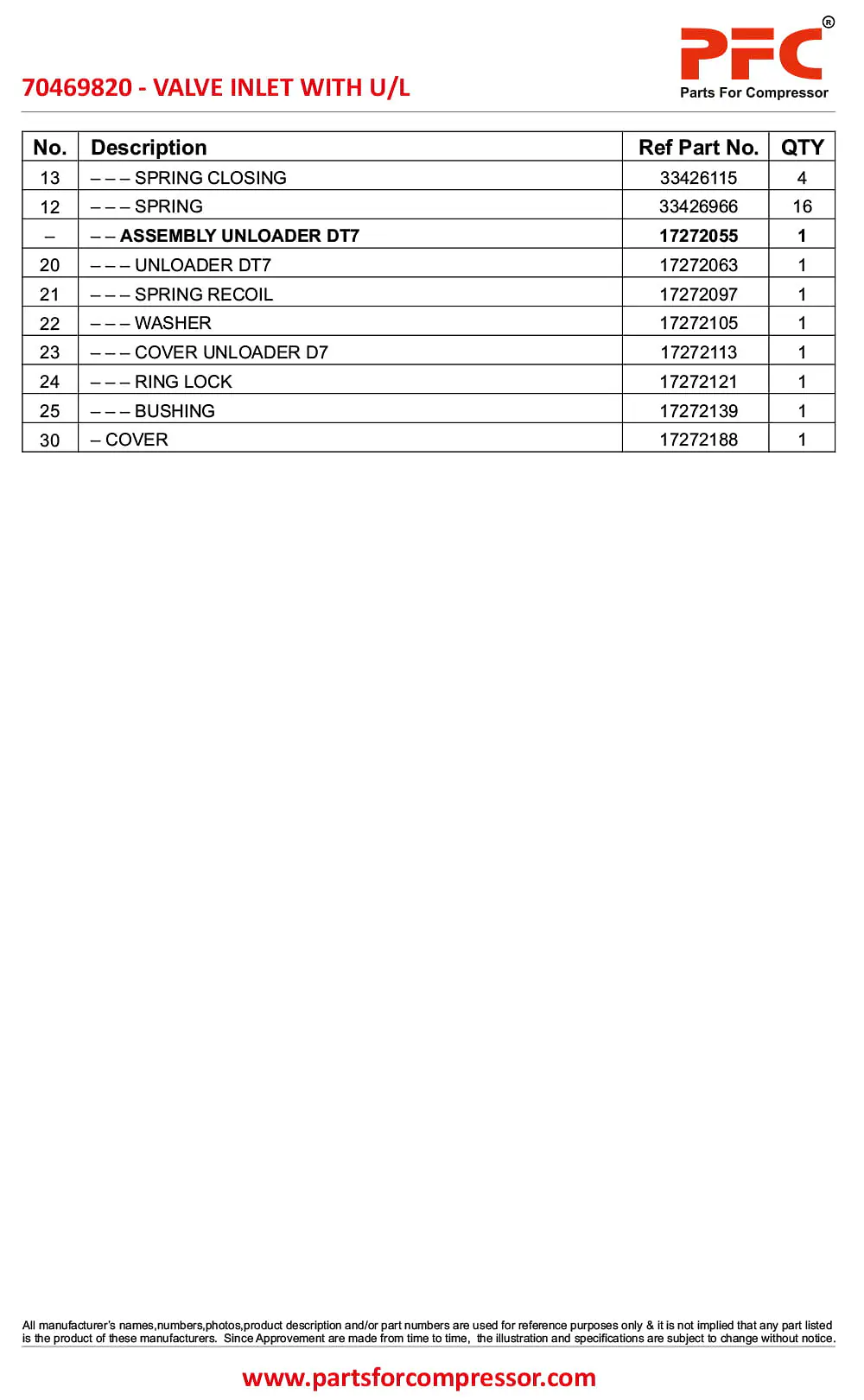

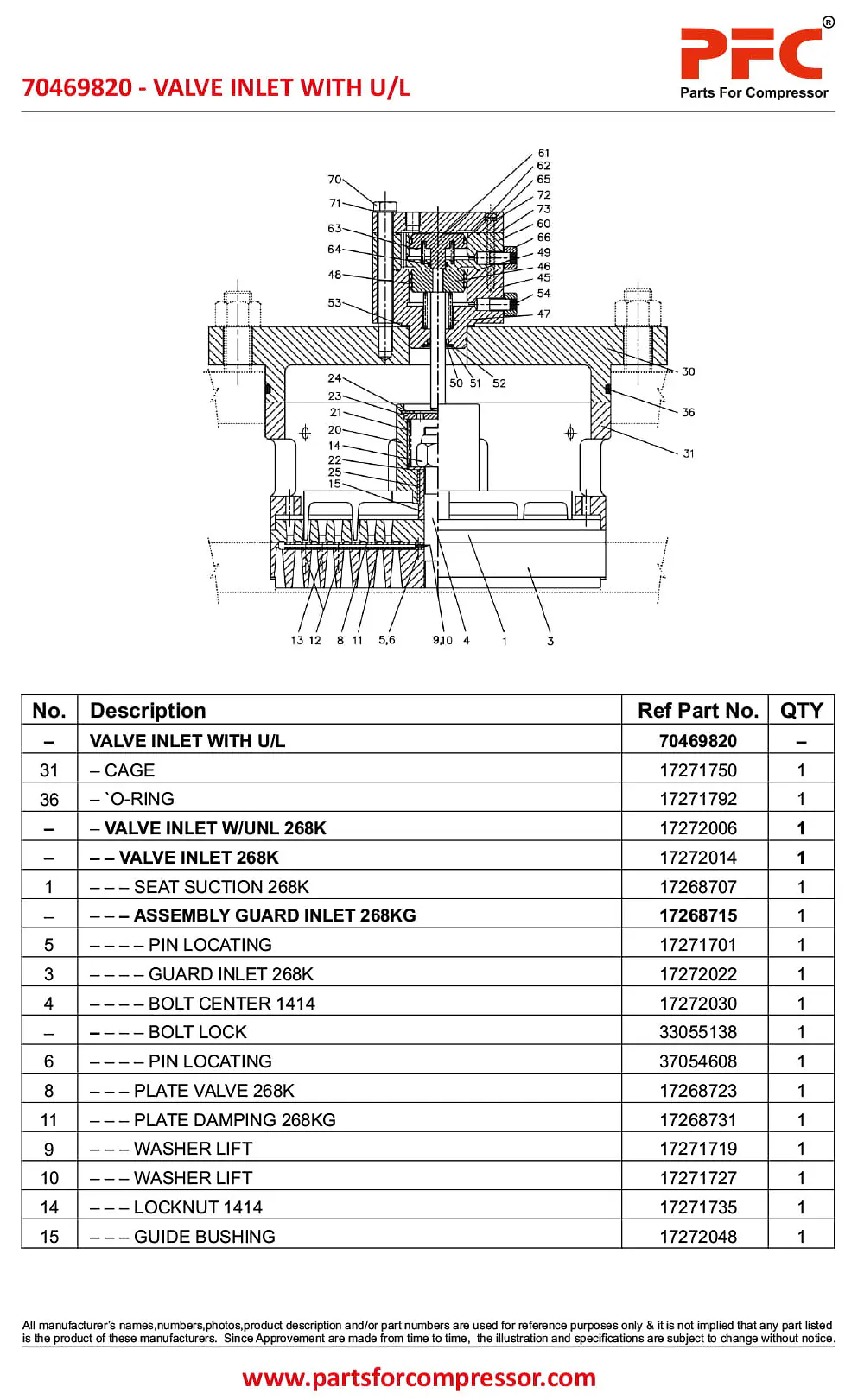

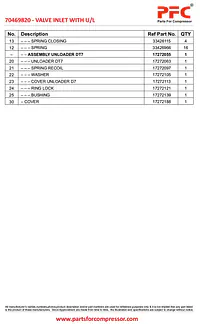

VALVE INLET WITH U/L 70469820
| Sr. No. | Description | Part Number | QTY |
| – | VALVE INLET WITH U/L | 70469820 | – |
| 31 | – CAGE | 17271750 | 1 |
| 36 | – `O-RING | 17271792 | 1 |
| – | – VALVE INLET W/UNL 268K | 17272006 | 1 |
| – | – – VALVE INLET 268K | 17272014 | 1 |
| 1 | – – – SEAT SUCTION 268K | 17268707 | 1 |
| – | – – – ASSEMBLY GUARD INLET 268KG | 17268715 | 1 |
| 5 | – – – – PIN LOCATING | 17271701 | 1 |
| 3 | – – – – GUARD INLET 268K | 17272022 | 1 |
| 4 | – – – – BOLT CENTER 1414 | 17272030 | 1 |
| – | – – – – BOLT LOCK | 33055138 | 1 |
| 6 | – – – – PIN LOCATING | 37054608 | 1 |
| 8 | – – – PLATE VALVE 268K | 17268723 | 1 |
| 11 | – – – PLATE DAMPING 268KG | 17268731 | 1 |
| 9 | – – – WASHER LIFT | 17271719 | 1 |
| 10 | – – – WASHER LIFT | 17271727 | 1 |
| 14 | – – – LOCKNUT 1414 | 17271735 | 1 |
| 15 | – – – GUIDE BUSHING | 17272048 | 1 |
| 13 | – – – SPRING CLOSING | 33426115 | 4 |
| 12 | – – – SPRING | 33426966 | 16 |
| – | – – ASSEMBLY UNLOADER DT7 | 17272055 | 1 |
| 20 | – – – UNLOADER DT7 | 17272063 | 1 |
| 21 | – – – SPRING RECOIL | 17272097 | 1 |
| 22 | – – – WASHER | 17272105 | 1 |
| 23 | – – – COVER UNLOADER D7 | 17272113 | 1 |
| 24 | – – – RING LOCK | 17272121 | 1 |
| 25 | – – – BUSHING | 17272139 | 1 |
| 30 | – COVER | 17272188 | 1 |
