DESCRIPTION
Valve Inlet With U/L 70469846 Replacement
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - Valve Inlet With U/L 70469846 for Chicago Pneumatic Air Compressor from India.

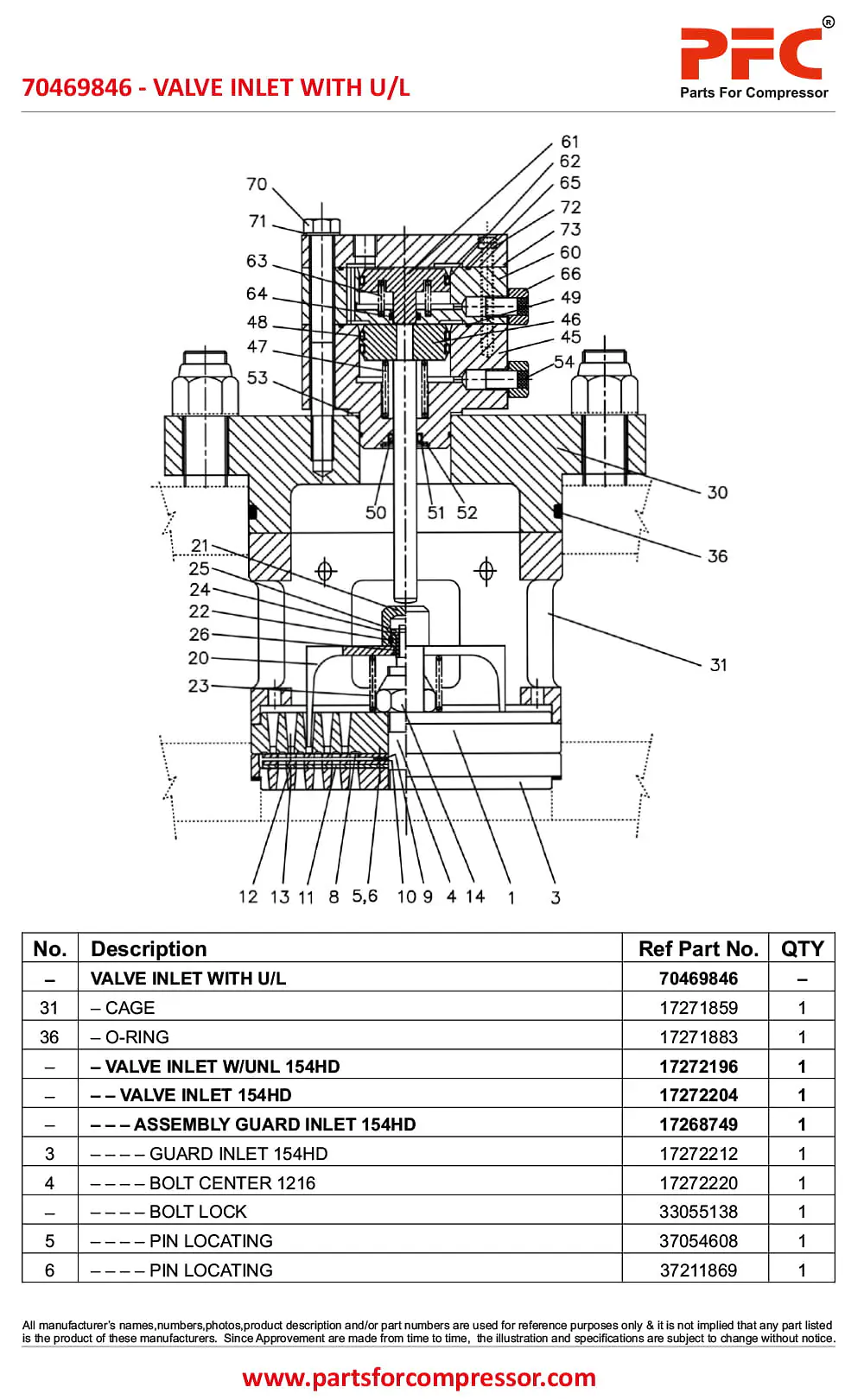

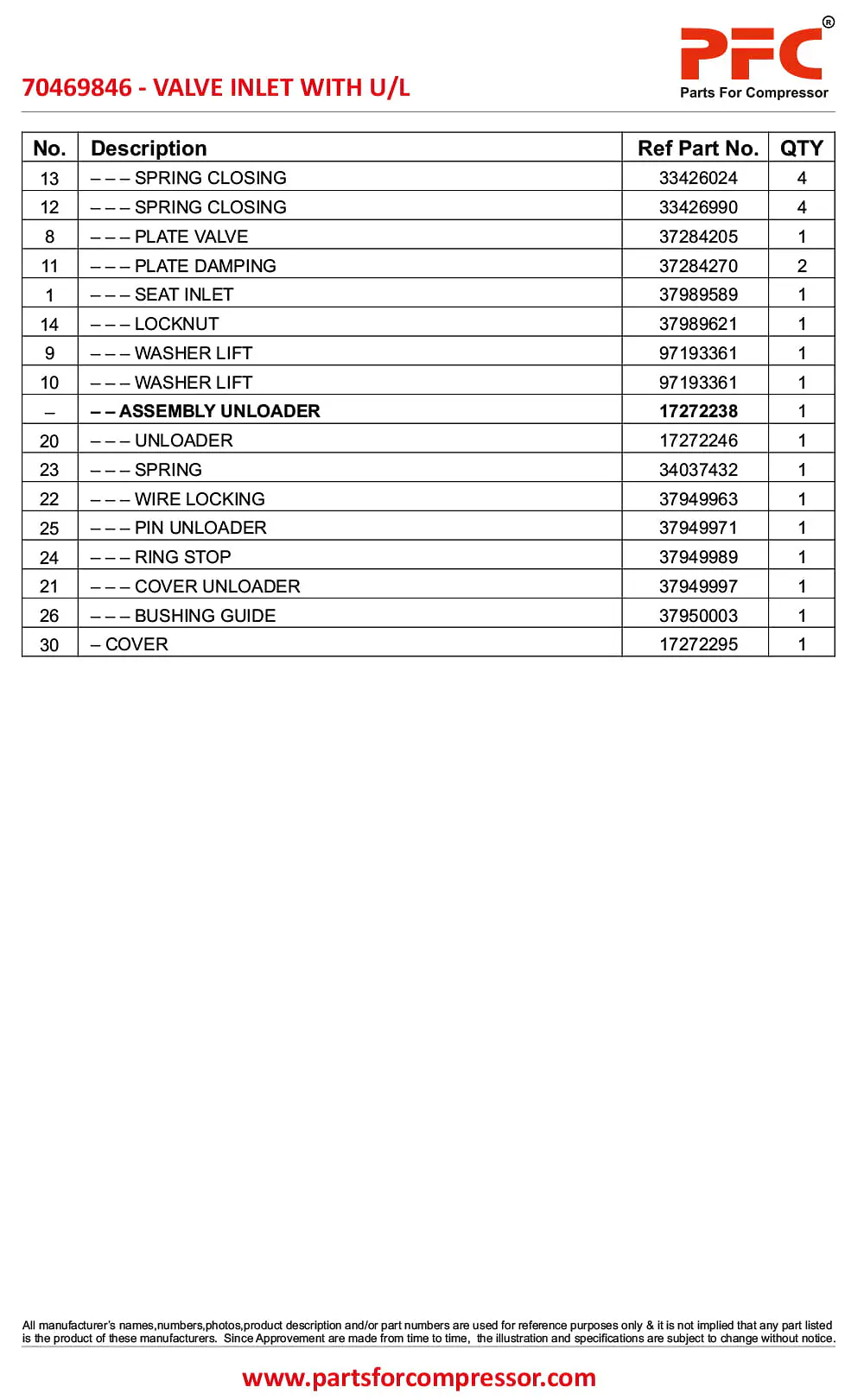

VALVE INLET WITH U/L 70469846
| Sr. No. | Description | Part Number | QTY |
| – | VALVE INLET WITH U/L | 70469846 | – |
| 31 | – CAGE | 17271859 | 1 |
| 36 | – O-RING | 17271883 | 1 |
| – | – VALVE INLET W/UNL 154HD | 17272196 | 1 |
| – | – – VALVE INLET 154HD | 17272204 | 1 |
| – | – – – ASSEMBLY GUARD INLET 154HD | 17268749 | 1 |
| 3 | – – – – GUARD INLET 154HD | 17272212 | 1 |
| 4 | – – – – BOLT CENTER 1216 | 17272220 | 1 |
| – | – – – – BOLT LOCK | 33055138 | 1 |
| 5 | – – – – PIN LOCATING | 37054608 | 1 |
| 6 | – – – – PIN LOCATING | 37211869 | 1 |
| 13 | – – – SPRING CLOSING | 33426024 | 4 |
| 12 | – – – SPRING CLOSING | 33426990 | 4 |
| 8 | – – – PLATE VALVE | 37284205 | 1 |
| 11 | – – – PLATE DAMPING | 37284270 | 2 |
| 1 | – – – SEAT INLET | 37989589 | 1 |
| 14 | – – – LOCKNUT | 37989621 | 1 |
| 9 | – – – WASHER LIFT | 97193361 | 1 |
| 10 | – – – WASHER LIFT | 97193361 | 1 |
| – | – – ASSEMBLY UNLOADER | 17272238 | 1 |
| 20 | – – – UNLOADER | 17272246 | 1 |
| 23 | – – – SPRING | 34037432 | 1 |
| 22 | – – – WIRE LOCKING | 37949963 | 1 |
| 25 | – – – PIN UNLOADER | 37949971 | 1 |
| 24 | – – – RING STOP | 37949989 | 1 |
| 21 | – – – COVER UNLOADER | 37949997 | 1 |
| 26 | – – – BUSHING GUIDE | 37950003 | 1 |
| 30 | – COVER | 17272295 | 1 |
