DESCRIPTION
Valve Inlet With U/L 70469929 Replacement
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - Valve Inlet With U/L 70469929 for Chicago Pneumatic Air Compressor from India.

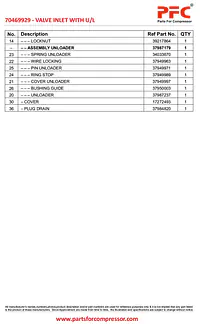

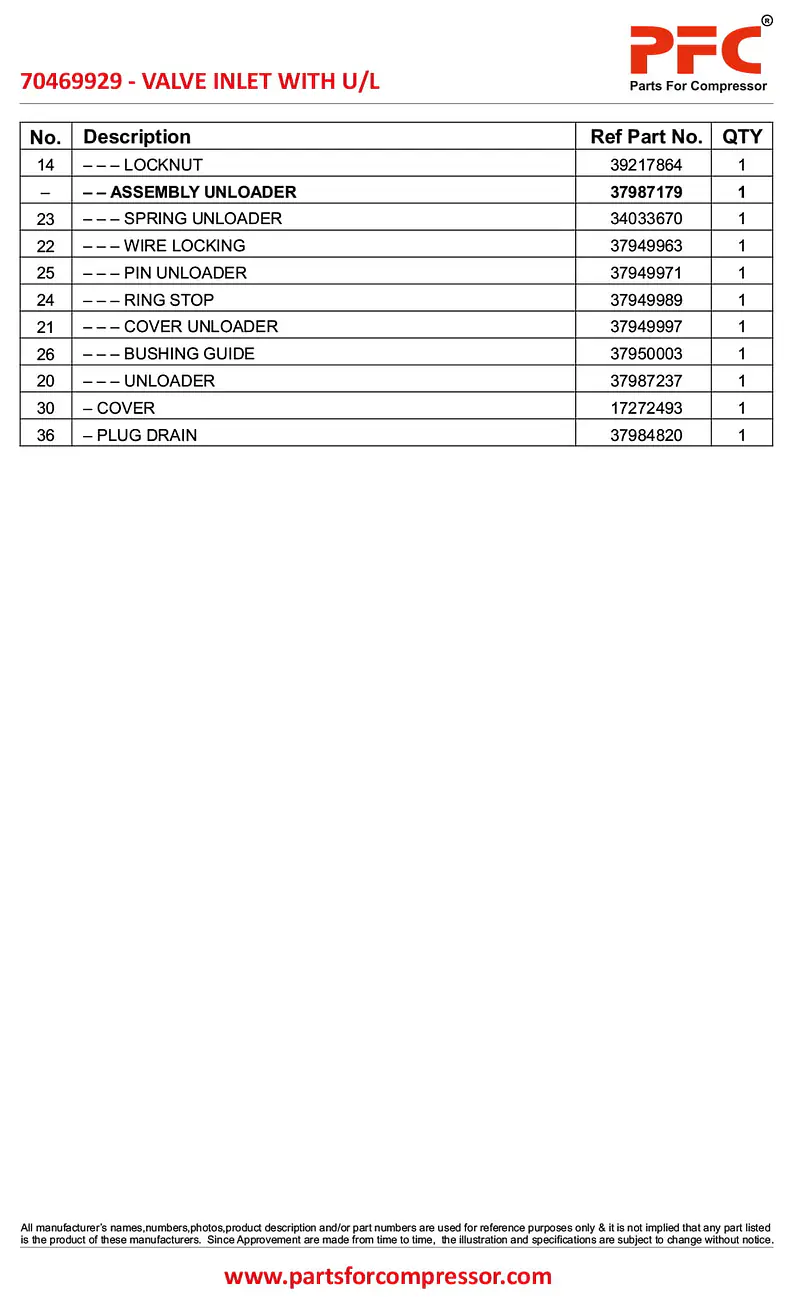

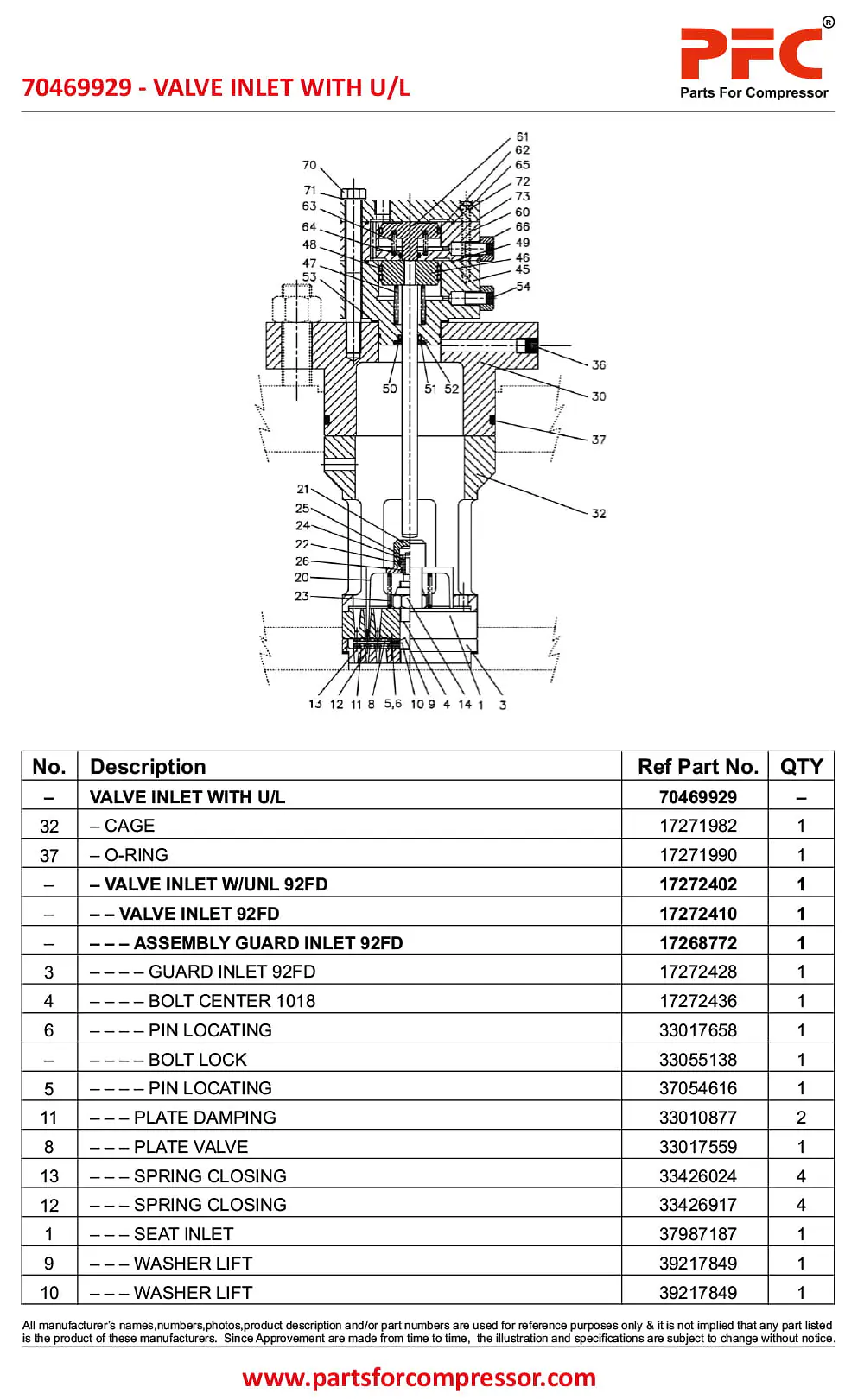

VALVE INLET WITH U/L 70469929
| Sr. No. | Description | Part Number | QTY |
| – | VALVE INLET WITH U/L | 70469929 | – |
| 32 | – CAGE | 17271982 | 1 |
| 37 | – O-RING | 17271990 | 1 |
| – | – VALVE INLET W/UNL 92FD | 17272402 | 1 |
| – | – – VALVE INLET 92FD | 17272410 | 1 |
| – | – – – ASSEMBLY GUARD INLET 92FD | 17268772 | 1 |
| 3 | – – – – GUARD INLET 92FD | 17272428 | 1 |
| 4 | – – – – BOLT CENTER 1018 | 17272436 | 1 |
| 6 | – – – – PIN LOCATING | 33017658 | 1 |
| – | – – – – BOLT LOCK | 33055138 | 1 |
| 5 | – – – – PIN LOCATING | 37054616 | 1 |
| 11 | – – – PLATE DAMPING | 33010877 | 2 |
| 8 | – – – PLATE VALVE | 33017559 | 1 |
| 13 | – – – SPRING CLOSING | 33426024 | 4 |
| 12 | – – – SPRING CLOSING | 33426917 | 4 |
| 1 | – – – SEAT INLET | 37987187 | 1 |
| 9 | – – – WASHER LIFT | 39217849 | 1 |
| 10 | – – – WASHER LIFT | 39217849 | 1 |
| 14 | – – – LOCKNUT | 39217864 | 1 |
| – | – – ASSEMBLY UNLOADER | 37987179 | 1 |
| 23 | – – – SPRING UNLOADER | 34033670 | 1 |
| 22 | – – – WIRE LOCKING | 37949963 | 1 |
| 25 | – – – PIN UNLOADER | 37949971 | 1 |
| 24 | – – – RING STOP | 37949989 | 1 |
| 21 | – – – COVER UNLOADER | 37949997 | 1 |
| 26 | – – – BUSHING GUIDE | 37950003 | 1 |
| 20 | – – – UNLOADER | 37987237 | 1 |
| 30 | – COVER | 17272493 | 1 |
| 36 | – PLUG DRAIN | 37984820 | 1 |
