DESCRIPTION

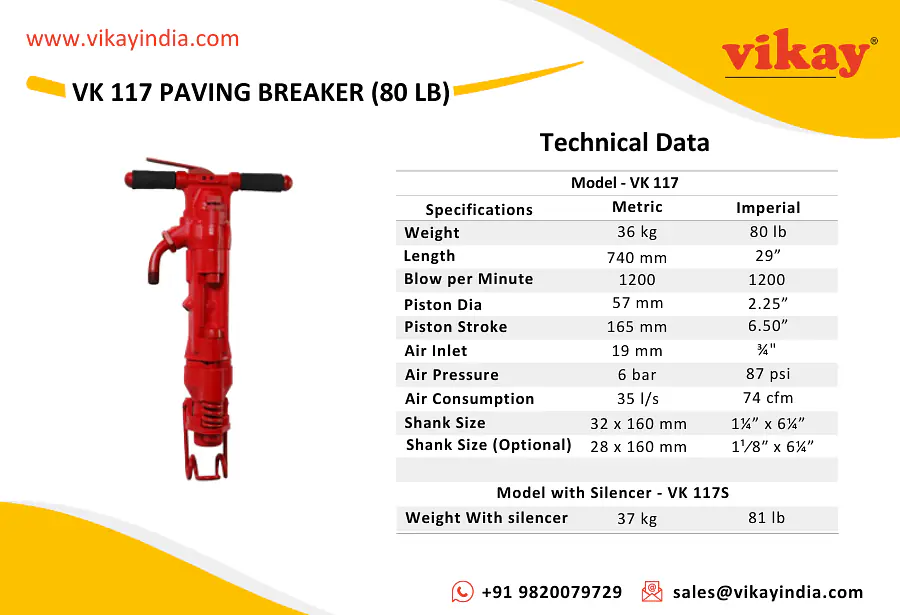

VK 117 Paving Breaker-80lbs
Vikay is a worldwide distributor of VK 117 Paving Breaker-80lbs - CP 117 - technically equivalent to CP 117 suitable for a variety of construction and plant maintenance applications such as breaking heavy concrete, reinforced concrete, frozen ground, macadam, boulders and pavement from India.
Paving Breaker VK 117 (80 lb)
The VK 117 ( 80 lb ) paving breaker technically equivalent to CP 117 Paving breaker addresses the requirements of customers seeking a more conventional style of basic breaker. Featuring low air consumption but delivering powerful blows, these traditional breakers with low blow frequencies are primarily utilized in demanding breaker applications.
The standard tools are available either in a basic version or in a version with a muffler. The mufflers can also be bought separately for retro-fitting. All breakers are available with a choice of different shanks, to accommodate needs from different markets and customers.
Features
- Drop Forged Alloy Steel Body Parts
- Built In Automatic Oiler
- Spring Type Retainers
- Rubber Handle Grips
- Heavy Duty Front Head Spring
Technical Details
Specifications | Metric | Imperial |
Weight | 36 kg | 80 lb |
Length | 740 mm | 29” |
Blow per Minute | 1200 | 1200 |
Piston Dia | 57 mm | 2.25” |
Piston Stroke | 165 mm | 6.50” |
Air Inlet | 19 mm | ¾” |
Air Pressure | 6 bar | 87 psi |
Air Consumption | 35 l/s | 74 cfm |
Shank Size | 32 x 160 mm | 1¼” x 6¼” |
Shank Size (optional) | 28 x 160 mm | 1¹⁄8″ x 6¼” |
# Technically equivalent to CP 0117 Pneumatic Breaker
Since improvement are made from time to time, the illustration and specifications are subject to change without notice.
