VK 117L Paving Breaker-Latch Type-89lb

₹1.00

Pinch to
zoom

Quantity

DESCRIPTION

VK 117L Paving Breaker-Latch Type-89lb

Vikay is a worldwide distributor of VK 117L Paving Breaker-Latch Type-89lb - CP 1170 - technically equivalent to CP 1170 Pneumatic Breaker suitable for a variety of construction and plant maintenance applications from India.



Paving Breaker – VK 117L ( 89 lb )

The VK 117L ( 89 lb) Paving Breaker offers the same reliability and power as the VK 117. This demolition tool features a "latch type retainer" instead of a "spring type retainer," enhancing operator safety. Additionally, it allows for quicker tool changes, thereby saving the operator time.

The standard tools are available either in a basic version or in a version with a muffler. The mufflers can also be bought separately for retro-fitting. All breakers are available with a choice of different shanks, to accommodate needs from different markets and customers.

Applications

  • Medium to heavy demolition works
  • Breaking of Asphalt and Rock outcrop
  • Digging of hard clay and literate trenching work

Features

  • Latch Type Retainers
  • Drop Forged Steel Body Parts
  • Built In Automatic Oiler
  • Rubber Handle Grips

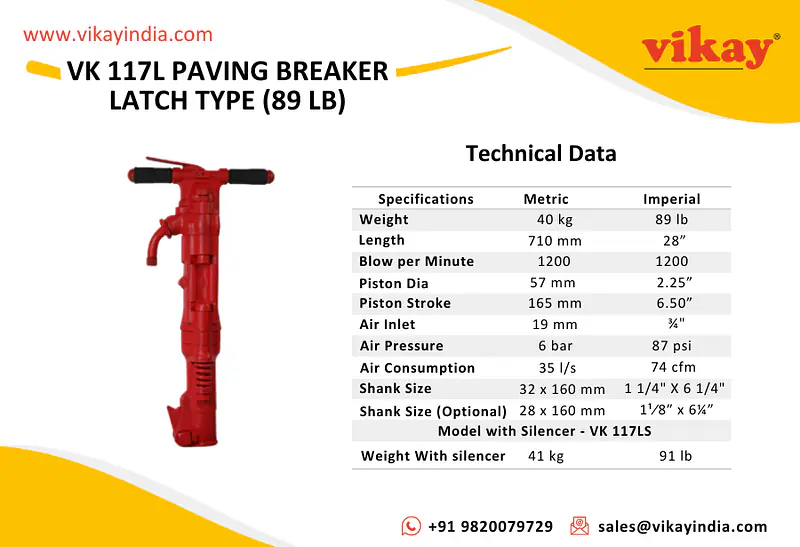

Technical Data

SpecificationsMetricImperial
Weight 40 kg89 lb
Length710 mm28”
Blow per Minute12001200
Piston Dia57 mm2.25”
Piston Stroke165 mm6.50”
Air Inlet19 mm¾”
Air Pressure6 bar87 psi
Air Consumption35 l/s74 cfm
Shank Size32 x 160 mm1¼” x 6¼”
Shank Size (Optional)28 x 160 mm1¹⁄8″ x 6¼”

# Technically equivalent to CP 1170 Latch Type Pneumatic Breaker
