DESCRIPTION
VK 117LS Paving Breaker Latch Type w Silencer-91lb
Vikay is a worldwide distributor of VK 117LS Paving Breaker Latch Type w Silencer-91lb - CP 1170S - technically equivalent to CP 1170S Pneumatic Breaker suitable for a variety of construction and plant maintenance applications from India.
Paving Breaker – VK 117LS ( 91 lb )
The VK 117LS ( 91 lb) Paving Breaker offers the same reliability and power as the VK 117. This demolition tool features a "latch type retainer" instead of a "spring type retainer," enhancing operator safety. Additionally, it allows for quicker tool changes, thereby saving the operator time.
The standard tools are available either in a basic version or in a version with a muffler. The mufflers can also be bought separately for retro-fitting. All breakers are available with a choice of different shanks, to accommodate needs from different markets and customers.
Applications
- Medium to heavy demolition works
- Breaking of Asphalt and Rock outcrop
- Digging of hard clay and literate trenching work
Features
- Latch Type Retainers
- Drop Forged Steel Body Parts
- Built In Automatic Oiler
- Rubber Handle Grips

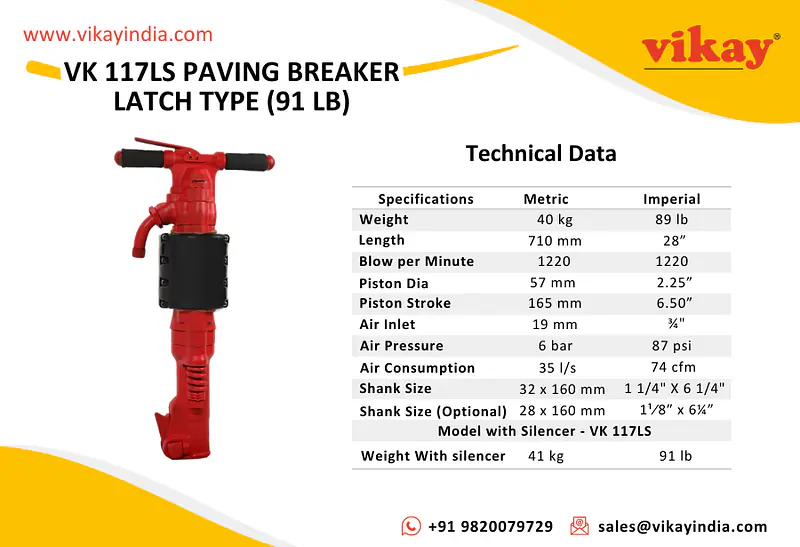

Technical Data
| Specifications | Metric | Imperial |
| Weight Without Silencer | 40 kg | 89 lb |
| Weight With Silencer ( VK 117LS ) | 41 kg | 91 lb |
| Length | 710 mm | 28” |
| Blow per Minute | 1200 | 1200 |
| Piston Dia | 57 mm | 2.25” |
| Piston Stroke | 165 mm | 6.50” |
| Air Inlet | 19 mm | ¾” |
| Air Pressure | 6 bar | 87 psi |
| Air Consumption | 35 l/s | 74 cfm |
| Shank Size | 32 x 160 mm | 1¼” x 6¼” |
| Shank Size (Optional) | 28 x 160 mm | 1¹⁄8″ x 6¼” |
# Technically equivalent to CP 1170S Latch Type Pneumatic Breaker
