VK 117S Paving Breaker-81lb
₹1.00
VK 117S Paving Breaker-81lb
₹1.00
DESCRIPTION
VK 117S Paving Breaker-81lb
Vikay is a worldwide distributor of VK 117S Paving Breaker-81lb - CP 117S - technically equivalent to CP 117S Pneumatic Breaker suitable for a variety of construction and plant maintenance applications from India.
Paving Breaker – VK 117S ( 81 lb )
The VK 117S ( 81 lb) paving breaker technically equivalent to CP 117S paving breaker addresses the requirements of customers seeking a more conventional style of basic breaker. Featuring low air consumption but delivering powerful blows, these traditional breakers with low blow frequencies are primarily utilized in demanding breaker applications.
The standard tools are available either in a basic version or in a version with a muffler. The mufflers can also be bought separately for retro-fitting. All breakers are available with a choice of different shanks, to accommodate needs from different markets and customers.
Applications
- Medium to heavy demolition works
- Breaking of Asphalt and Rock outcrop
- Digging of hard clay and literate trenching work
Features
- Drop Forged Alloy Steel Body Parts
- Built In Automatic Oiler
- Spring Type Retainers
- Rubber Handle Grips
- Heavy Duty Front Head Spring

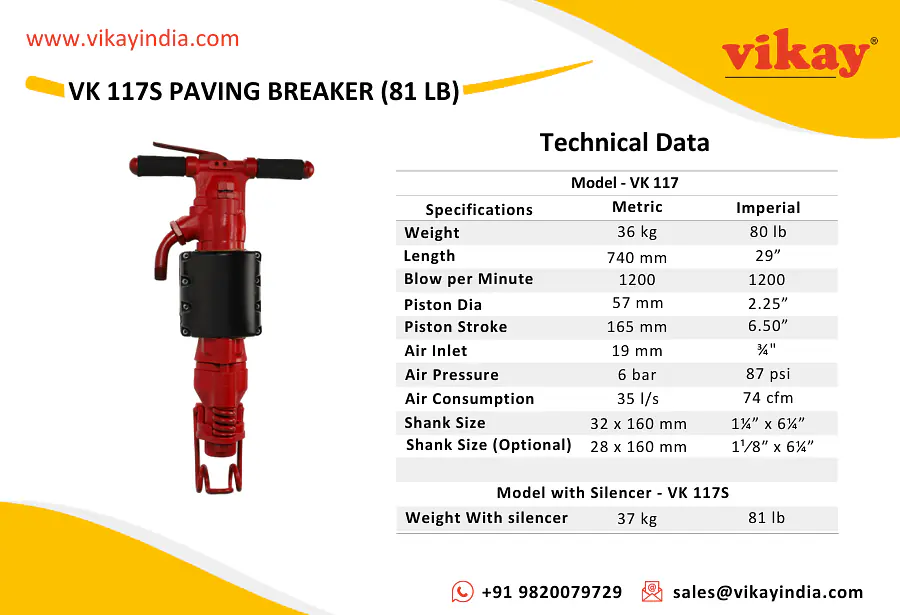

Technical Data
| Specifications | Metric | Imperial |
| Weight Without Silencer | 36 kg | 80 lb |
| Weight With Silencer ( VK 117S ) | 37 kg | 81 lb |
| Length | 740 mm | 29” |
| Blow per Minute | 1200 | 1200 |
| Piston Dia | 57 mm | 2.25” |
| Piston Stroke | 165 mm | 6.50” |
| Air Inlet | 19 mm | ¾” |
| Air Pressure | 6 bar | 87 psi |
| Air Consumption | 35 l/s | 74 cfm |
| Shank Size | 32 x 160 mm | 1¼” x 6¼” |
| Shank Size (optional) | 28 x 160 mm | 1¹⁄8″ x 6¼” |
# Technically equivalent to CP 117S Pneumatic Breaker
