DESCRIPTION

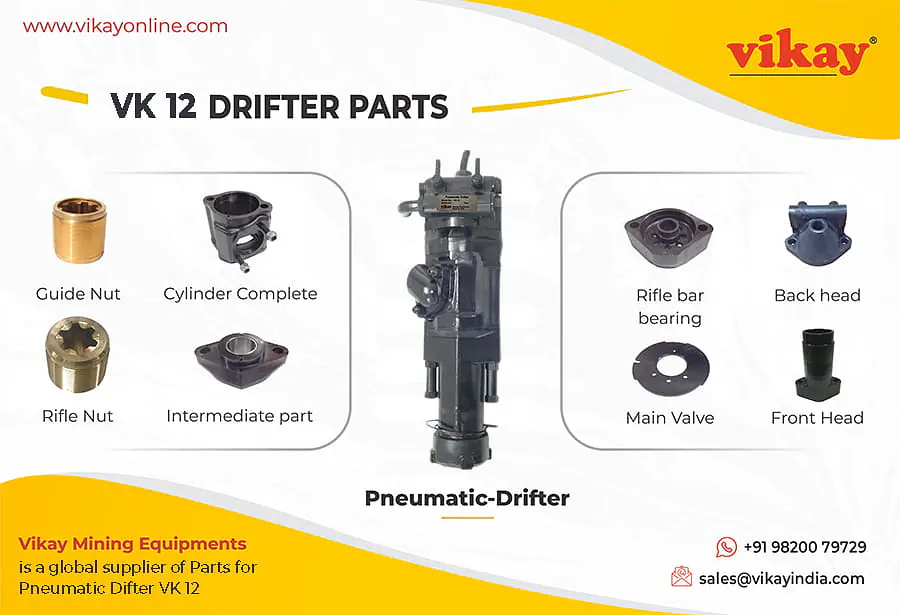

Pneumatic Drifter VK-12 Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement Parts for Vikay Pneumatic Drifter Model VK-12 from India
Product
- Page 1
- 2
1. Pneumatic Drifter Model VK-12
| No. | Description | Ref. Part No. |
| 1 | Cover | 3161023000 |
| 2 | Lock Spring | 3161099300 |
| 3 | Stop Ring | 3161021500 |
| 4 | Rotation Chuck | 3161021600 |
| 5 | Front Head | 3161023100 |
| 6A(6-8) | Rotation Chuck Complete | 3161032880 |
| 6 | Rotation Chuck | |
| 7 | Rotation Chuck Bushing | 3161021800 |
| 8 | Guide Nut | 3161032900 |
| 9 | Nut | 3141007200 |
| 10 | Nut | 3141007100 |
| Nut (0072 & 0071) | ||
| Intermediate part, compl | 3161081980 | |
| 11A(11-12) | Intermediate part, | |
| 12 | Bushing | 3161023500 |
| 13A(13-14) | Piston with rifle nut, compl | 3161030780 |
| 13 | Piston | |
| 14 | Rifle nut | 3161030800 |
| 15 | Nut | 291111400 |
| 16 | Exhaust guard | 3115012200 |
| 17A(17-18) | Cylinder, compl | 3161052480 |
| 17 | Cylinder | |
| 18 | Stud | 196148100 |
| 19A(19-20) | Cover with guide pin, compl | 3141008780 |
| 19 | Cover | |
| 20 | Guide pin | 3141008800 |
| 21 | Main Valve | 3161033300 |
| 22 | Rifle bar bearing | 3141009000 |
| 23 | Rifle bar | 3161036900 |
| 24 | Pawl | 3161037000 |
| 25 | Pawl pin | 3141008300 |
| 26 | Pawl spring | 3115077400 |
| 27 | Damper | 3161052500 |
| 28 | Ratchet box | 3161037700 |
| 29 | Pawl lifting ring | 3161037800 |
| 30 | Coupling nut | 9000033500 |
| 31 | Hose Nipple | 9000017700 |
| 32 | Adapter | 9000048500 |
| 33 | Adapter | 3000992200 |
| 34 | Inlet nipple | 3161007000 |
| 35 | O-Ring | 663213200 |
| 36 | Back head | 3141009300 |
| 37 | Pressure screw | 3161082000 |
| 38 | Banjo connection | 3161022900 |
| 39 | Plug | 3161006900 |
| 40 | Operating piston | 3141009500 |
| 41 | Spring guide | 3141009600 |
| 42 | Pressure spring | 3141009700 |
| 43 | O-Ring | 663213200 |
| 44 | Plug | 3141009800 |
| 45 | Gasket | 3121047700 |
| 46 | Side bolt | 3141007000 |
| 47 | Nut | 3141022400 |
| 48 | Water flushing tube | 3161037600 |
| 49 | Adapter | 3161082100 |
| 50 | O-Ring | 663212400 |
| 51 | Hose Nipple | 3161082200 |
| 52 | Coupling nut | 3161082300 |
2. Optional
| No. | Description | Ref. Part No. |
| - | Parts For Sealed Chuck 32 mm (1 1/4) Leyner Shank | |
| 3 | Stop Ring | 3161038300 |
| 4 | Rotation Chuck | 3161038200 |
| - | Rotation Chuck Complete | 3161032881 |
| 6 | - Rotation Chuck | |
| 7 | - Rotation Chuck bushing | 3161022600 |
| 8 | - Guide Nut | 3161032900 |
| - | ||
| - | Only For Air Flushing | |
| - | Air Flushing Tube | 3161046600 |
| - | - | |
| - | Parts To Adjustable Exhaust Connection For 64 mm | |
| - | (2 -½-) Hose, Especially For Simba | |
| - | Rubber Ring | 3161074200 |
| - | Nipple | 3161040800 |
| - | Lock Ring | 3161074100 |
| - | - | - |
| - | Parts For Protecting When Drilling Upwards | - |
| - | Rubber hood | 3161022600 |
| For VK 12FZ | ||
| 1 | Cover | 3115223900 |
| 2 | O-Ring | 0663614500 |
| 3 | Front Head | 3115229100 |
| 4 | Side Bolt | 3115224000 |
| 5 | Washer | 3115028700 |
| 6 | Dome Nut | 3115028600 |
