VK 1230S Paving Breaker-66lb

₹1.00

Pinch to
zoom

Quantity

DESCRIPTION

VK 1230S Paving Breaker-66lb

Vikay is a worldwide distributor of VK 1230S Paving Breaker-66lb - CP 1230S - technically equivalent to CP 1230S Pneumatic Breaker suitable for breaking heavy and reinforced concrete, frozen ground, asphalt, boulders and pavement from India.

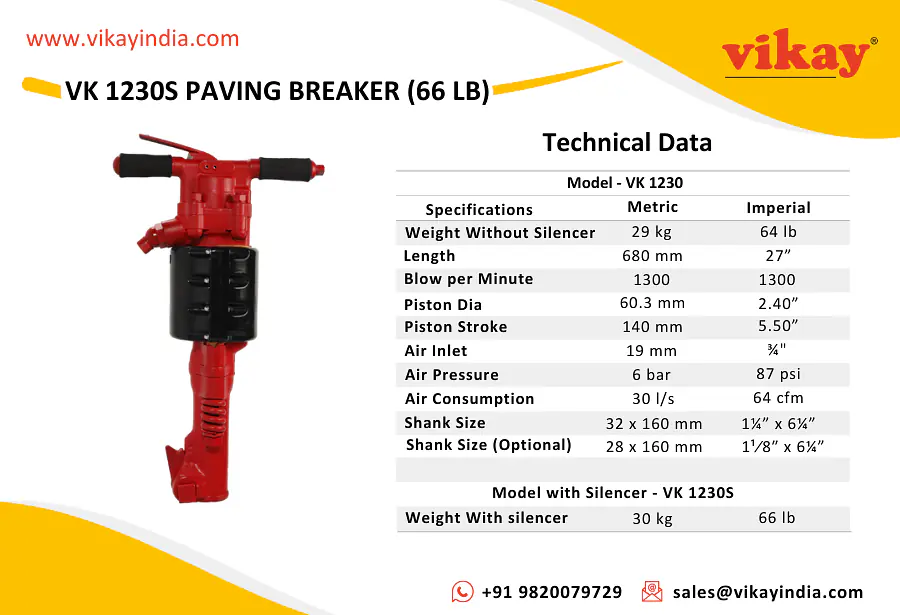

Paving Breaker – VK 1230S ( 66 lb )

The VK 1230S ( 66 lb ) technically equivalent to CP 1230S series of demolition tools are engineered to provide the strength and resilience required for a wide range of demanding construction and plant maintenance tasks. These include breaking reinforced concrete, tackling heavy road works, cutting through tarmac, working with frozen ground, handling non-consolidated rock, and performing general demolition duties.

The standard tools are available either in a basic version or in a version with a muffler. The mufflers can also be bought separately for retro-fitting. All breakers are available with a choice of different shanks, to accommodate needs from different markets and customers.

Features

  • Alloy steel forgings – for excellent durability
  • Four-bolt back head – withstands rugged use
  • Integral oiler – provides continuous lubrication
  • Reversible piston – reduces maintenance cost
  • Air inlet swivel – for easy manoeuvrability
  • In addition to the standard units, there are also silence versions (S models)* and versions with extra vibration dampening (SVR models)*.

Technical Data

SpecificationsMetricImperial
Weight Without Silencer29 Kg64 lb
Weight With Silencer ( VK 1230S )30 Kg66 lb
Length680 mm27”
Blow per Minute13001300
Piston Dia60.3 mm2.40”
Piston Stroke140 mm5.50”
Air Inlet19 mm¾
Air Pressure6 bar87 psi
Air Consumption30 I/s64 cfm
Shank Size32 x 160 mm1¼” x 6¼”
Shank Size (optional)28 x 160 mm1¹⁄8″ x 6¼”

# Technically equivalent to CP 1230S Pneumatic Breaker
