VK 1240 Paving Breaker-86lb

₹1.00

Pinch to
zoom

Quantity

DESCRIPTION

VK 1240 Paving Breaker-86lb

Vikay is a worldwide distributor of VK 1240 Paving Breaker-86lb - CP 1240 - technically equivalent to CP 1240 Pneumatic Breaker suitable for breaking heavy and reinforced concrete, frozen ground, asphalt, boulders and pavement from India.



Paving Breaker – VK 1240 ( 86 lb )

The VK 1240 ( 86 lb ) technically equivalent to CP 1240 series of demolition tools are engineered to provide the strength and resilience required for a wide range of demanding construction and plant maintenance tasks. These include breaking reinforced concrete, tackling heavy road works, cutting through tarmac, working with frozen ground, handling non-consolidated rock, and performing general demolition duties.

The standard tools are available either in a basic version or in a version with a muffler. The mufflers can also be bought separately for retro-fitting. All breakers are available with a choice of different shanks, to accommodate needs from different markets and customers.

Features

  • Alloy steel forgings – for excellent durability
  • Four-bolt back head – withstands rugged use
  • Integral oiler – provides continuous lubrication
  • Reversible piston – reduces maintenance cost
  • Air inlet swivel – for easy manoeuvrability
  • In addition to the standard units, there are also silence versions (S models)* and versions with extra vibration dampening (SVR models)*.

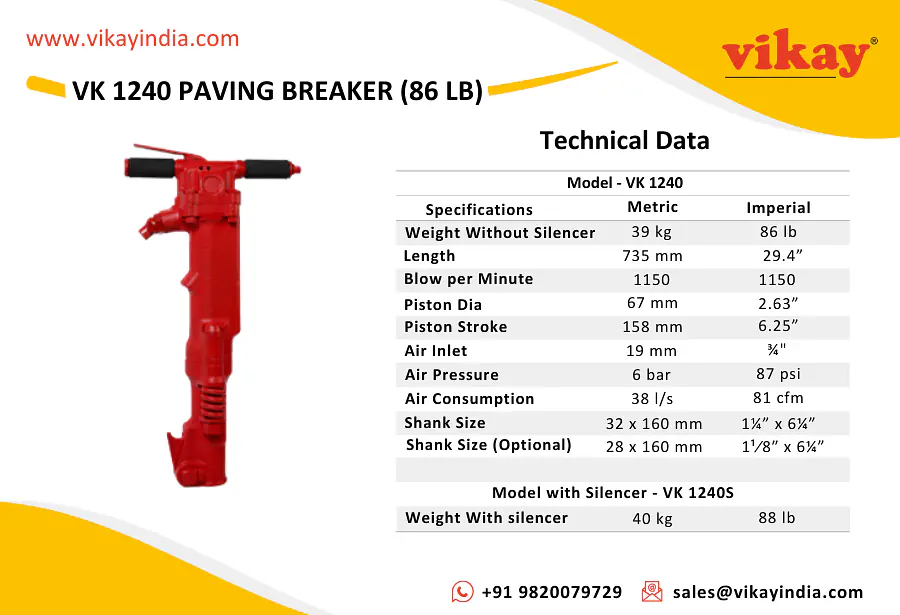

Technical Data

SpecificationsMetricImperial
Weight 39 Kg86 lb
Weight With Silencer ( VK 1240S )40 Kg88 lb
Length735 mm29.4”
Blow per Minute11501150
Piston Dia67 mm2.63”
Piston Stroke158 mm6.25”
Air Inlet19 mm¾”
Air Pressure6 bar87 psi
Air Consumption38 I/s81 cfm
Shank Size32 x 160 mm1¼″ x 6¼″
Shank Size (optional)28 x 160 mm1¹⁄8″ x 6¼″

# Technically equivalent to CP 1240 Pneumatic Breaker
