VK 310 Mucking Loader

₹0.00

Pinch to
zoom

Quantity

DESCRIPTION

VK 310 Mucking Loader (Cavo 310 Loader Dumper)



VK 310 Mucking Loader equivalent to Atlas Copco Cavo 310 Loader Dumper is designed for efficient material handling in mining operations.VK 310 Mucking Loader automates the process of filling mining chutes with raw materials, minimizing the need for manual labor. With the Vikay Mucking Loader 310, a single operator can effortlessly manage loading, transport, and unloading tasks. A robust air cylinder ensures powerful and reliable unloading of materials from the loader.

Features

  • Four-wheel drive for smooth movement, and stepless steering

  • Equipped with 4+1 rubber-tube tyre wheels

  • Allows a single operator to manage loading, haulage, and dumping with ease

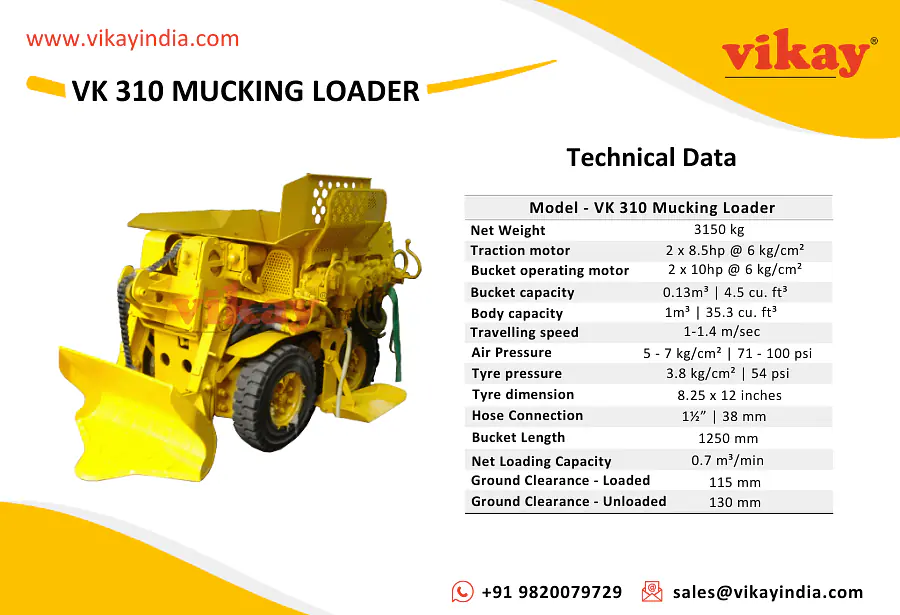

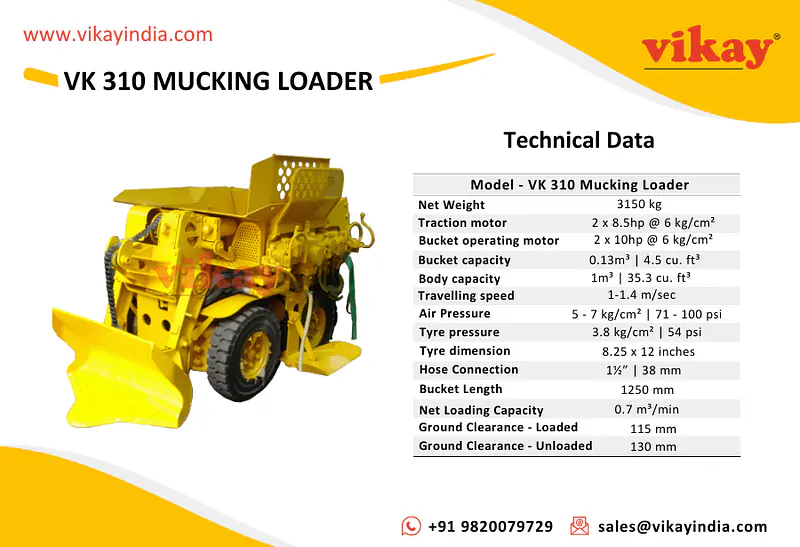

Technical Details

Net Weight3150 kg
Traction motor2 x 8.5hp @ 6 kg/cm²
Bucket operating motor2 x 10hp @ 6 kg/cm²
Bucket capacity0.13m³ | 4.5 cu. ft³
Body capacity1m³ | 35.3 cu. ft³
Travelling speed1-1.4 m/sec
Air Pressure5-7 kg/cm² | 71-100 psi
Tyre pressure3.8 kg/cm² | 54 psi
Tyre dimension8.25 x 12 inches
Hose Connection1½" | 38 mm
Bucket Length1250 mm
Net Loading Capacity0.7 m³/min
Ground Clearance - Loaded115 mm
Ground Clearance - Unloaded130 mm
