VK 4125 Chipping Hammer
₹1.00
VK 4125 Chipping Hammer
₹1.00
DESCRIPTION
VK 4125 Chipping Hammer
Vikay is a worldwide distributor of VK 4125 Chipping Hammer - CP 4125 technically equivalent to CP 4125 Pneumatic Chippers suitable for wide variety of construction and industrial applications, from light to medium chipping to heavy cutting from India.
Chipping Hammer – VK 4125 ( 17 lb )
VK 4125 chipping hammers are a durable tool which has been designed for rugged use in foundries, Shipyard, Refineries, fabrication shops and construction applications. It is also used at industrial applications including chipping and scaling. The different stroke versions offer the power necessary for a variety of applications from light to medium chipping & trimming through heavy cutting. This chipping hammer comes with 2,3,4 cylinder option along with round & hex bush options. It comes with pistol handle outside trigger.
Features
- Heat treated cylinder
- Spline locking to prevent loosening of handle or cylinder
- Powerful, yet compact and light - weight
- Rugged construction, hardened steel cylinder and handle
- Teasing throttle for precise control
- Pistol grip handle with self-closing outside trigger
- Available in 2”, 3” or 4” cylinder stroke version

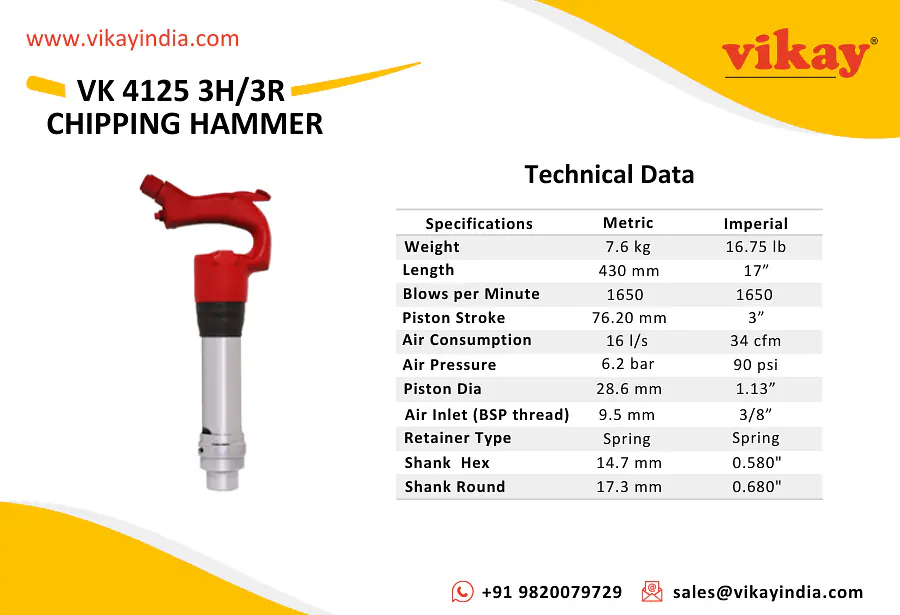

Technical Data
| Specifications | Metric | Imperial |
| Weight | 7.6 kg | 16.75 lb |
| Length | 430 mm | 17" |
| Blows per minute | 1650 | 1650 |
| Piston stroke | 76.20 mm | 3" |
| Air consumption | 16 l/s | 34 cfm |
| Air pressure | 6.2 bar | 90 psi |
| Piston dia | 28.6 mm | 1.13" |
| Air inlet (BSP thread) | 9.5 mm | 3/8" |
| Retainer type | Spring | Spring |
| Shank Hex | 14.7 mm | 0.580" |
| Shank Round | 17.3 mm | 0.680" |

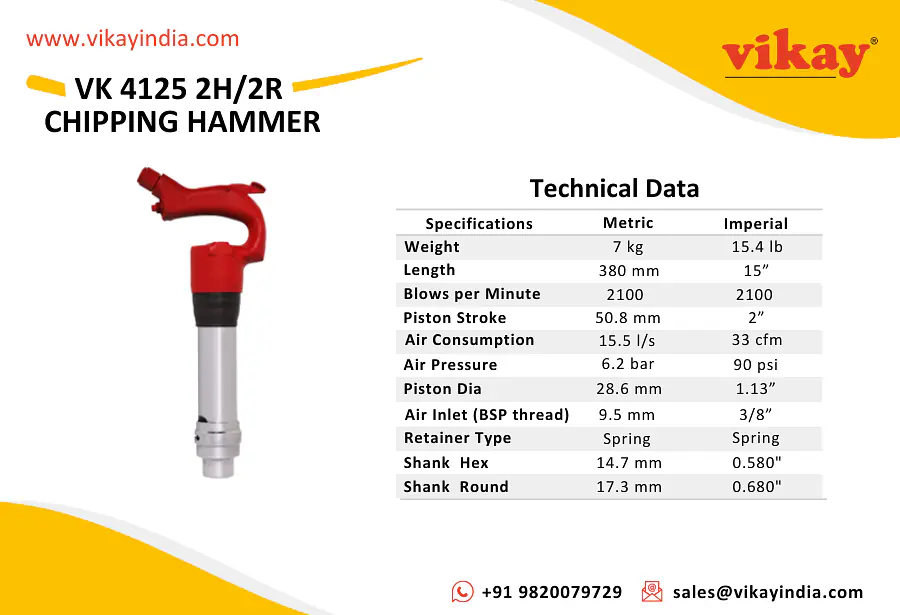

| Model | VK 4125 2H/2R | VK 4125 3H/3R | VK 4125 4H/4R |
| Weight | 7 kg (15.4 lb) | 7.6 kg (16.75 lb) | 8.4 kg (18.5 lb) |
| Length | 380 mm (15") | 430 mm (17") | 455 mm (19") |
| Blows per minute | 2100 | 1650 | 1440 |
| Piston stroke | 50.8 mm (2") | 76.20 mm (3") | 101.6 mm (4") |
| Air consumption | 15.5 l/s (33 cfm) | 16 l/s (34 cfm) | 16.5 l/s (35 cfm) |
| Air pressure | 6.2 bar (90 psi) | 6.2 bar (90 psi) | 6.2 bar (90 psi) |
| Piston dia | 28.6 mm (1.13") | 28.6 mm (1.13") | 28.6 mm (1.13") |
| Air inlet (BSP thread) | 9.5 mm (3/8") | 9.5 mm (3/8") | 9.5 mm (3/8") |
| Retainer type | Spring | Spring | Spring |
| Shank | Hex 14.7 mm (0.580) | Round 17.3 mm (0.680) | Hex 14.7 mm (0.580) | Round 17.3 mm (0.680) | Hex 14.7 mm (0.580) | Round 17.3 mm (0.680) |
# Technically equivalent to CP 4125 Pneumatic Chippers
