VK 4130 Chipping Hammer

₹1.00

Pinch to
zoom

Quantity

DESCRIPTION

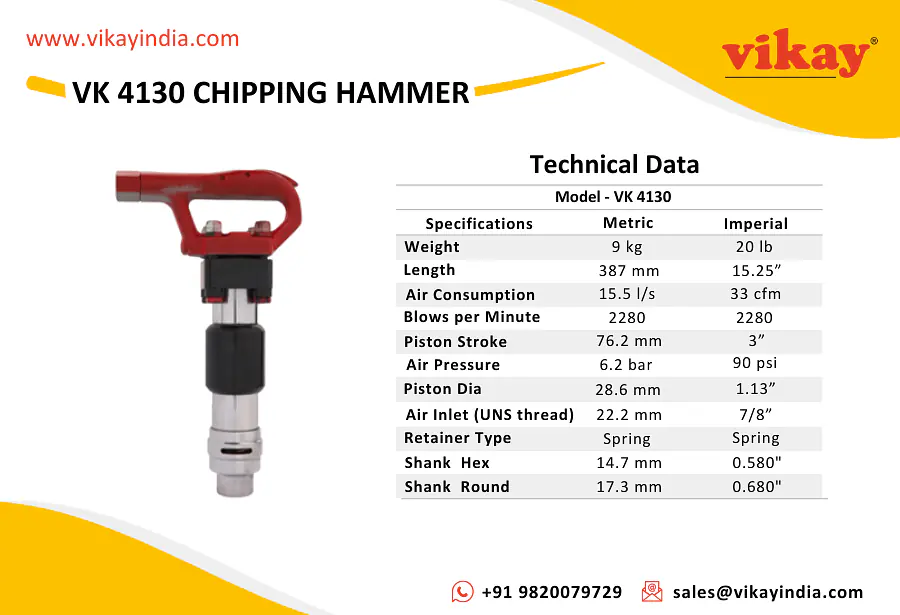

VK 4130 Chipping Hammer

Vikay is a worldwide distributor of VK 4130 Chipping Hammer - CP 4130 - technically equivalent to CP 4130 Pneumatic Chippers suitable for medium-duty to heavy-duty chipping, cutting and trimming operations from India.



Chipping Hammer – VK 4130 ( 20 lb )

VK 4130 Chipping Hammer comes with “D” Handle outside trigger Four Bolt locking system gives higher airflow and easy to handle. It is particularly suitable for working with relatively hard concrete in demolition, pile-capping or bridge deck applications, foundries, fabrication shops and construction applications .This chipping hammer comes with 2,3,4 cylinder option along with round & hex bush options.

Features

  • Four bolt, high strength back-head
  • ”D” handle with outside trigger and extra safety mechanism
  • Simplate valve for smooth operation
  • Strong and reliable
  • Available in 3” or 4” cylinder stroke versions (4130)
  • Choice of Bushing Round or Hex

Technical Data

SpecificationsMetricImperial
Weight9 kg20 lb
Length387 mm15.25"
Air consumption15.5 l/s33 cfm
Blows per minute22802280
Piston stroke76.2 mm3"
Air pressure6.2 bar90 psi
Piston dia28.6 mm1.13"
Air inlet (UNS thread)22.2 mm7/8"
Retainer typeSpringSpring
Shank Hex14.7 mm0.580"
Shank Round17.3 mm0.680"

# Technically equivalent to CP 4130 Pneumatic Chippers
