VK 46 WS-8 Stoper Drill
Regular price
₹1.00
VK 46 WS-8 Stoper Drill
Regular price
₹1.00
DESCRIPTION
VK 46 WS-8 Stoper Drill
Vikay is a worldwide distributor of VK 46 WS-8 Stoper Drill suitable for vertical or inclined environments and are specifically used in production drilling, raise driving, and roof bolting similar to Atlas Copco BBD 46 WS-8 Stoper Drill from India.
VK 46 WS-8 Stoppers are designed for vertical or inclined environments and are specifically used in production drilling, raise driving, and roof bolting operations. With a short piston stroke, these machines achieve high penetration rates in soft and medium-hard rock, making them highly effective for their intended purposes.
Applications
- Production Drilling
- Underground Mining
- Raise Driving
- Bolting in Soft to Hard rocks
Features
- Anti-Clockwise Rotation
- Short Piston Stroke
- Low Air Pressure
- Robust design

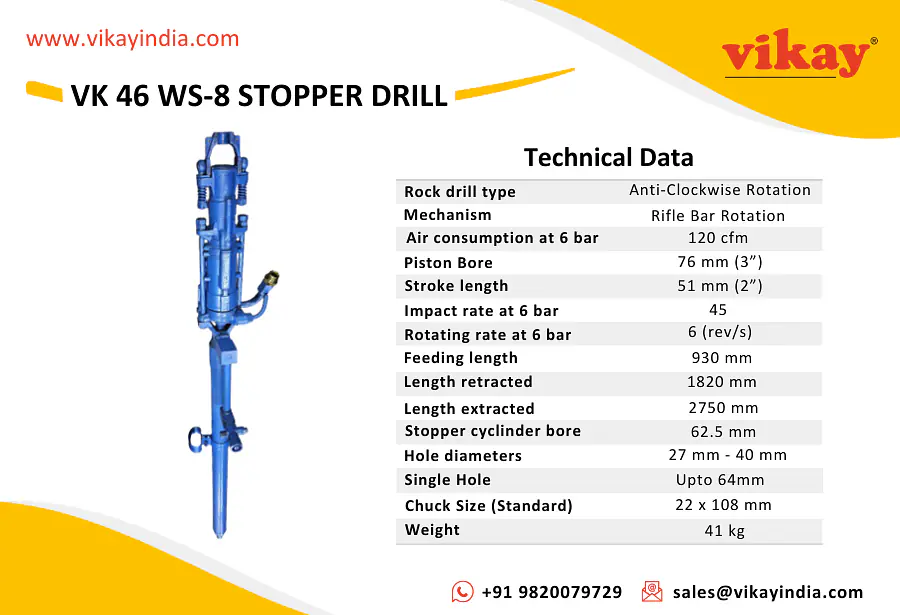

Technical Data
| Rock drill Type | Anti-Clockwise Rotation |
| Mechanism | Rifle Bar Rotation |
| Air Consumption at 6 bar | 120 cfm |
| Piston Bore | 76 mm (3”) |
| Stroke length | 51 mm (2”) |
| Impact rate at 6 bar | 45 |
| Rotating Rate at 6 bar | 6 (rev/s) |
| Feeding length | 930 mm |
| Length retracted | 1820 mm |
| Length extracted | 2750 mm |
| Stopper Cylinder Bore | 62.5 mm |
| Hole diameters | 27 mm - 40 mm |
| Single Hole | Upto 64mm |
| Chuck Size (Standard) | 22 x 108 mm |
| Weight | 41 kg |
