VK 4611D Rivet Buster
₹1.00
DESCRIPTION
VK 4611D Rivet Buster
Vikay is a worldwide distributor of VK 4611D Rivet Buster - CP 4611D - technically equivalent to CP 4611D Riveters suitable for removing rivets in metal and concrete applications, including demolition and bridge work from India.
Rivet Buster – VK 4611D ( 34 lb )
The VK 4611D Rivet Buster also known as the Hell Dog or Boyer Buster is a robust and potent hammer, delivering exceptional performance. It offers precise control over both blow frequency and energy output. It comes with an open swan neck handle for better performance in tight spaces. Ideal for medium to heavy concrete demolition, as well as cutting large rivets, bolts, and various ripping operations. Featuring a “D” handle-inside trigger, it is well-suited for horizontal tasks and some vertical applications.
Application
- Bridge deck work with weight restrictions
- Medium to heavy concrete demolition
- Cutting metal tanks or plates
- Industrial applications in foundries or the petrochemical industry
Features
- Teasing Throttle for smooth performance and operator control
- Operation under tough conditions
- Stepped cylinder design to prevent accidental piston ejection
- “D” handle with inside trigger
- Robust components for enduring tough work environments
- New Design VK 4611D replaces the old VK 4181 (11” long cylinder stroke)

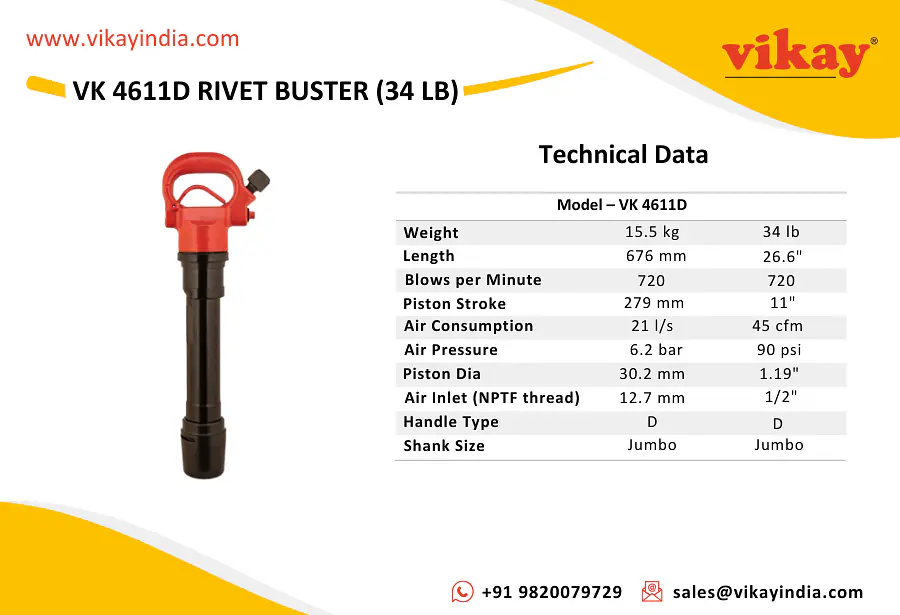

Technical Data
Weight | 15.5 kg | 34 lb |
Length | 676 mm | 26.6" |
Blows per minute | 720 | 720 |
Piston stroke | 279 mm | 11" |
Air consumption | 21 I/s | 45 cfm |
Air pressure | 6.2 Bar | 90 psi |
Piston dia | 30.2 mm | 1.19" |
Air inlet (NPTF thread) | 12.7 mm | 1/2" |
Handle Type | D | D |
Shank size | Jumbo | Jumbo |
# Technically equivalent to CP 4611D Riveters
