DESCRIPTION

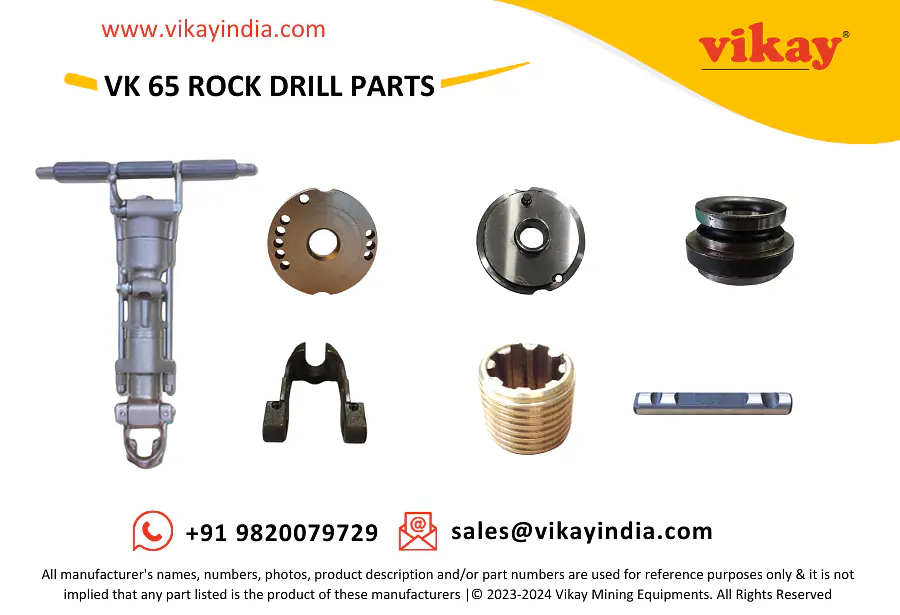

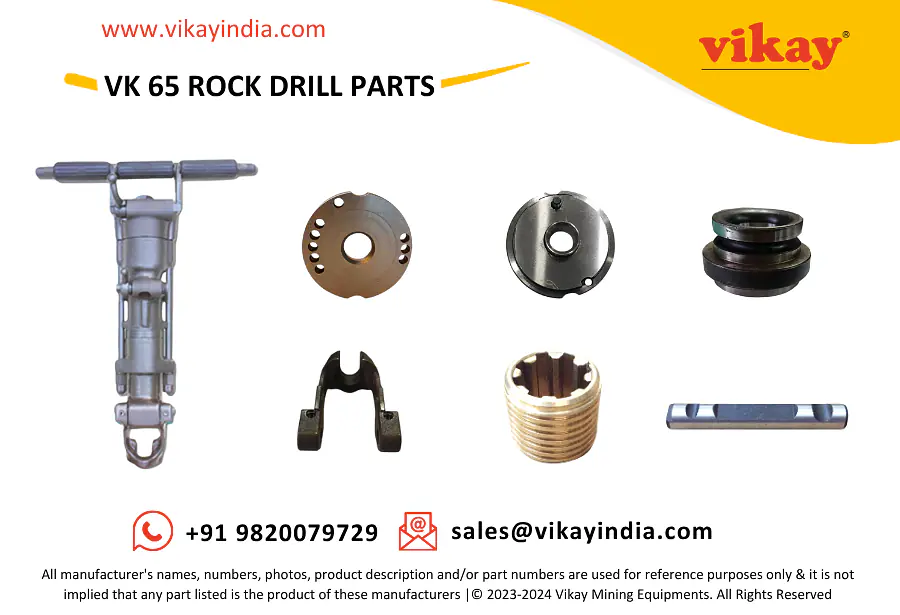

Rock Drill VK-65 Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement Parts for Vikay Rock Drill Model VK-65 from India
Product
1. Hand Held Rock Drill (Jack Hammer) Model VK-65
| No. | Description | Ref. Part No. |
| - | Back Head Compl. | 3115056981 |
| 1 | -- Back Head | 3115056900 |
| 2 | -- Throttle Valve | 3121034900 |
| 3 | -- Inlet Nipple | 3101137100 |
| 4 | -- Adapter | 3101137000 |
| 5 | -- T.Pin | 3121032900 |
| 6 | -- Spring for Th.Valve | 3111013600 |
| 7 | -- Lock Washer | 3121033200 |
| 8 | -- O-Ring | 0663212800 |
| 9 | -- Lever Handle Top | 3115057300 |
| 10 | -- Conical Nut | 3006873400 |
| 11 | Cylinder | 3121033700 |
| 12 | Spring for Outlet Valve | 3121033800 |
| 13 | Outlet Valve | 3106994900 |
| 14 | Lever Handle Bottom | 3106995000 |
| 15 | Elastic Pin | 0108333000 |
| 16 | Conical Nut | 3006873400 |
| 17 | Front Head | 3121034200 |
| 18 | Retainer | 3121085100 |
| 19 | Retainer Pin | 3121085200 |
| 20 | Buffer Plate | 3121002900 |
| 21 | Rubber Buffer | 3121003000 |
| 22 | Tension Pin | 0108339200 |
| 23 | Rotation Chuck Compl. | 3121076980 |
| 24 | -- Rotation Chuck | 3121076900 |
| 25 | -- Chuck Bushing | 3121002300 |
| 26 | -- Chuck Nut | 3115122100 |
| 27 | Intermediate Part | 3121033900 |
| 28 | Piston Compl. | 3100847880 |
| 29 | -- Piston | 3100847800 |
| 30 | -- Rifle Nut | 3110929905 |
| 31 | Guide Disc | 3106868300 |
| 32 | Ratchet Ring | 3106868200 |
| 33 | Pin for Ratchet Ring | 0108133600 |
| 34 | Rifle Bar | 3101315400 |
| -- | Pawl Set | 3115920090 |
| 35 | -- Pressure Spring | 3100914002 |
| 36 | -- Plunger | 3100964101 |
| 37 | -- Pawl | 3100315900 |
| 38 | Cover Compl. | 3106868080 |
| 39 | -- Cover | 3106868000 |
| 40 | -- Bushing | 3110989401 |
| 41 | -- Guide Pin | 3100966500 |
| 42 | Main Valve | 3106868100 |
| -- | Bracket Set | 3121034445 |
| 43 | -- Bracket (Right) | 3121034500 |
| 44 | -- Bracket (Left) | 3121034400 |
| 45 | Rubber Grip | 3101137200 |
| 46 | Handle Bolt | 3121036000 |
| 47 | Washer | 3000011901 |
| 48 | Dome Nut | 3121029200 |
| 49 | Air Flushing Tube | 3121035200 |
| 50 | Rubber Packing | 3121033600 |
| 51 | Seal Washer (Small) | 3000934102 |
| 52 | Adopter | 3100962301 |
| 53 | Seal Washer (Large) | 3101414600 |
| 54 | Protective Nut | 3100964301 |
| 55 | Side Bolt | 3121034300 |
| 56 | Dome Nut | 3121029200 |
| 57 | Adopter | 9000035000 |
| 58 | Hose Nipple | 9000032500 |
| 59 | Wing Nut | 9000033800 |
2. Optional
| No. | Description | Ref. Part No. |
| For Short Type Handle | ||
| 44a | Washer for Bracket | 3115057400 |
| For Bend New Type | ||
| a | Washer | 3115104500 |
| b | Adapter | 9000034500 |
| c | Hose Nipple | 3115117000 |
| d | Coupling Nut | 9000033300 |

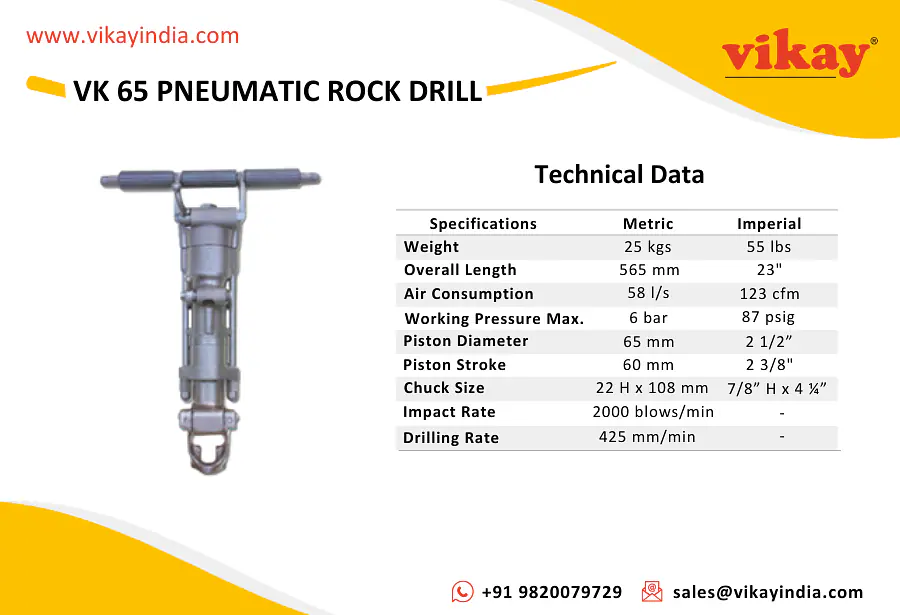

SPECIFICATIONS
