VK S250 Jackleg Drill

₹1.00

Pinch to
zoom

Quantity

DESCRIPTION

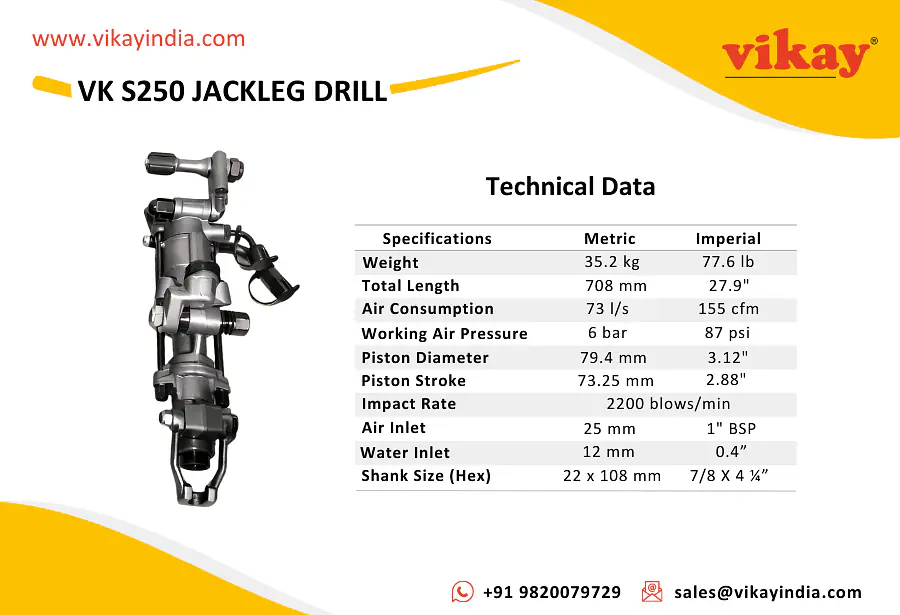

VK S250 Jackleg Drill | Boart Longyear S250 Jackleg Drill

The VK S250 Jackleg Drill technically equivalent to Boart Longyear S250 Jackleg Drill, Secan S250 jackleg Drill has always been the top choice for miners demanding high performance, exceptional control, and long-lasting reliability. The VK S250 jackleg Drill allows operators to drill in confined spaces at challenging orientations while delivering high penetration rate and strong torque even at low air pressure.

Applications

  • Rock drilling work
  • Wet drilling on hard medium hard rock
  • Drilling horizontal or inclined blast holes.



Features

  • Top choice for miners demanding high performance.
  • Delivers high penetration rate and strong torque, even at low air pressure.
  • Minimal downtime and reduced maintenance costs.

Technical Data

SpecificationsMetricImperial
Weight35.2 kg77.6 lb
Total Length708 mm27.9"
Air Consumption73 l/s155 cfm
Working Air Pressure6 bar87 psi
Piston Diameter79.4 mm3.12"
Piston Stroke73.25 mm2.88"
Impact Rate2200 blows/min2200 blows/min
Air Inlet25 mm1" BSP
Water Inlet12 mm0.4"
Shank Size (Hex)22 x 108 mm7/8 X 4 ¼”
