VK TPB 90 Paving Breaker-93lb
Regular price
₹1.00
VK TPB 90 Paving Breaker-93lb
Regular price
₹1.00
DESCRIPTION

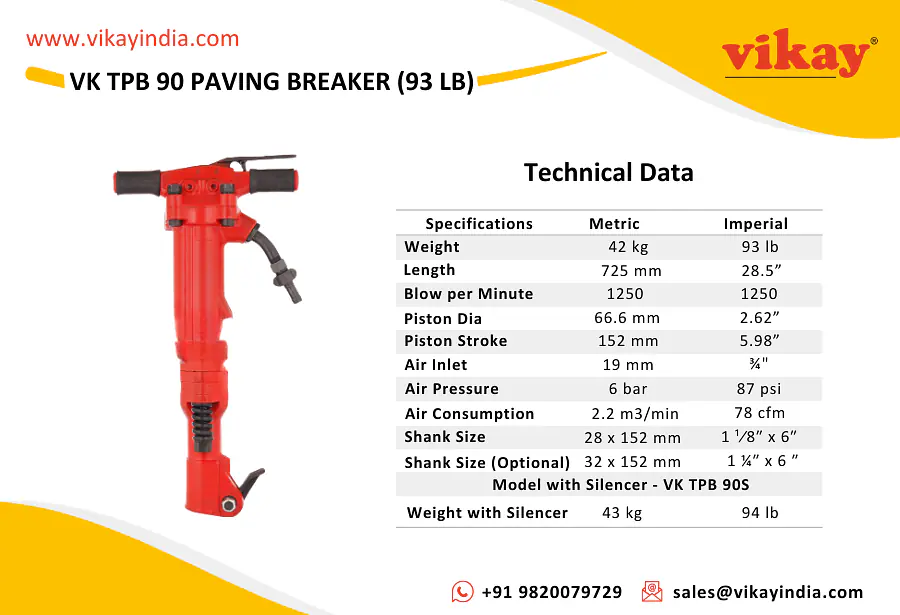

VK TPB 90 Paving Breaker-93lb
Vikay is a worldwide distributor of VK TPB 90 Paving Breaker-93lb - Toku 90 - technically equivalent to Toku 90 Paving Breaker suitable for larger demolition jobs like breaking rock, reinforced concrete, or pavement from India.
Applications
- Road construction and building foundation jobs
- Non-consolidated Rock and general demolition
- Tough construction and plant maintenance
Features
- Maximum Durability due to Alloy Steel Forged Parts
- Forged latch retainers
- A rugged four bolt back head
Technical Data
| Specifications | Metric | Imperial |
| Weight | 42 Kg | 93 lb |
| Weight with Silencer | 43 Kg | 94 lb |
| Length | 725 mm | 28.5” |
| Blow per Minute | 1250 | 1250 |
| Piston Dia | 66.6 mm | 2.62” |
| Piston Stroke | 152 mm | 5.98” |
| Air Inlet | 19 mm | ¾” |
| Air Pressure | 6 bar | 87 psi |
| Air Consumption | 2.2 m3/min | 78 cfm |
| Shank Size | 28 x 152 mm | 1 ¹⁄8″ x 6″ |
| Shank Size (optional) | 32 x 152 mm | 1 ¼″ x 6 ″ |
