DESCRIPTION
Air Motor Replacement
Vikay is a global supplier of new aftermarket replacement parts - Air Motor for Atlas Copco Wagon Drill Bvb-25 from India.

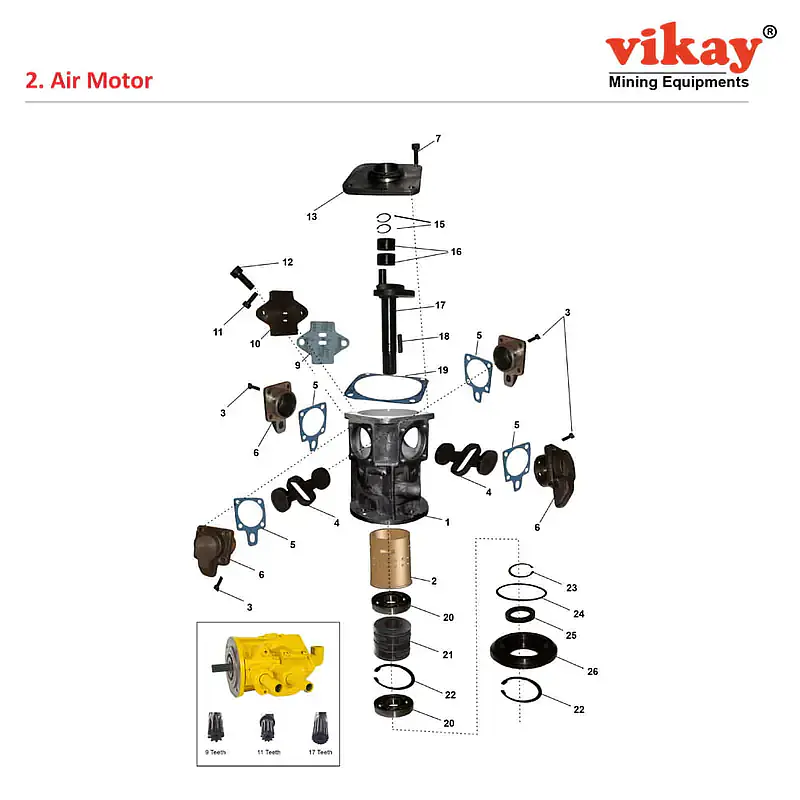

Air Motor
| No. | Description | Modified | Ref. Part No. | |
| – | Piston Motor Complete - 11 Teeth (4450077684) | 8973161014 | ||
| – | Piston Motor Complete - 17 Teeth (4450054188) | 8973161006 | ||
| – | Piston Motor Complete - 9 Teeth | 4450077680 | ||
| 1 | – Crankcase Feed Rotation & Traction | * | ||
| 2 | – Main Valve Liner | 4450071200 | ||
| 3 | – Screw (Modified) | 0211132400 | * | M100003 |
| 4 | – Double Piston | 4350222200 | ||
| 5 | – Gasket | 4450054400 | ||
| 6 | – Cylinder | 4450054300 | ||
| 7 | – Screw (Modified) | 0211132400 | * | M100003 |
| 9 | – Gasket | 4450054600 | ||
| 10 | – Distributor Plate | 4450075200 | ||
| 11 | – Spring Washer | 333213000 | ||
| 12 | – Screw (Modified) | 0211136100 | * | M100012 |
| 13 | – Cover | 4350222300 | ||
| 15 | – Circlip 16 mm | M100015 | ||
| 16 | – Needle Bearing (Modified) | 5053010800 | * | M100016 |
| 17 | – Crankshaft Rotation - 11 Teeth (Modified) | 9718502700 | * | M100017 |
| 17A | – Crankshaft Feed Motor - 17 Teeth (Modified) | 9718502600 | * | M100017A |
| 17B | – Crankshaft For Motor BBE 57 - 9 Teeth (Modified) | 4350200900 | * | M100017B |
| 18 | – Key | 337259200 | ||
| 19 | – Gasket | 4450055000 | ||
| 20 | – Ball Bearing | 502321800 | ||
| 21 | – Main Valve | 4450054700 | ||
| 22 | – Circlip (Int.) | 333215700 | ||
| 23 | – Circlip (Ext.) | 335113200 | ||
| 24 | – O-Ring | 663613700 | ||
| 25 | – Seal Ring | 666226100 | ||
| 26 | – Seal Ring Retainer | 4450055100 |
