DESCRIPTION
Bare Compressor For Ingersoll Rand Type 30 - Model 10T3NLM
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - Bare Compressor For Ingersoll Rand Type 30 - Model 10T3NLM from India.

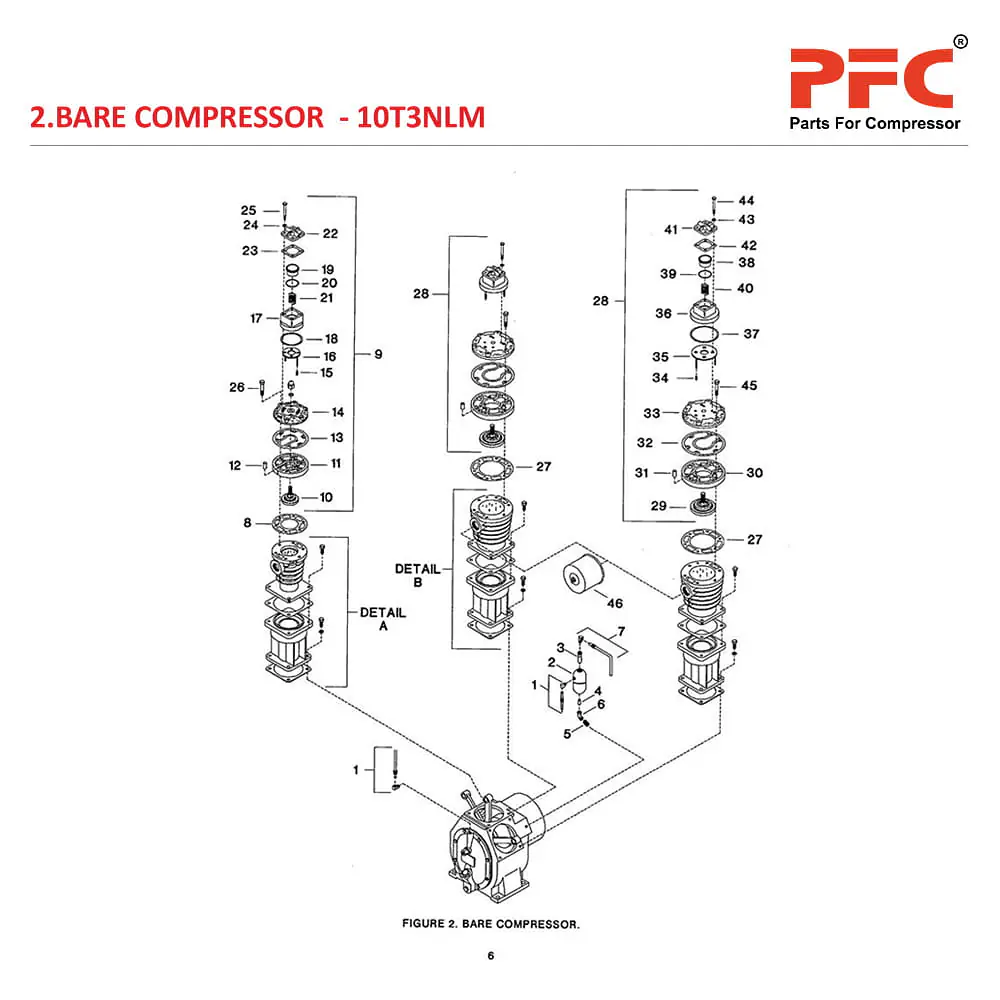

Bare Compressor
| REF. NBR. | PART NO. | DESCRIPTION | UNITS PER ASSY. |
| 2-1 | 32241523 | Assembly, Tube - Pilot Valve/Breather - Complete | 1 |
| 2-2 | 32225534 | Bottle, Breather Trap | 1 |
| 2-3 | 32225526 | Plug, Breather Element | 1 |
| 2-4 | 32230864 | Nipple, Hex - 3/8" | 1 |
| 2-5 | 95691077 | Nipple, Close - 3/8 X 1" | 1 |
| 2-6 | 95030672 | Elbow, Pipe - 3/8' - 45° | 1 |
| 2-7 | 32241549 | Assembly, Tube - Breather Trap - Complete | 1 |
| 2-8 | 30294300 | Gasket, Airhead - High Pressure | 1 |
| 2-9 | 32226292 | Assembly, Airhead/Valve - High Pressure | 1 |
| 2-10 | 37004835 | – Valve, 40 - Completet(See Figure 3, Page 8) | 1 |
| 2-11 | 32222721 | – Airhead, Bottom | 1 |
| 2-12 | 37114030 | – Dowel | 1 |
| 2-13 | 37130432 | – Gasket, Airhead - Top/Bottom | 1 |
| 2-14 | 32222713 | – Airhead, Top | 1 |
| 2-15 | 32012395 | – Spring, Unloader Pin | 2 |
| 2-16 | 32016552 | – Plate, Unloader - Complete | 1 |
| 2-17 | 37129889 | – Body, Unloader | 1 |
| 2-18 | 30294631 | – Gasket, Unloader Body | 1 |
| 2-19 | 32222507 | – Piston, Unloader | 1 |
| 2-20 | 32225468 | – O-Ring, Unloader Piston | 1 |
| 2-21 | 30416853 | – Spring, Unloader Piston | 1 |
| 2-22 | 37129905 | – Cover, Unloader | 1 |
| 2-23 | 30294656 | – Gasket, Unloader Cover | 1 |
| 2-24 | 32225286 | – Washer - M10 | 4 |
| 2-25 | 32225138 | – Capscrew - M10 X 90 | 4 |
| 2-26 | 32225146 | Capscrew - M12 X 75 | 6 |
| 2-27 | 30294193 | Gasket, Airhead - Low Pressure | 2 |
| 2-28 | 32226300 | Assembly, Airhead/Valve - Low Pressure | 2 |
| 2-29 | 37004843 | – Valve, 50 - Complete (See Figure 4, Page 9) | 1 |
| 2-30 | 32222739 | – Airhead, Bottom | 1 |
| 2-31 | 37114030 | – Dowel | 1 |
| 2-32 | 37007747 | – Gasket, Airhead - Top/Bottom | 1 |
| 2-33 | 32226185 | – Airhead, Top | 1 |
| 2-34 | 32012395 | – Spring, Unloader Pin | 3 |
| 2-35 | 32222788 | – Plate, Unloader | 1 |
| 2-36 | 37129947 | – Body, Unloader | 1 |
| 2-37 | 30294698 | – Gasket, Unloader Body | 1 |
| 2-38 | 32222507 | – Piston, Unloader | 1 |
| 2-39 | 32225468 | – O-Ring, Unloader Piston | 1 |
| 2-40 | 30416853 | – Spring, Unloader Piston | 1 |
| 2-41 | 37129905 | – Cover, Unloader | 1 |
| 2-42 | 30294656 | – Gasket, Unloader Cover | 1 |
| 2-43 | 32225286 | – Washer - M10 | 4 |
| 2-44 | 32225138 | – Capscrew - M10 X 90 | 4 |
| 2-45 | 32225146 | Capscrew - M12 X 75 | 12 |
| 2-46 | 32109779 | Filter, Inlet - Complete (See Figure 9, Page 15) | 2 |
