DESCRIPTION
Bare Compressor For Ingersoll Rand Type 30 - Model 2475
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Bare Compressor For Ingersoll Rand Type 30 - Model 2475 from India.

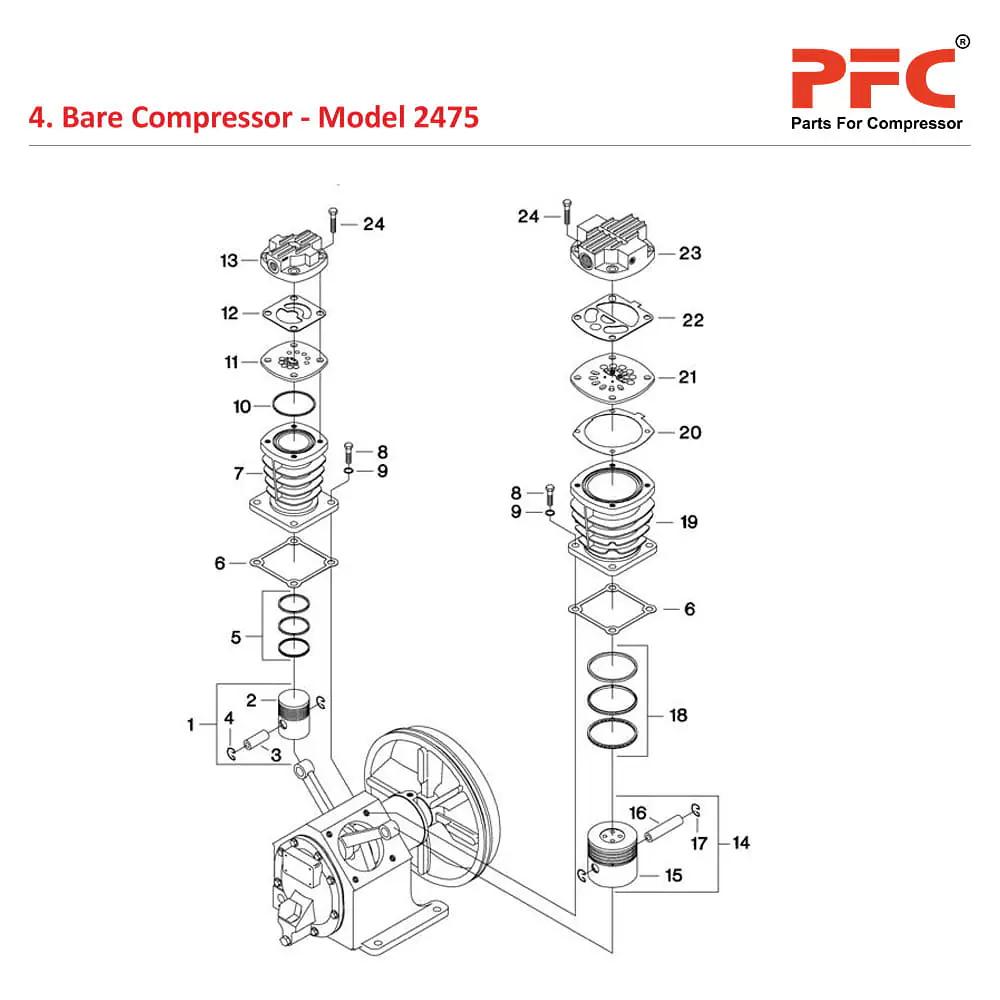

Bare Compressor
| Sr.No | Ref. Part Number | Description | Qty |
| 4-1 | 32496598 | Piston, Air - Complete - 2.5" High Pressure | 1 |
| 4-2 | NSS | – Piston - Air -2.5" | 1 |
| 4-3 | 30287783 | – Pin, Piston | 1 |
| 4-4 | 30298020 | – Ring, Lock | 2 |
| 4-5 | 32307910 | Set, Piston Ring - 2.5" | 1 |
| 4-6 | 32247868 | Gasket, Cylinder/Flange | 2 |
| 4-7 | 32247652 | Cylinder - 2.5" - High Pressure | 1 |
| 4-8 | 95053567 | Capscrew, Hex - 1/2-13 X 1-1/4" | 8 |
| 4-9 | 95674701 | Gasket, Copper - 1/2" | 8 |
| 4-10 | 32246878 | O-Ring, Valve Plate - High Pressure | 1 |
| 4-11 | 32310799 | Assembly, Valve Plate - High Pressure(Fig.2) | 1 |
| 4-12 | 32247926 | Gasket, Airhead - High Pressure | 1 |
| 4-13 | 32247827 | Airhead - High Pressure | 1 |
| 4-14 | 32496564 | Piston, Air-Complete- 4" Low Pressure | 1 |
| 4-15 | NSS | – Piston - Air -4" | 1 |
| 4-16 | 30288393 | – Pin, Piston | 1 |
| 4-17 | 30298020 | – Ring, Lock | 2 |
| 4-18 | 32307928 | Set, Piston Ring - 4" | 1 |
| 4-19 | 32293540 | Cylinder - 4" - Low Pressure | 1 |
| 4-20 | 32248197 | Gasket, Valve Plate - Low Pressure | 1 |
| 4-21 | 32248205 | Assembly, Valve Plate - Low Pressure(Fig.3) | 1 |
| 4-22 | 32248189 | Gasket, Airhead - Low Pressure | 1 |
| 4-23 | 32293557 | Airhead - Low Pressure | 1 |
| 4-24 | 95104188 | Capscrew, Hex - 1/2-13 X 1-3/4" | 8 |
