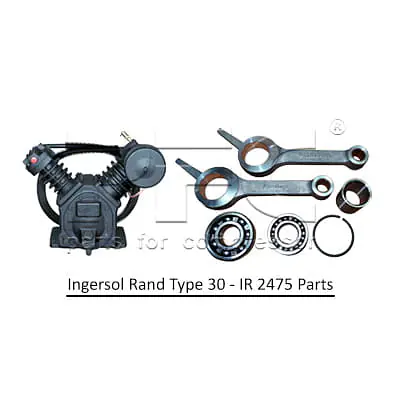

IR 2475 parts are the replacement components for the Ingersoll Rand Type 30 model 2475 two stage reciprocating compressor. Vikay supplies new aftermarket parts from India, including overhaul kit 32319469, separate HP and LP valve plates, the bare compressor, frame and intercooler.
The 2475 is among the most widely installed Type 30 machines still in service, which is why the aftermarket for it is worth having.

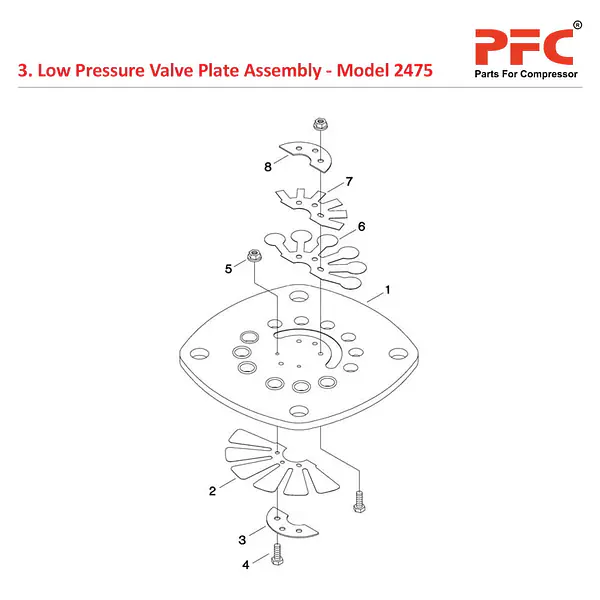

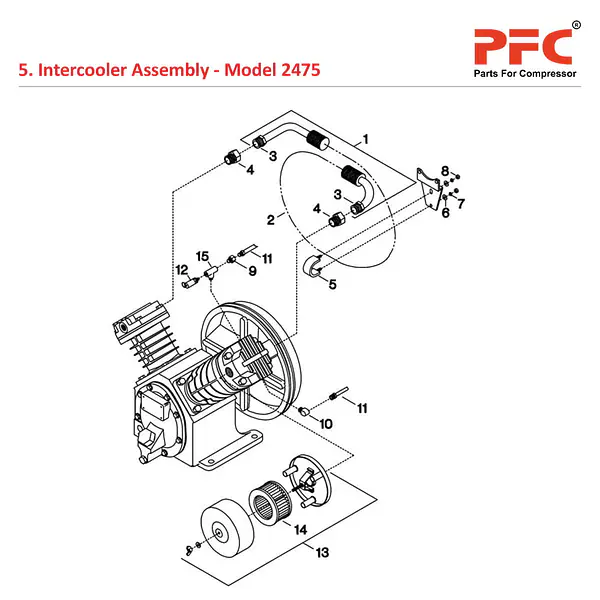

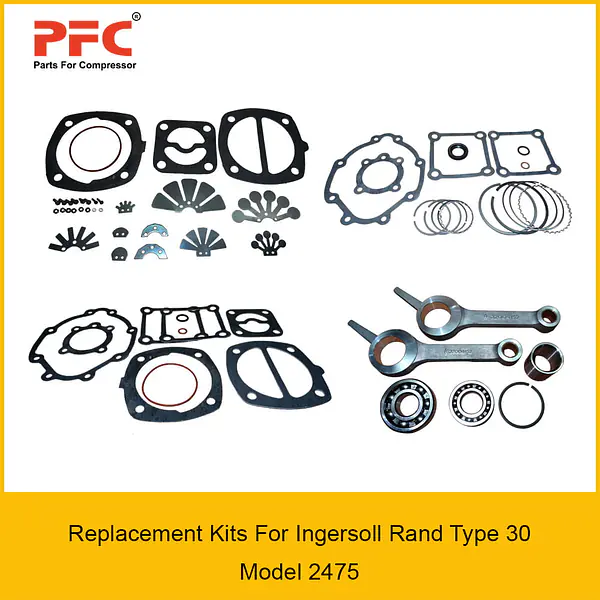

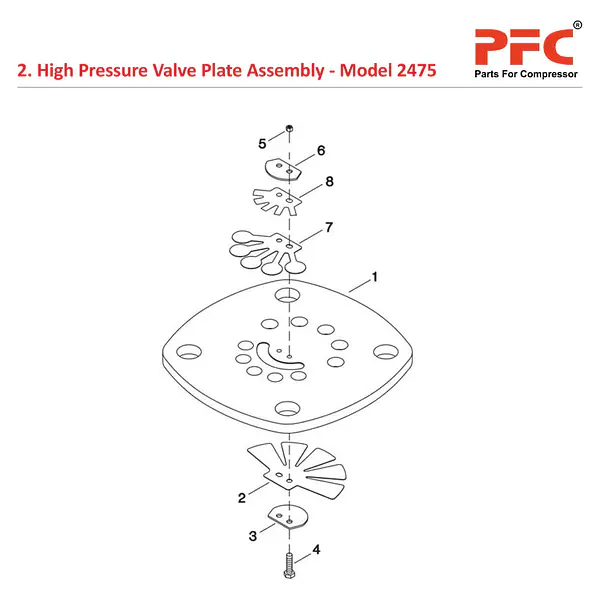

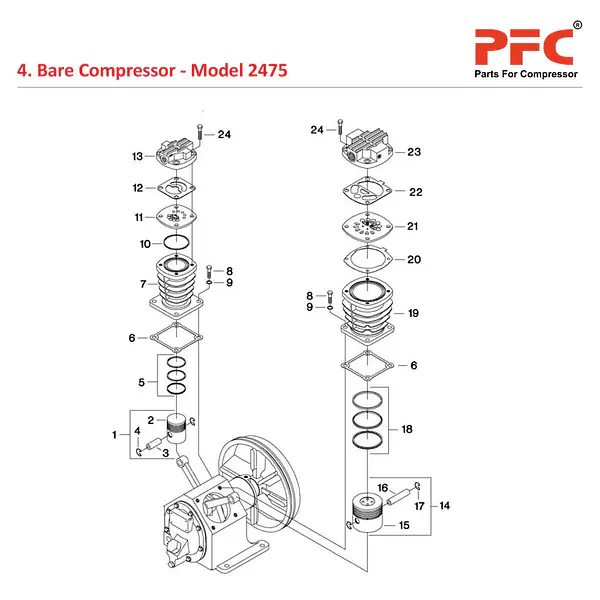

It is a two stage compressor, so high-pressure and low-pressure valve plates are separate items and are not interchangeable. The holding covers overhaul kit 32319469, both valve plates, the compressor frame, the bare compressor and the intercooler.
When delivered air falls off and discharge temperature climbs at the same time, suspect the discharge valves first: a leaking discharge valve recirculates air within its stage, which produces both symptoms together. Rings and gaskets follow at overhaul.
These are new aftermarket parts; the Ingersoll Rand name and part numbers identify fitment only.
Delivery has dropped and the machine runs hot — what should I check?
- The discharge valves. A leaking discharge valve recirculates air within its stage, which reduces delivered air and raises discharge temperature at the same time.
Are the HP and LP valve plates interchangeable?
- No. They serve different stages and must be ordered against the stage named in your parts manual, even though they look similar.
Are these original Ingersoll Rand parts?
- No. They are new aftermarket replacement parts made to fit the Type 30 model 2475, with the brand and numbers quoted for identification only.
