DESCRIPTION
Low Pressure Valve Plate Assembly For Ingersoll Rand Type 30 - Model 2475
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Low Pressure Valve Plate Assembly For Ingersoll Rand Type 30 - Model 2475 from India.

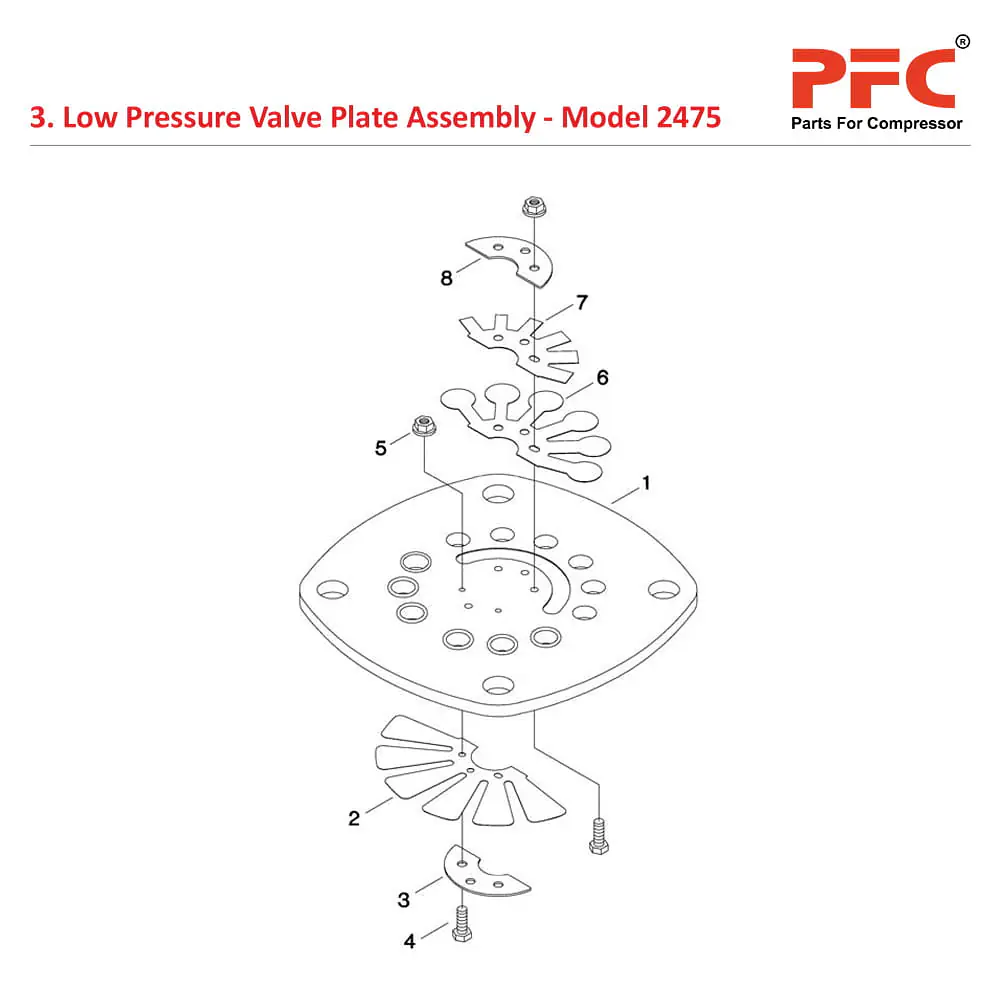

Low Pressure Valve Plate Assembly
| Sr.No | Ref. Part Number | Description | Qty |
| REF | 32248205 | Assembly, Valve Plate | 1 |
| 3-1 | NSS | – Plate, Valve - Low Pressure | 1 |
| 3-2 | 32248130 | – Valve, Finger - Inlet | 1 |
| 3-3 | 32248148 | – Retainer, Finger Valve - Inlet | 1 |
| 3-4 | 32247512 | – Screw, Hex Head - M4 X 12 | 6 |
| 3-5 | 32248171 | – Nut, Hex - M3 With Lockwasher | 6 |
| 3-6 | 32248155 | – Retainer, Finger Valve - Discharge | 1 |
| 3-7 | 32294464 | – Valve, Finger - Discharge | 1 |
| 3-8 | 32248163 | – Valve, Damper - Discharge | 1 |
