DESCRIPTION

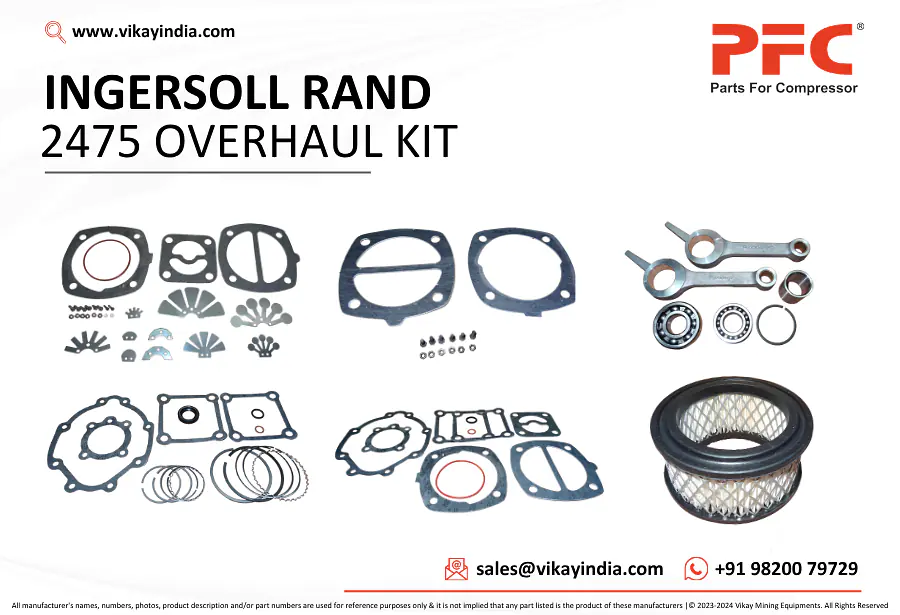

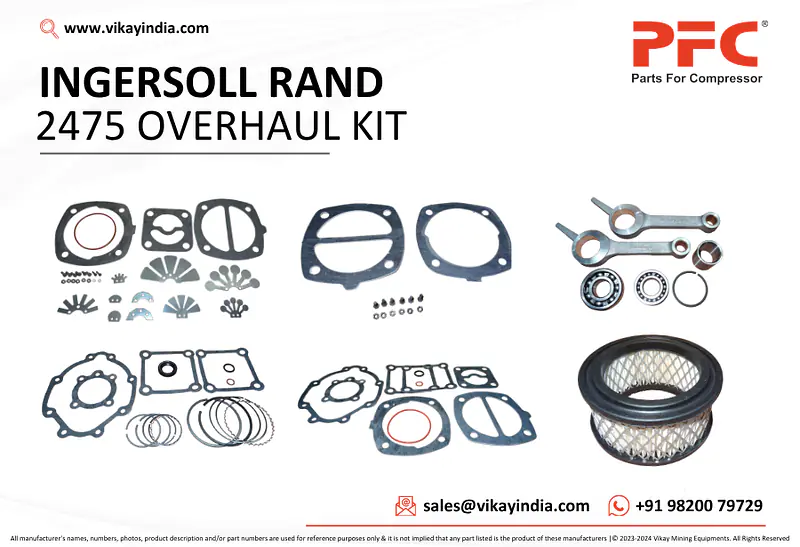

Overhaul Kit 32319469 IR 2475 Replacement

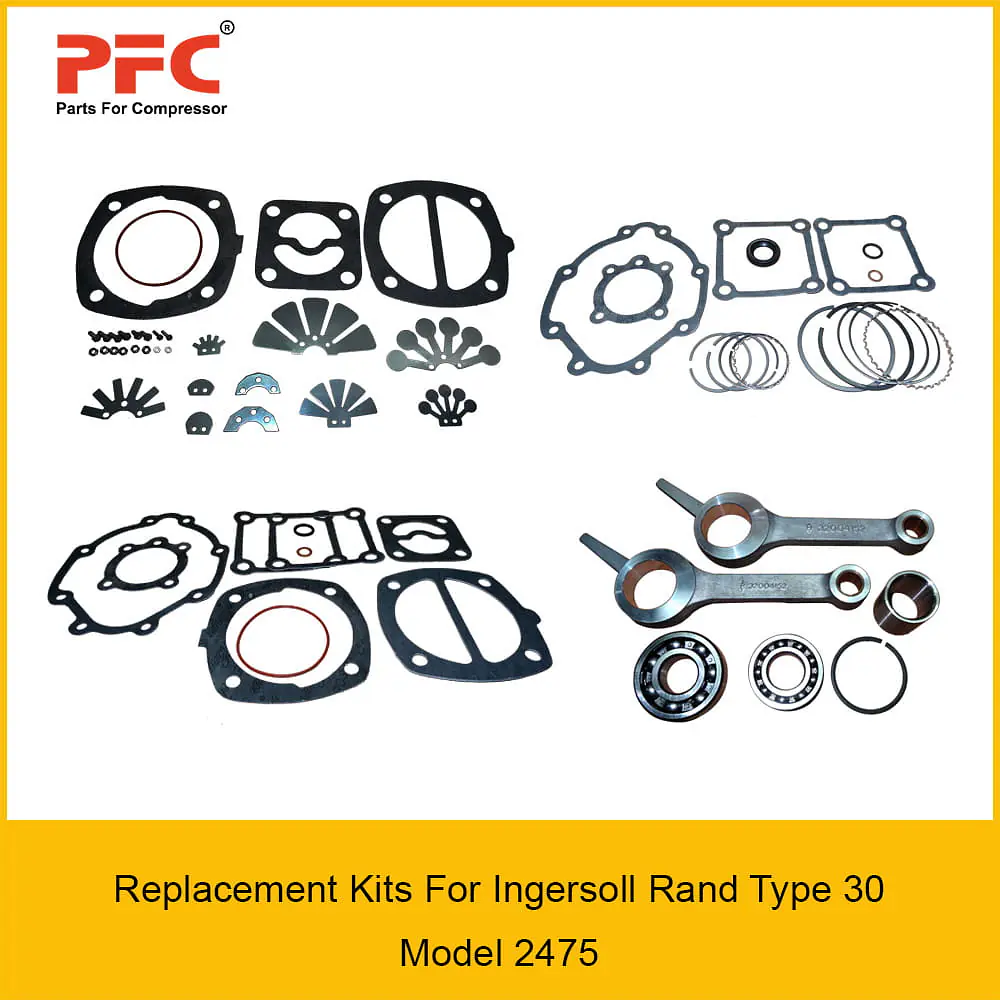

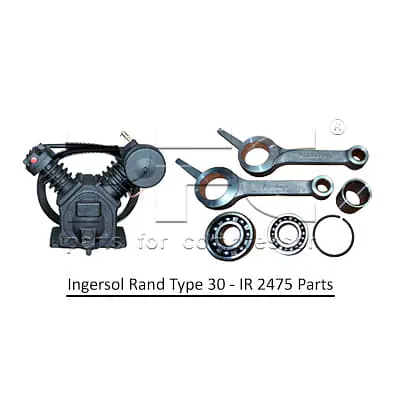

Overhaul Kit for Ingersoll Rand Type 30 Air Compressor Model 2475 replacement from India.
Overhaul Kit 32319469 IR 2475 Replacement
Contain of Kit
| No. | Description | Part No. | QTY |
| A | Gasket Set | 32301434 | -- |
| – Frame End Cover Gasket | 32247884 | 1 | |
| – Oil Fill Plug O-Ring | 32247850 | 1 | |
| – Shaft End Cover Gasket | 32247876 | 1 | |
| – Copper Washer Gasket 1/2’’ | 95674701 | 1 | |
| – Cyl/Frame Gasket | 32247868 | 2 | |
| – VP/HP Cyl. O-Ring | 32246878 | 1 | |
| – HP Airhead Gasket | 32247926 | 1 | |
| – VP/HP Cylinder Gasket | 32248197 | 1 | |
| – LP Airhead Gasket | 32248189 | 1 | |
| B | Ring/Gasket Kit | 32301517 | -- |
| – Frame End Cover Gasket | 32247884 | 1 | |
| – Oil Fill Plug O-Ring | 32247850 | 1 | |
| – Viton 1.12 Oil Seal (32204539) | 32499923 | 1 | |
| – Shaft End Cover Gasket | 32247876 | 1 | |
| – Copper Washer 1/2’’ | 95674701 | 1 | |
| – Ring Set - HP 2 1/2’’ | 32307910 | 1 | |
| – Ring Set - LP 4’’ | 32307928 | 1 | |
| – Cyl/Frame Gasket | 32247868 | 2 | |
| C | Valve/Gasket Kit | 32301426 | -- |
| – Airhead Gasket HP | 32247926 | 1 | |
| – Airhead Gasket LP | 32248189 | 1 | |
| – VP-HP Cyl. O-Ring | 32246878 | 1 | |
| – VP-LP Cyl. Gasket | 32248197 | 1 | |
| – HP Inlet Valve Finger | 32236671 | 1 | |
| – HP Inlet Valve Retainer | 32297343 | 1 | |
| – Hex Head Cap Screw M3-12 | 32297327 | 2 | |
| – Hex Locknut W/Washer M3 | 97511059 | 2 | |
| – HP Disch. Valve Retainer | 32295461 | 1 | |
| – HP Discharge Finger Valve | 32241010 | 1 | |
| – HP Discharge Damper Valve | 32295479 | 1 | |
| – LP Inlet Finger Valve | 32248130 | 1 | |
| – LP Inlet Valve Retainer | 32248148 | 1 | |
| – Hex Head Cap Screw M4-12 | 32247512 | 6 | |
| – Hex Nut M4 | 32248171 | 6 | |
| – LP Discharge Finger Valve | 32248155 | 1 | |
| – LP Discharge Damper Valve | 32294464 | 1 | |
| – LP Discharge Valve Retainer | 32248163 | 1 | |
| D | Bearing/Conn Rod Kit (32127391) | 32301509 | -- |
| – Ball Bearing (95213914) | 32248122 | 1 | |
| – Bearing W/Snap Ring | 95134185 | 1 | |
| – Crankpin Bushing | 30210199 | 1 | |
| – Connecting Rod | 32004152 | 2 | |
| E | LP Valve Kit | 32316283 | -- |
| – Screw | 32247512 | 6 | |
| – Nut | 32248171 | 6 | |
| – LP Airhead Gasket | 32248189 | 1 | |
| – VP/LP Cyl. Gasket | 32248197 | 1 | |
| F | Air Filter Element | 32170979 | 1 |
| Total | 69 |
