DESCRIPTION
Compressor Frame Assembly For Ingersoll Rand Type 30 - Model 2475
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Compressor Frame Assembly For Ingersoll Rand Type 30 - Model 2475 from India.
Product
- Page 1

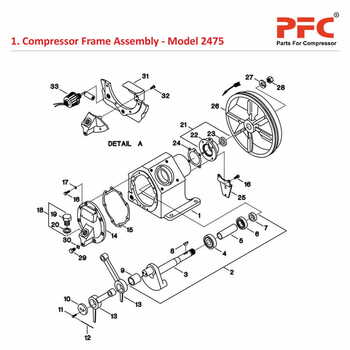

1. Compressor Frame Assembly
| Sr.No | Ref. Part Number | Description |
| 1-1 | 32247728 | Frame, Compressor |
| 1-2 | 32293565 | Assembly, Crankshaft Complete |
| 1-3 | NSS | * Assembly, Disk & Shaft |
| 1-4 | 32248122 | * Bearing, Ball |
| 1-5 | 32006496 | *Spacer, Crankshaft Bearing |
| 1-6 | 95213666 | * Bearing, Ball with Snap Ring |
| 1-7 | 37127669 | * Ring, Bearing Retainer |
| 1-8 | 95433173 | * Key, Woodruff |
| 1-9 | 30210199 | * Bushing, Crankpin |
| 1-10 | 30210298 | Cap, Crankpin |
| 1-11 | 30278667 | Capscrew -3/8-16X7/8" |
| 1-12 | 90799289 | Lockwire - 12GA X 5" |
| 1-13 | 32004152 | Rod, Connecting |
| 1-14 | 32496663 | Cover, Frame End |
| 1-15 | 32247884 | Gasket, Frame End Cover |
| 1-16 | 95105250 | Capscrew -Hex - 5/16-18 X 1" |
| 1-17 | 95674651 | Gasket, Copper Washer - 5/16" |
| 1-18 | 32279549 | Plug, Oil Filter - Complete |
| 1-19 | NSS | * Plug, Oil Filler |
| 1-20 | 32247850 | * O-Ring, Oil Filler Plug |
| 1-21 | 97331060 | Assembly, Shaft End Cover |
| 1-22 | NSS | * Cover, Shaft End |
| 1-23 | 32499923 | * Seal |
| 1-24 | 32247876 | Gasket, Shaft End Cover |
| 1-25 | 32157349 | Bracket, Intercooler Clamp |
| 1-26 | 32496432 | Beltwheel - Electric Drive |
| 1-26 | 32247975 | Beltwheel - Gasoline Drive |
| 1-27 | 95081808 | * Lockwasher, Spring - 3/4" |
| 1-28 | 95076816 | Nut, Hex |
| 1-29 | 95053526 | Capscrew, Hex - 1/2-13 X 3/4" |
| 1-30 | 95674701 | Gasket, Copper |
| 1-31 | 32295222 | Baffle, Oil Level Switch |
| 1-32 | 95053070 | Capscrew |
| 1-33 | 32276313 | Switch, Low Oil Level |
