DESCRIPTION
High Pressure Valve Plate Assembly For Ingersoll Rand Type 30 - Model 2475
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - High Pressure Valve Plate Assembly For Ingersoll Rand Type 30 - Model 2475 from India.
Product
- Page 1

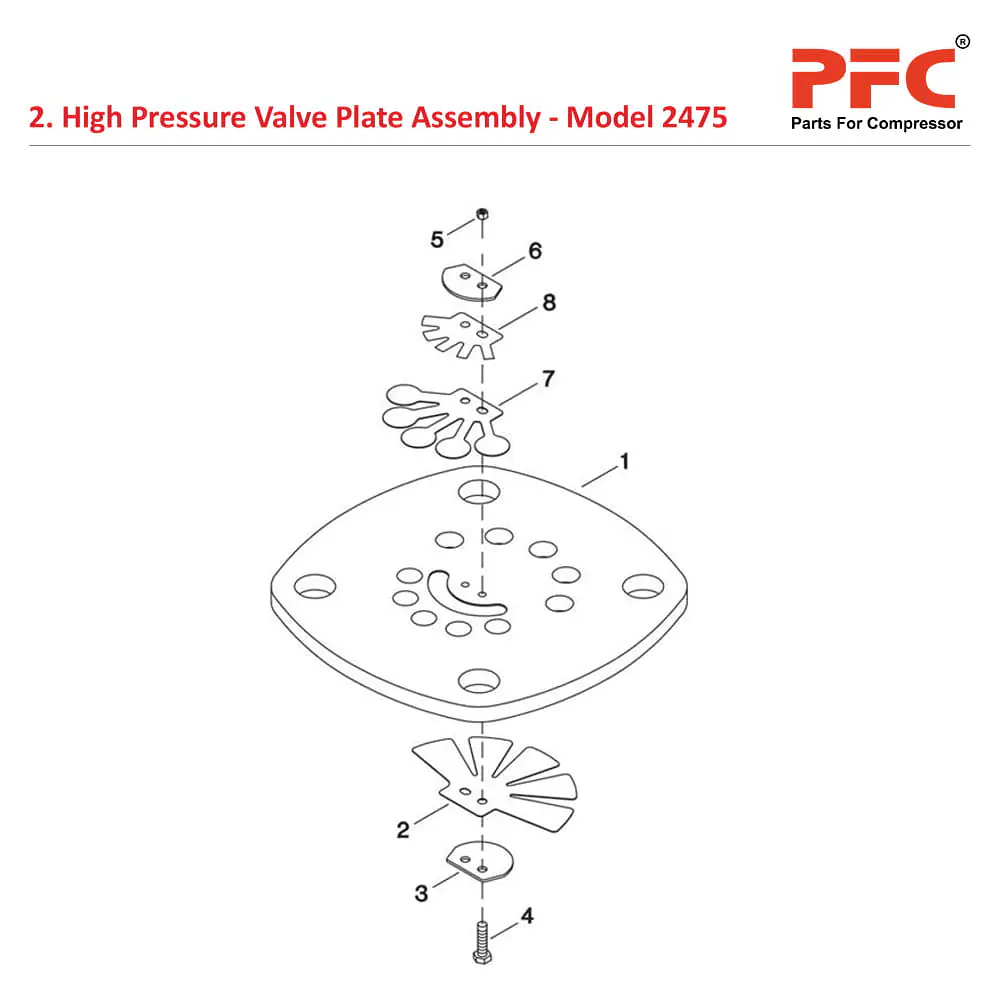

1. High Pressure Valve Plate Assembly
Sr.No | Ref. Part Number | Description |
REF. | 32310799 | Assembly, Valve Plate - High Pressure |
2-1 | NSS | * Plate, Valve - High Pressure |
2-2 | 32236671 | * Valve, Finger - Inlet |
2-3 | 32297343 | * Retainer, Valve HP |
2-4 | 32297327 | * Screw, Hex Head - M3 X 12 |
2-5 | 97511059 | * Nut, Hex - M3 with Lockwasher |
2-6 | 32295461 | * Retainer, Finger Valve - Discharge |
2-7 | 32241010 | * Valve, Finger - Discharge |
2-8 | 32295479 | * Valve, Damper - Discharge |
