Compl. Reel Replacement Parts

Vikay is a global supplier of new aftermarket replacement parts - Compl. Reel for Alimak Pneumatic Raise Climber from India.

View PDF

 Product

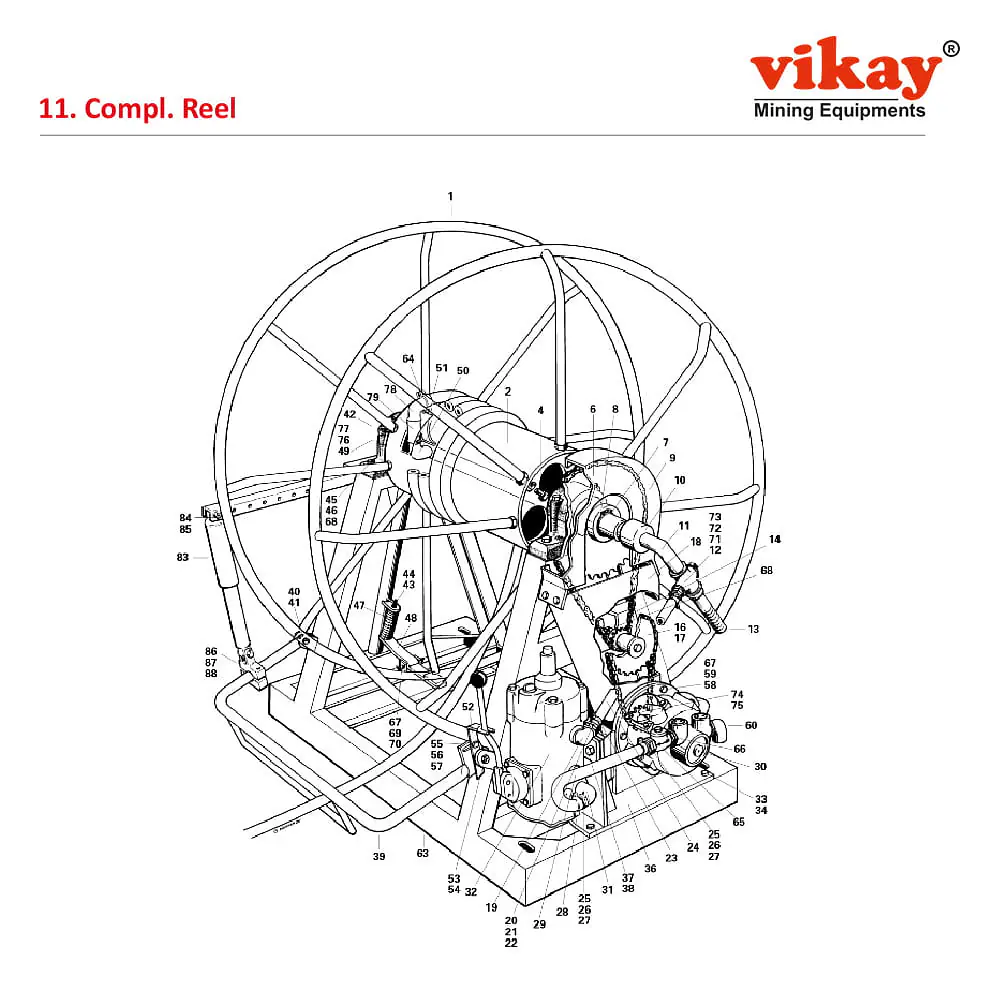

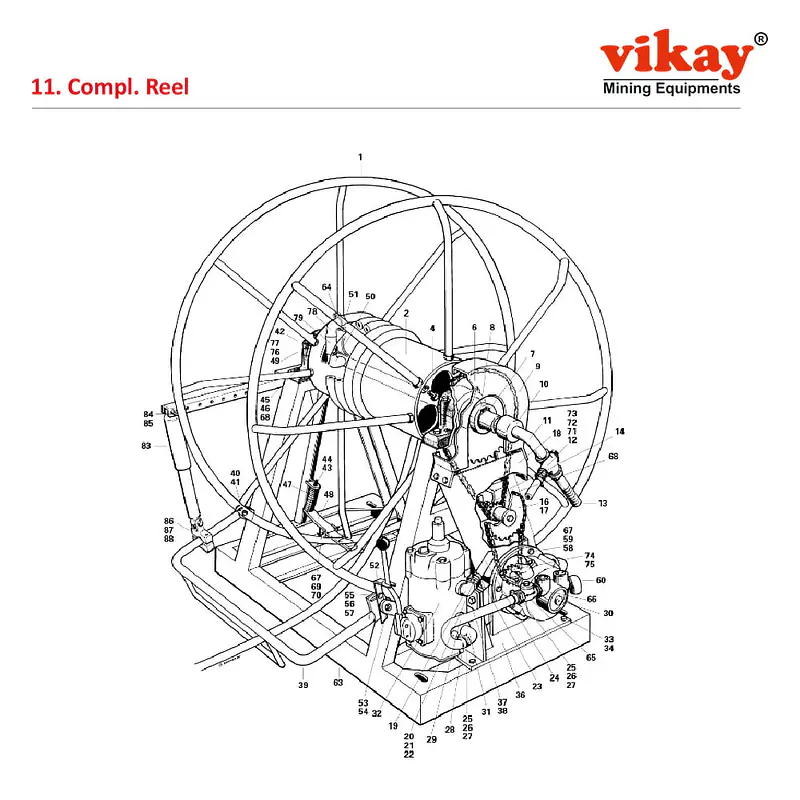

Compl. Reel

No. Description   Designation   Ref. Part No.
1 - 88 Compl. reel       0176099000
1 Gable       0218559000
2 Hose drum       0276620000
3
4 Screw   M6S 20x40-8.8-fz   3000071672
5
6 Chain wheel       0318555000
7 Flat key       3000742619
8 Groove ring   SgA 60   3000132147
9 Chain cover, upper       0276103000
10 Swivel coupling       0476025000
11 Pipe       3000838318
12 Cross pipe       3000839518
13 Hose nipple       0472488000
14 Chain w. lock       0486708000
15
16 Chain wheel       0375859000
17 Chain w. lock       0486709000
18 Chain cover, lower       0276104000
19 Angle       3000839216
20 Hexagon nipple       0415998000
21 Hose nipple       0416002000
22 Nut       0415997000
23 Hose clamp       3000931197
24 Hose       3000900406
25 Hexagon nipple       0415998000
26 Hose nipple       0416002000
27 Nut       0415997000
28 Hose clamp       3000931197
29 Hose       3000900406
30 Air motor(K-14S)       9013834103
31 Angle       3000839216
32 Control valve       0146066000
33 Screw   M6S 12x40-8.8-fz   3000071540
34 Lock nut   L-K M6M 12-8.-fz   3000438122
35
36 Motor and valve       0176101000
  plate
37 Screw   M6S 12x50-8.8-fz   3000071542
38 Lock nut   L-K M6M 12-8.-fz   3000438122
39 Control lever       0276102000
40 Screw   M6S 16x50-8.8-fz   3000071630
41 Lock nut   L-K M6M 16-8.-fz   3000438124
42 Plug       0476502000
43 Adjusting screw       0470827000
44 Nut   M6M 16-8.-fz   3000081124
45 Screw   M6S 16x70-8.8-fz   3000071634
46 Lock nut   L-K M6M 16-8.-fz   3000438124
47 Compression spring       0419089000
48 Breaking arm w.       0470619000
  lining
  Brake lining       0476574000
  Rivet   Alu F 6x16   3000506904
49 Bearing housing       3000130513
50 Angle       3000839218
51 Hose nipple   Ø40 mm   0419774000
  Hose nipple   Ø32 mm   0470790000
52 Control link       0476105000
53 Screw   M6S 16x65-8.8-fz   3000071633
54 Lock nut   L-K M6M 16-8.-fz   3000438124
55 Screw   M6S 8x40-8.8-fz   3000071459
56 Lock nut   L-K M6M 8-8.-fz   3000438118
57 Washer   BRB 8.4x16-fz   3000091165
58 Screw   M6S 12x60-8.8-fz   3000071544
59 Lock nut   L-K M6M 12-8.-fz   3000438122
60 Angle       3000839216
61 Screw   M6S 8x20-8.8-fz   3000071451
62 Lock nut   L-K M6M 8-8.-fz   3000438118
63 Frame       0176100000
64 Hose clamp       3000931198
65 Check valve       0476275000
66 Hexagon nipple       3000840116
67 Washer   BRB 13x24-fz   3000091178
68 Washer   BRB 17x30-fz   3000091186
69 Shaft       0470826000
70 Cotter pin   SP 3.2x30-fz   3000427185
71 Bushing       3000840325
72 Bushing       3000840323
73 Plug       3000840513
74 Chain wheel       0418951000
75 Groove ring   SgA 34   3000132132
76 Bearing       3000111213
77 Clamping socket       3000252213
78 Angle       3000839117
79 Nipple pipe       9056576000
80 Nipple       3000969177
81 Nut       3000970335
82 Nipple       3000969347
83 Shock absorber       3000724151
84 Screw   M6S 10x55-8.8-fz   3000071502
85 Lock nut   L-K M6M 10-8.-fz   3000438120
86 Bracket       0447519000
87 Clamp       0447521000
88 Screw   M6S 10x40-8.8-fz   3000071499
