DESCRIPTION
Complete Beam VK RRSUC-A Replacement Parts
Vikay is a global supplier of new aftermarket replacement parts - Complete Beam VK RRSUC-A for Alimak Pneumatic Raise Climber from India
Product
- Page 1

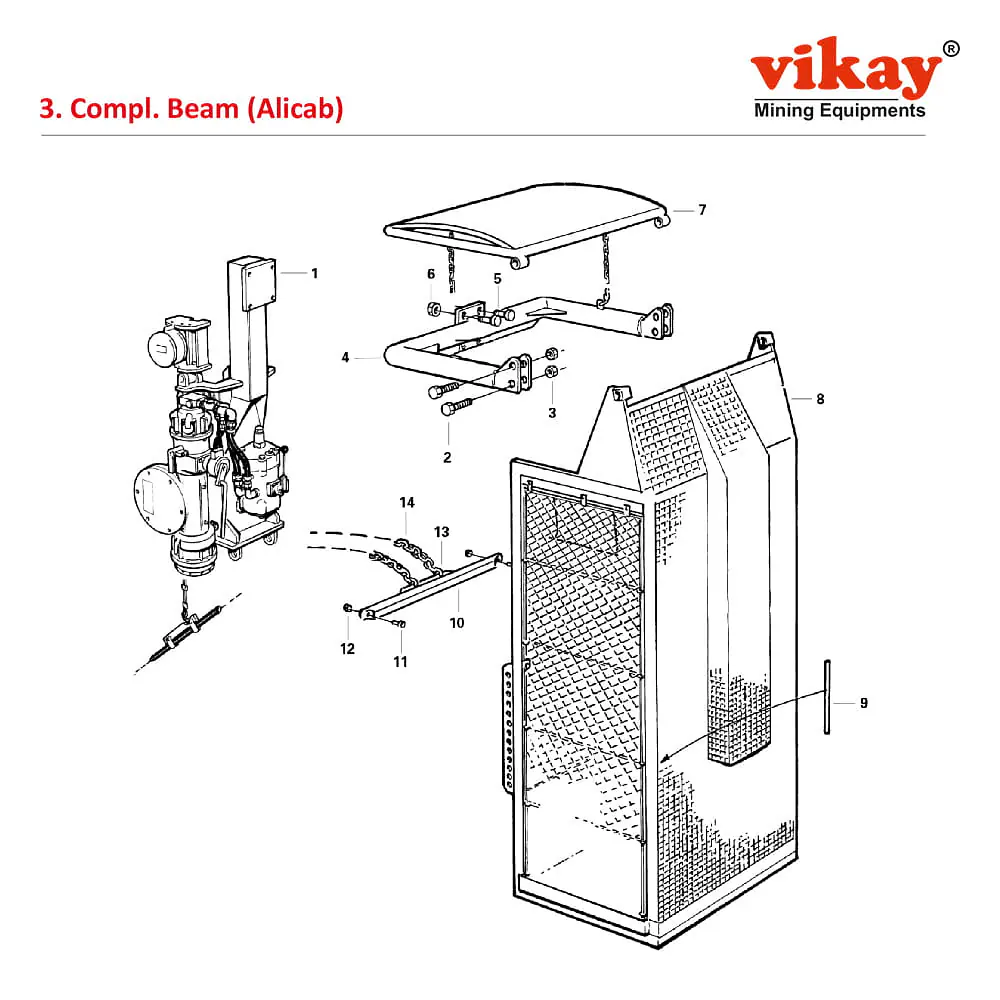

Complete Beam VK RRSUC-A
| No. | Description | Designation | Ref. Part No. | |
| Service Unit Complete With Cage | VK RRSUC-A | |||
| 10-14 | Compl. beam | 0474885000 | ||
| 1 | Machinery (Alicab) | 0174882000 | ||
| 2 | Screw | M6S 24x 100-8.8-fz | 3000071728 | |
| 3 | Nut | L-K M6M24-8.-fz | 3000438128 | |
| 4 | Pipe frame | 0274883000 | ||
| 5 | Screw | 3000071630 | ||
| 6 | Nut | M6S 16x50-8.8-fz | 3000438124 | |
| 7 | Roof | L-K M6M 16-8.-fz | 0274884000 | |
| 8 | Cage | 0273695000 | ||
| 9 | Hand lever | 0417396000 | ||
| 10 | Beam | 0488864000 | ||
| 11 | Screw | M6S 16x50-8.8-fz | 3000071507 | |
| 12 | Nut | L-K M6M 16-8.-fz | 3000438120 | |
| 13 | Link chain | 3000860105 | ||
| 14 | Chain | 3000308208 |
