DESCRIPTION
Assembly head Frame & Distance Piece For Ingersoll Rand - Model 7 x 5 NL
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for Assembly head Frame & Distance Piece For Ingersoll Rand - Model 7 x 5 NL from India
Â
⇩ Product
- Page 1

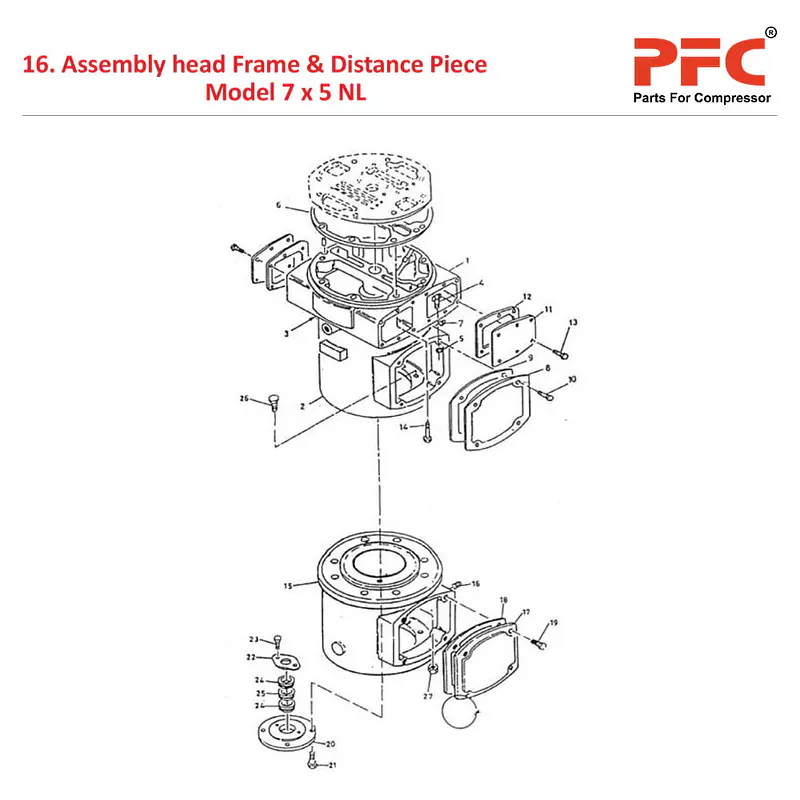

ASSEMBLY HEAD FRAME & DIST. PIECE
| S.No | Description | Ref Part Nos |
| 1 | HEAD FRAME | 42002816 |
| 2 | DISTANCE PIECE | 42003145 |
| 3 | GASKET DISTANCE PIECE | 40514507 |
| 4 | STUD 3/4" X 3-1/4" | 95737417 |
| 5 | NUT HEX 3/4" | 95077822 |
| 6 | GASKET FRAME HEAD | 39542113 |
| 7 | PLUG PIPE SQ. HD 1/4" | 95033593 |
| 8 | COVER DISTANCE PIECE | 30184261 |
| 9 | GASKET COVER DISTANCE PIECE | 30562698 |
| 10 | SCREW CAP HEX 1/2" X 1" | 95104147 |
| 11 | COVERÂ VALVE | 37087954 |
| 12 | GASKET COVER | 39486030 |
| 13 | SCREW CAP HEX 1/2" X 1" | 95104147 |
| 14 | SCREW CAP FRAME HEAD 5/8" X 2-3/4" | 30556963 |
| 15 | DISTANCE PIECE | 30747570 |
| 16 | PLUG PIPE SQ. HD 3/8" | 95033601 |
| 17 | COVER DISTANCE PIECE | 30184261 |
| 18 | GASKET COVER DISTANCE PIECE | 30562698 |
| 19 | SCREW CAP HEX 1/2" X 1" | 95104147 |
| 20 | STUFFING BOXÂ | 37085925 |
| 21 | SCREW CAP HEX 3/8" X 1" | 95035333 |
| 22 | PLATE PARTITION SCRPR | 37087970 |
| 23 | SCREW CAP HEX HEAD 3/8" X 3/4" | 95103743IM |
| 24 | RING SCRAPPER | 95009189IM |
| 25 | RING SCRAPPER | 95018487IM |
| 26 | SCREW CAP HEX HEAD 5/8" X 2-3/4" | 95104451 |
| 27 | NUT HEX 5/8" | 95077814 |
