DESCRIPTION
Assembly head Frame & Distance Piece For Ingersoll Rand - Model 8 x 5 NL
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for Assembly head Frame & Distance Piece For Ingersoll Rand - Model 8 x 5 NL from India.

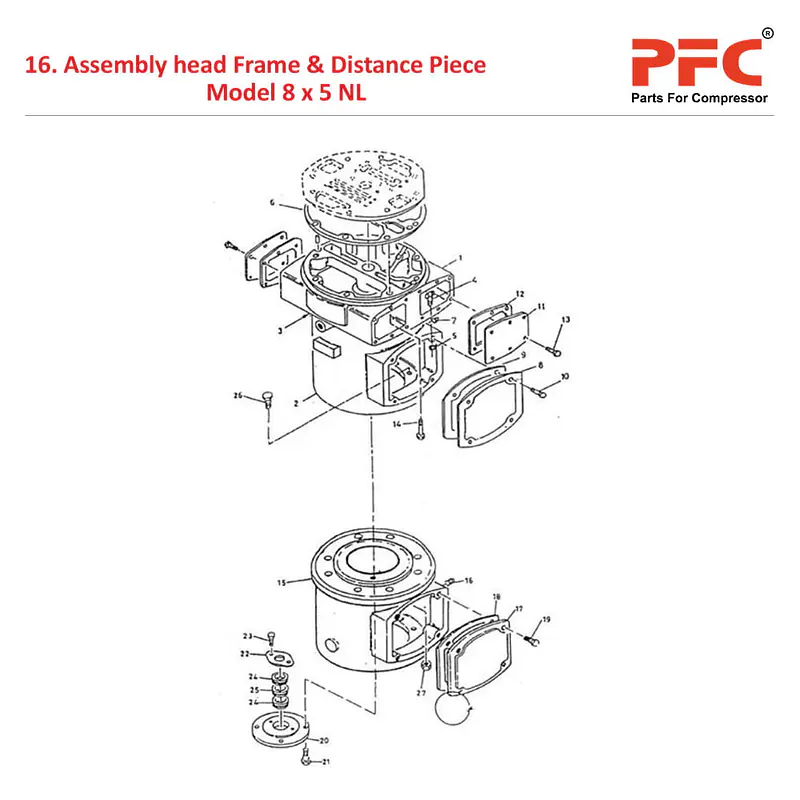

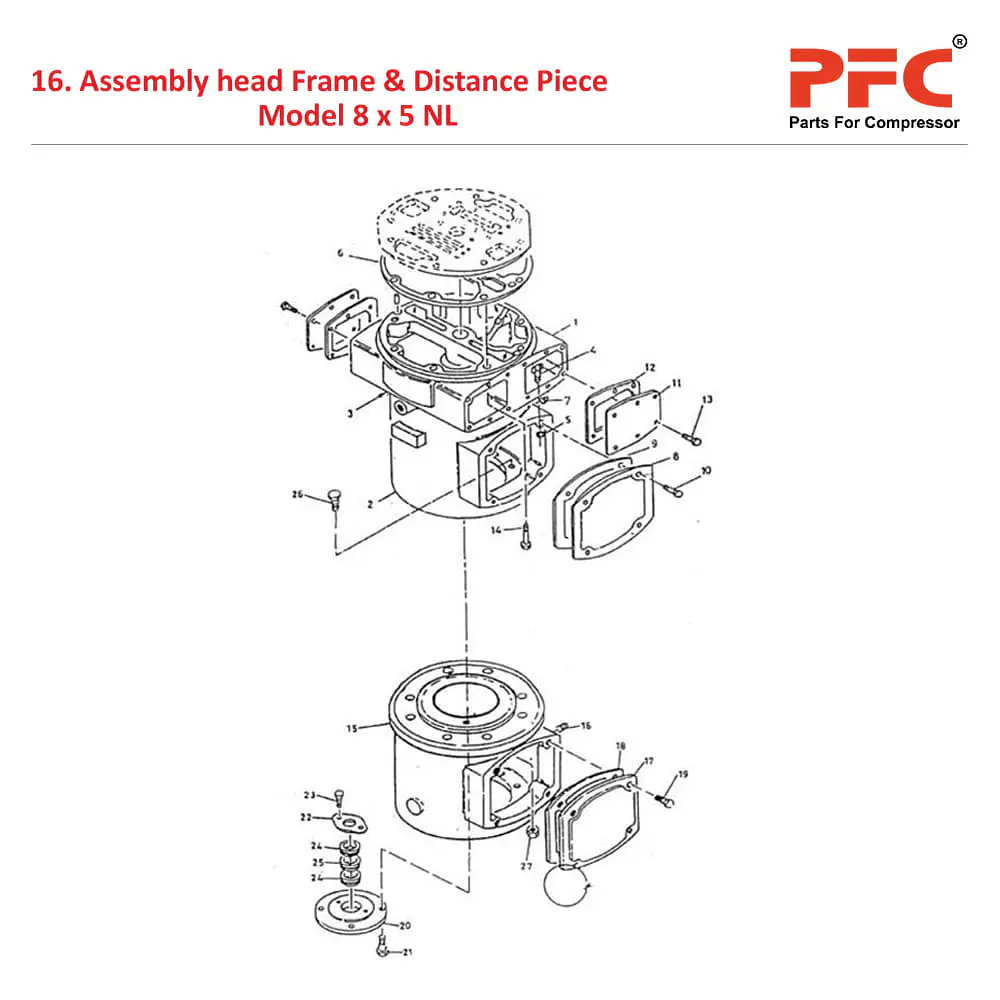

ASSEMBLY HEAD FRAME & DIST. PIECE
| S.No | Description | Ref Part Nos | Qty |
| – | Assembly Head Frame & Dist. Piece | 70426358 | – |
| 1 | – Head Frame | 42002816 | 1 |
| 2 | – Distance Piece | 42003145 | 1 |
| 3 | – Gasket Distance Piece | 40514507 | 1 |
| 4 | – Stud 3/4" X 3-1/4" | 95737417 | 8 |
| 5 | – Nut Hex 3/4" | 95077822 | 8 |
| 6 | – Gasket Frame Head | 39542113 | 1 |
| 7 | – Plug Pipe Sq. Hd 1/4" | 95033593 | 2 |
| 8 | – Cover Distance Piece | 30184261 | 1 |
| 9 | – Gasket Cover Distance Piece | 30562698 | 1 |
| 10 | – Screw Cap Hex 1/2" X 1" | 95104147 | 4 |
| 11 | – Cover Valve | 37087954 | 4 |
| 12 | – Gasket Cover | 39486030 | 4 |
| 13 | – Screw Cap Hex 1/2" X 1" | 95104147 | 24 |
| 14 | – Screw Cap Frame Head 5/8" X 2-3/4" | 30556963 | 8 |
| 15 | – Distance Piece | 30747570 | 1 |
| 16 | – Plug Pipe Sq. Hd 3/8" | 95033601 | 2 |
| 17 | – Cover Distance Piece | 30184261 | 1 |
| 18 | – Gasket Cover Distance Piece | 30562698 | 1 |
| 19 | – Screw Cap Hex 1/2" X 1" | 95104147 | 4 |
| 20 | – Stuffing Box | 37085925 | 1 |
| 21 | – Screw Cap Hex 3/8" X 1" | 95035333 | 4 |
| 22 | – Plate Partition Scrpr | 37087970 | 1 |
| 23 | – Screw Cap Hex Head 3/8" X 3/4" | 95103743IM | 2 |
| 24 | – Ring Scrapper | 95009189IM | 2 |
| 25 | – Ring Scrapper | 95018487IM | 1 |
| 26 | – Screw Cap Hex Head 5/8" X 2-3/4" | 95104451 | 8 |
| 27 | – Nut Hex 5/8" | 95077814 | 8 |
